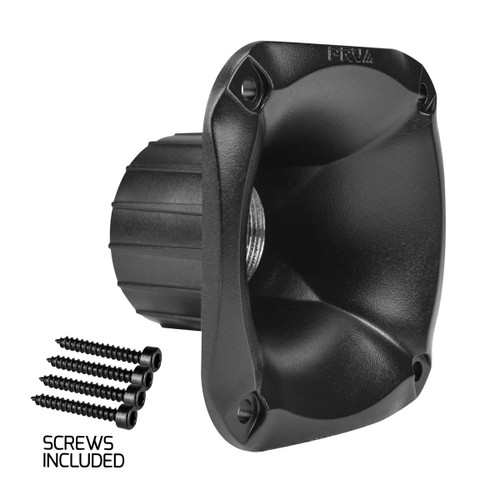

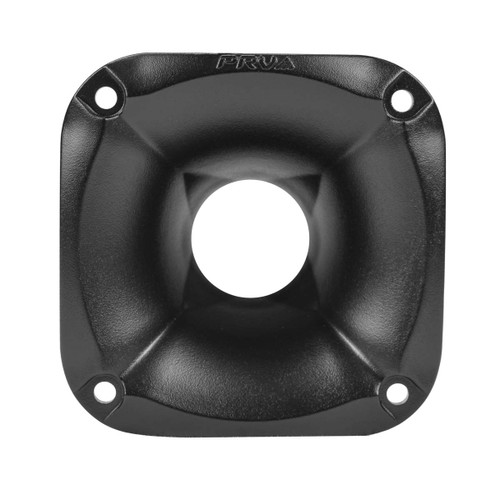

About: PRV Audio WG08-25 1" Exit Mini Waveguide

Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72″ of depth, this horn makes installation easy in tight spaces. A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.

Product Highlights:

• Its slim mounting depth of 1.72″, with an ultra small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
• Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it.
• Its 90° x 90° dispersion pattern is ideal for short throw applications
• Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
• Recommended minimum crossover frequency of 1,600 Hz
• Includes 4x screws

Specifications:

• Throat Diameter: 1” (25.4mm)
• Mounting Type: Screw-on
• Thread dimensions: 1-3/8″
• Nominal Coverage:
• Horizontal: 90°
• Vertical: 90°
• Flare Type: Exponential
• Material: Plastic (ABS)
• Finish / Coating: Black
• Dimensions:
• Height: 3.31″ (84mm)
• Width: 3.31″ (84mm)
• Depth: 1.95″ (49.5mm)
• Mount Depth: 1.72″ (43.5mm)
• Baffle Cutout:
• Width: 2.80″ (71mm)
• Height: 3.31″ (84mm)
• Net Weight: 0.13lb (0.06kg)
