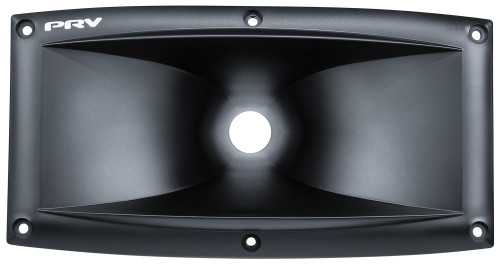

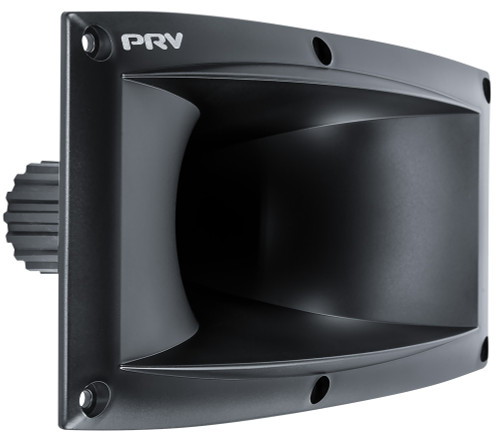

About: PRV Audio WG23-25 1" 100 x 40 Waveguide

Use the PRV Audio WG23-25 exponential horn to create small high efficiency speakers with 1-3/8"-18 TPI screw-on compression drivers. 100° x 40° coverage is perfect for speakers requiring increased horizontal dispersion and reduced vertical dispersion.

PRV Audio's WG23-25 100° x 40° exponential horn is designed to project an expanded horizontal dispersion while also reducing floor and ceiling bounce. This horn is constructed of durable ABS plastic to keep cabinets as light as possible for easy transport. The standard 1-3/8"-18 TPI threading is compatible with many 1" compression drivers. Acoustic loading is maintained down to 600 Hz.

Product Highlights:

  • 100° x 40° dispersion pattern for wide horizontal dispersion
  • Acoustically loads compression drivers down to 600 Hz
  • Lightweight ABS construction with exponential flare
  • 1" throat diameter with 1-3/8"-18 TPI threads

Specifications:

  • Throat Diameter: 1" (25.4 mm)
  • Mounting Type: Screw-On
  • Thread Dimensions: 1-3/8"
  • Nominal Coverage: Horizontal 100°, Vertical 40°
  • Flare Type: Exponential
  • Material: Plastic (ABS)
  • Finish/Coating: Black
  • Height: 10.0" (254 mm)
  • Width: 5.30" (134 mm)
  • Depth: 5.67" (144 mm)
  • Mount Depth: 4.84" (123 mm)
  • Baffle Cutout:
    • Width 7.50" (190 mm)
    • Height 3.50" (89 mm)
  • Net Weight: 0.37 Lbs (1.17 kg)
  • Sold Individually
