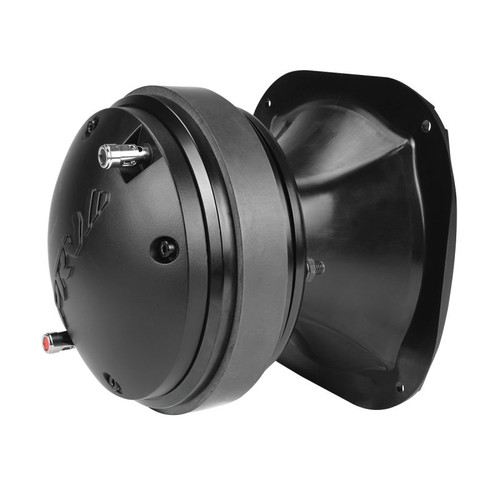

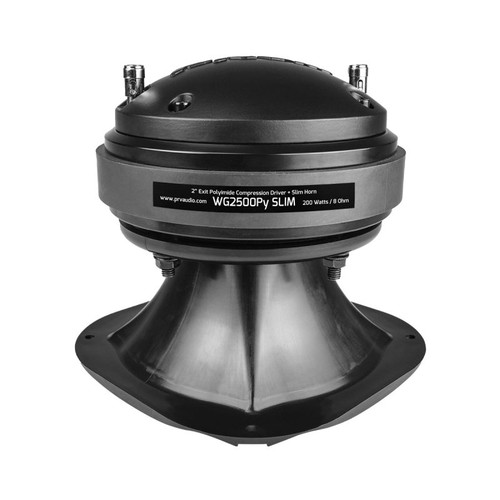

About: PRV Audio WG2500Py SLIM 2" Exit Compression Driver + Horn - 8 Ohm

Product Highlights:

• Polyimide diaphragm with large 2.5″ Voice Coil, providing dynamic output along with excellent efficiency – 107 dB Sensitivity
• High Frequency 2″ Exit Driver + Shallow Horn WGP14-50X – Perfect as compression driver for car audio
• Crystal clear natural sound with wider response from 800 to 17,000 Hz
• PRO Audio horn driver, able to handle 200 Watts Continuous Program Power (RMS) with music
• Compact driver mounted on slim horn, ideal for tight spaces, increase sound output on your system with this slim solution. Great choice for custom car audio door panels

Specifications:

• Exit Throat Diameter: 2” (50 mm)
• Nominal impedance: 8 Ohms
• Power Handling:
• Nominal Power Handling: 100 Watts
• Continuous Program Power (RMS): 200 Watts
• Max Peak Power: 400 Watts
• Sensitivity 2.83V at 1m: 107 dB
• Recommended Hi Pass X-Over: 900 Hz (12 dB/Octave)
• Frequency Response at -10dB: 800 – 17,000 Hz
• Voice Coil Diameter: 2.5″ (63.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Polyamide
• Flux Density: 1.87 T
• Magnet Material: Ferrite

Mounting and Shipping Information

• Overall Depth: 5.77” (146.5 mm)
• Mounting Depth: 5.45” (138.5 mm)
• Overall Width: 6.14” (156 mm)
• Overall Height: 6.14” (156 mm)
• Baffle Cutout Diameter: 5.75” (146 mm)
• Weight: 7.72 lbs (3.50 kg)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
