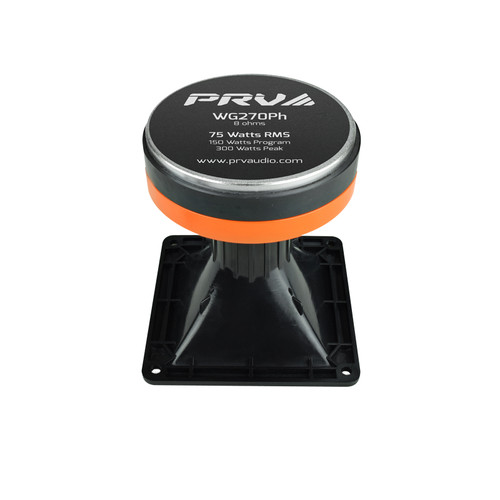

About: PRV Audio WG270Ph 1" Compact 1" Phenolic Compression Driver + Horn - Combo

New addition to the 1” Exit phenolic family, the WG270Ph pairs the new and improved D270Ph-S 1″ exit phenolic driver with the WG11-25 compact 60° x 60° exponential horn. This combo is all about high output, low distortion vocal reproduction all the way down to 500 Hz and is the perfect solution for use in high output PA and PRO audio on wheels systems.

High temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The nearly indestructible phenolic diaphragm, that can play down to 500 Hz, ( RPD270Ph ) is built to resist the elements, perfect for outdoor use.

Compact driver design for easy front mount installation. Based on the design of our D250Ph-S this more compact driver was created to supply the demand in the market. The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn.

Designed to reproduce the all-important vocal range with authority! This mid range compression driver and horn is a great choice for high power public address (PA) Systems small venues and gymnasiums. Car audio SPL enthusiasts use this combo for vocal reinforcement on 3 way systems.

Product Highlights:

Phenolic diaphragm provides extreme clarity in the critical mid or vocal range
Compact driver design for easy front mount installation
Ideal horn and driver combo for mid range and vocal reinforcement
Compact horn size is perfect for conditions where space is a concern

Specifications:

Exit Throat Diameter: 1” (25.4mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 75 Watts
Program Power: 150 Watts
Sensitivity 2.83V at 1m: 106.5 dB
Recommended Hi Pass X-Over: 500 Hz (12 dB/Octave)
Frequency Response at -10dB: 600 – 8,000 Hz
Voice Coil Diameter: 2″ (50 mm)
Voice Coil Wire: Copper
Voice Coil Former Material: Kapton
Diaphragm Material: Phenolic
Flux Density: 1.10 T
Magnet Material: Ferrite
Sold Individually

Mounting and Shipping Information:

Overall Depth: 5.00” (127 mm)
Mounting Depth: 4.72” (120 mm)
Overall Width: 4.43” (115 mm)
Overall Height: 4.43” (115 mm)
Baffle Cutout Diameter: 4.01” (102 mm)
Weight: 2.69 lbs (1.22 kg)
Replacement Diaphragm: RPD270Ph
