Descriptions

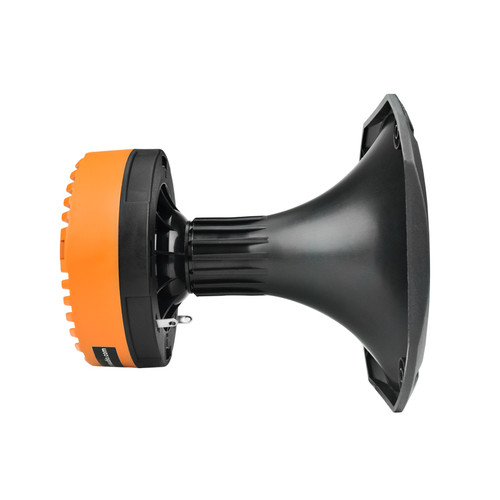

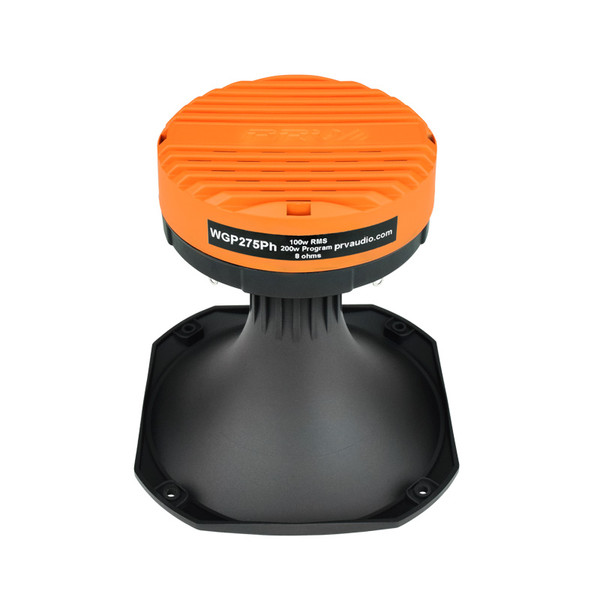

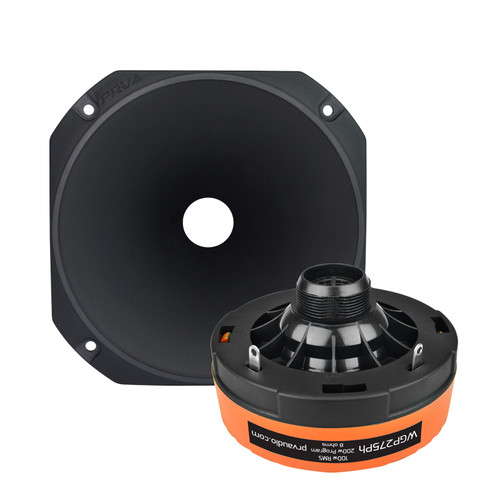

About: PRV Audio WGP275PH 1" Exit Phenolic Compression Driver + Horn Combo - 8 Ohm

This powerful 1” Exit Phenolic horn driver, the WGP275Ph-S is all about midrange vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that are designed to reproduce the all-important vocal range with authority! Featuring our powerful D275Ph-S + High Output 1” Screw-on Horn from the WGP14-25 Series , creating a simple solution for stuntwalls with a smaller diameter driver allows front mounting, making it easy to install. TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction. The phenolic diaphragm is attached to a 2″ diameter copper wire with Kapton® former for a high 200 Watts RMS musical power handling, when used with recommended HPF.

Product Highlights:

• High Temperature copper voice coil and phenolic diaphragm for natural response
• Designed for midrange and vocals from 500 to 6,500 Hz
• High Output – 107 dB sensitivity
• Ideal horn and driver combo for mid range and vocal reinforcement
• The large 2 inch voice coil can handle up to 200 watts of musical power.

Specifications:

• Exit Throat Diameter: 1" (25.4 mm)
• Nominal Impedance: 8 Ohms

• Nominal Power Handling: 100 Watts

• Continuous Program Power (RMS): 200 Watts
• Peak Power: 400 Watts
• Sensitivity 2.83V at 1m: 106 dB
• Frequency Response at -10dB: 500-6500 Hz
• Voice Coil Diameter: 2" (51 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Material: Phenolic Resin
• Flux Density:1.1 T
• Magnet Material: Ferrite

Mounting and Shipping Information:

• Overall Depth; 6.53" (166 mm)
• Mounting Depth: 6.14" (156 mm)
• Overall Width: 6.17" (154.7 mm)
• Overall Height: 6.17" (154.7 mm)
• Net Weight: 2.24 Lbs (1.2 kg)
• Shipping Weight: 2.47 Lbs (1.12 kg)
• Replacement Diaphragm: RPD275Ph
