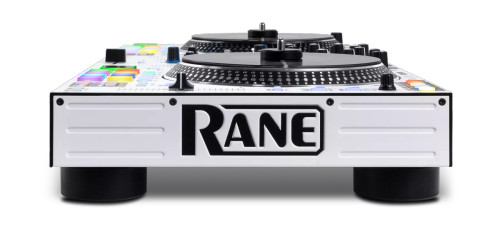

About: Rane DJ ONE MKII Professional Motorized DJ Controller

Designed with the legendary build quality and performance-focused layout that made the original RANE ONE a favorite for open-format and turntablist DJs worldwide, the MKII introduces greater creative control, next-gen Stems functionality, dynamic internal FX, and more—now with a sleek new aesthetic.

Authentic Turntable Feel

Designed for open-format DJs who need flexibility and control, the RANE ONE MKII features dual motorized 7.2” platters with adjustable torque settings for an authentic vinyl-style feel. Classic plunger start/stop buttons add a tactile, hands-on touch to your flow.

Powerful Stems Integration

The RANE ONE MKII unlocks the powerful Serato DJ Pro software, effortlessly expanding how Stems can be incorporated into your live set. With dedicated Acapella/Instrumental buttons, intuitive Stems Level Control, and versatile performance pad modes like Stem FX and Stem Roll, you can isolate, manipulate, and remix individual elements of any track in real time.

Dynamic Internal FX Suite

Tap into an extensive palette of sonic styles—from subtle enhancements to transformative soundscapes. RANE ONE MKII has 29 meticulously crafted internal effects with OLED display, Channel FX via dedicated Filter knobs, plus Serato DJ software FX capabilities for dynamic transitions and sounds.

Captivating RGB Performance Pads

Enhance your performance and overall stage presence with 16 multi-color backlit pads—eight per deck. Each offers 10 performance modes for dynamic triggering, sampling, and effects—plus Split Pad Mode for access to two different modes on each deck.

Flexible Secondary Pad Buttons

Quickly access an additional pad mode with dedicated secondary buttons above the platter, streamlining performance workflows and unlocking greater creative freedom without sacrificing simplicity.

Deep Channel FX Capabilities

The Filter knob on each RANE ONE MKII deck can access four different Channel FX. This is designed to give you hands-on control of the Filter, Filter Roll, Flanger, and Noise FX.

Faders Made for Smooth Mixes

Experience a new level of tactile precision with ultra-smooth, accurate, and tension-adjustable control. RANE ONE MKII's PRECISION FEEL channel faders with Contour knob and Reversal switches are durably designed and made for mixing.

Ultra-Light Precision for Scratch DJing

The MAG FOUR crossfader is built with scratch DJs in mind. Our lightest and smoothest fader ever, the MAG FOUR gives you swift and precise control over your cuts, with onboard cut-in adjustment, dedicated curve knob, and reverse switch.

Specifications:

• Digital Audio
• Converters: Cirrus Logic, 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, floating point, double precision
• Dynamic Range (A-weighted, unity gain):
• ADC: 113 dB
• DAC: 113 dB
• CD Input to Analog Output: 110 dB
• CD Input to USB Output: 113 dB
• USB Input to Analog Output: 113 dB
• Inputs
• Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable)
• Analog Gain: 25 dB
• Maximum Input: 110 mV
• Gain Trim: Off to +26 dB (unity at center)
• Tone Control: 2-band
• Aux Input (RCA stereo pair)
• Maximum Input: 4 Vrms
• Dynamic Range (A-weighted): 114 dB
• Gain Trim: Off to +12 dB
• Tone Control: 2-band
• CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
• CD
• Maximum Input: 4 Vrms
• Gain Trim: Off to +12 dB
• Tone Control: 3-band, full-cut to +10 dB
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Phono
• RIAA Curve: +/- 0.25 dB
• Gain (@ 1 kHz): 31.5 dB
• Maximum Input (@ 1 kHz): 106 mV
• Dynamic Range (A-weighted): 102 dB
• Outputs
• Main Outputs (XLR)
• Gain Trim: Off to 0 dB
• Maximum Output: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: Flat
• Booth Outputs (XLR)
• Gain Trim: Off to 0 dB
• Maximum Output: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: Flat
• Master Outputs (RCA stereo pair)
• Maximum Output: 4 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: Flat
• Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS)
• Maximum Output Voltage: 4 Vrms (no load)
• Output Power: 50 mW (50 ohms)
• Dynamic Range (A-weighted): 108 dB
• Pads
• 16x multi-color back-lit pads (8 per deck, 10 modes each)
• Secondary performance pad buttons with 8 pad modes
• Faders
• (1) MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
• (2) PRECISION FEEL tension-adjustable faders with Contour knob and Reversal switches

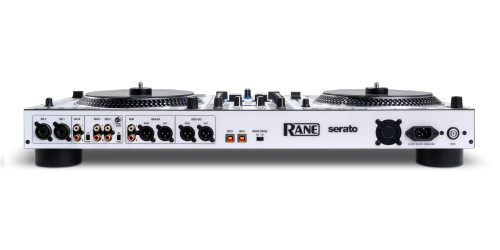

• Connectors
• (2) XLR outputs (Main)
• (2) XLR outputs (Booth)
• (1) RCA stereo output pair (Master)
• (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1-2)
• (2) RCA stereo input pairs (Deck 1-2)
• (1) RCA stereo input pair (Aux)
• (1) 1/4" (6.35 mm) TRS output (Headphones)
• (1) 1/8" (3.5 mm) TRS output (Headphones)
• (2) USB Type-B ports
• (1) IEC power cable input
• Power
• Connection: IEC
• Voltage: 100240V, 50/60 Hz
• Consumption: 50 W
