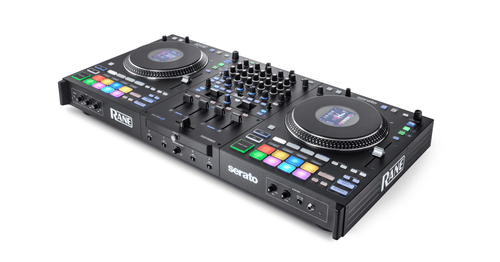

About: Rane PERFORMER Professional 4-Channel Motorized DJ Controller

The RANE PERFORMER is the only 4-channel motorized DJ controller built to RANE’s rigorous standards. The PERFORMER earns the namesake from the talented professional artists that put this controller to work, making good use of the PRECISION FEEL FADERS, MAG FOUR crossfader, and industry-leading sound quality.

Familiar Feel

The PERFORMER boasts 7” high torque die-cast aluminum platters with acrylic discs that respond just like vinyl.

Precision Feel Faders

Adjustable volume faders utilize the same dual rail mechanical system of the MAG FOUR, making them smooth, light, and extremely rugged.

Advanced STEMS Control

Four unique options for controlling stems, the PERFORMER sets the standard for creative open format DJing. Advanced Stems control features including STEM-SPLIT, STEM LEVEL, STEM Pad Mode, and instant Acapella/Instrumental buttons.

Dynamic FX Engine

Dynamic internal FX engine with 29 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ software FX.

Wheel Display

3.5" wheel displays with multiple waveform and library views plus Day Mode.

MAG FOUR Crossfader

MAG FOUR crossfader with external tension adjustment knob

Performance Pads

16 Performance Pads with dedicated OLED Pad Mode displays for visual feedback.

Features:

• Platters: High-torque motorized aluminum platters with magnetic acrylic vinyl-feel top platters
• Faders: 4-channel mixer section with 4 dual-rail, magnetic tension adjustable precision feel faders
• Stems: Advanced stems control features including stem-split, stem level, stem pad mode, and instant acapella/instrumental buttons
• FX Engine: Dynamic internal FX engine with 29 main FX, 4 knob-controlled channel FX and access to Serato DJ software FX
• Wheel Displays: 3.5” wheel displays with multiple waveform and library views plus day mode
• Crossfader: MAG Four crossfader with external tension adjustment knob
• Pads: 16 Performance pads with dedicated OLED pad mode displays for visual feedback
• Decks: Deck selection buttons for mixing with up to 4 software decks
• USB: Dual-USB for seamless DJ transitions
• Outputs: XLR and RCA main our, ¼” booth/zone out, and stereo/mono switch
• Inputs: 2 line/phone inputs for turntables or external decks and 2 XLR ¼ combo jack microphones inputs
• Quality: Trusted RANE build and no-compromise sound quality

Specifications:

• Digital Audio:
• Converters: Cirrus Logic, 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, Floating Point, Double precision
• Connections:
• (2) XLR outputs (Main)
• (2) 1/4” outputs (Booth)
• (1) RCA stereo output pair (Main)
• (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
• (2) RCA stereo input pairs (Deck 3-4)
• (1) 1/4” (6.35 mm) TRS output (Headphones)
• (1) 1/8” (3.5 mm) TRS output (Headphones)
• (2) USB Type-B ports
• (1) IEC power cable input
• Dimensions (W x D x H): 30.84” x 15.84 x 4.32” (78.33 x 40.23 x 10.97 cm)
• Weight: 28.20 lbs. (12.79 kg)

Audio Outputs:

• Main Outputs (XLR):
• Gain Trim:  Off to 0 dB
• Maximum Output: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: : Flat - 20-20kHz
• Main Outputs (RCA stereo pair):
• Maximum Output: 4 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: Flat - 20-20kHz
• Booth Outputs (1/4”):
• Gain Trim: Off to 0 dB
• Maximum Output: 8 Vrms
• THD+N (20 kHz BW @ 1 kHz): 0.004%
• Frequency Response: Flat - 20-20kHz
• Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS):
• Maximum Output: 4 Vrms Voltage: (no load)
• Output Power: 50 mW (50 ohms)
• Dynamic Range (A-weighted): 108 dB
• Audio Inputs Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS):
• Analog Gain: 25 dB
• Maximum Input: 110 mV
• Gain Trim: Off to +26 dB (unity at center)
• Tone Control: 2-band
• Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
• Line Maximum Input: 4 Vrms
• Line Gain Trim: Off to +12 dB
• Line Tone Control: 3-band, full-cut to +10 dB
• THD+N (20 kHz BW @ 1 kHz: 0.004%
• Phono (RIAA) RIAA Curve: +/-0.25 dB
• Phono (RIAA) Gain (@ 1 kHz): 31.5 dB
• Phono (RIAA) Maximum Input (@ 1 kHz): 106 mV
• Phono (RIAA) Dynamic Range (A-weighted): 102 dB
• Pads: (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
• Wheel Displays: (2) 3.5” Color LCDs
• Pad & FX Displays: (9) 128 x 32 Monochrome OLEDs
• Faders
• (1) MAG FOUR tension-adjustable crossfader with contour
• (4) Precision Feel Faders (channel faders)
• Power:
• Connection: IEC
• Voltage: 100–240 V, 50/60 Hz
• Consumption: 150 W
