Descriptions

About: Rockford Fosgate 6"x9" Saddlebag Kit for Select 2014-Up Harley-Davidson Motorcycles

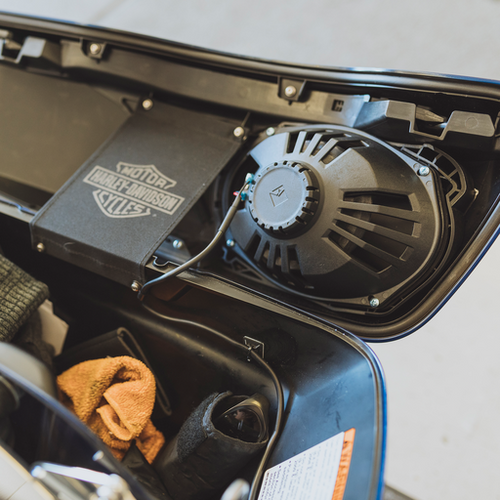

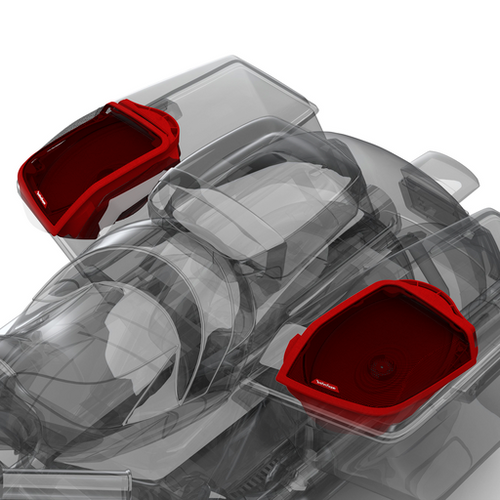

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles. You will need to flash your factory radio to use this kit. Not designed for factory amplifiers.

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier.  Not designed for factory amplifiers.

Features:

• Designed for use with existing 2014+ Rockford Fosgate Stage kits
• Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
• Includes all Installation Hardware and Accessories
• Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
• TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter

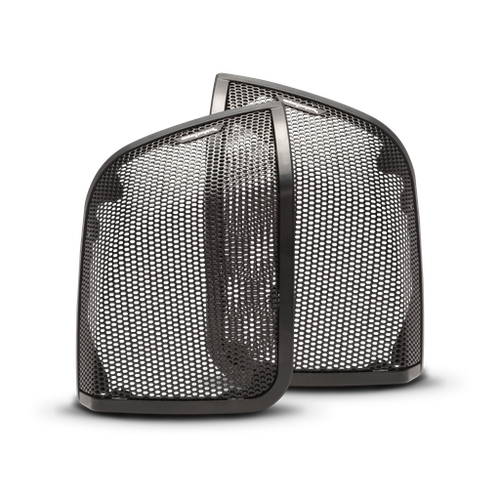

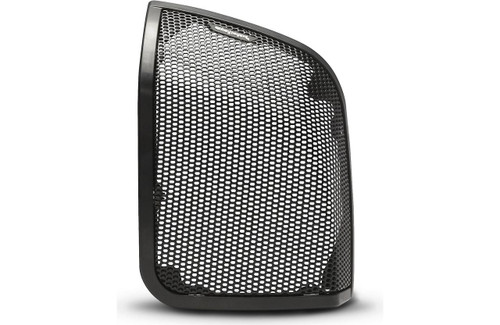

• Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
• Sandwich Clamping Gasket Design for Environmental Seal
• Includes Custom Cut Out Guide
• Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
• Leave 2" minimum clearance under speaker magnet when packing bags
• Ultra‐High Temperature Glass Reinforced Polymer Frame

Specifications:

• Compatible with 2014-up Harley-Davidson factory bag lids
• Designed for use with existing HD14-TKIT audio systems
• Direct connect wiring harness
• Includes all installation hardware, grilles, and accessories

Speaker Info:

• 6"x9" full-range motorcycle speakers
• Designed for bag lid locations
• Element-Ready design is weather and water resistant
• Carbon-fiber reinforced polypropylene cone
• Glass-reinforced polymer frame
• 1" film dome tweeter with integrated phase plug and ASA grill
• Integrated 6 dB crossover with polyester capacitor
• Element-Ready design is weather and water resistant
• Santoprene VAST surround (creates more cone space for bigger sound)
• Handles up to 100 watts RMS (200 watts peak)
• Frequency response: 56-20,000 Hz
• Sensitivity: 89 dB
• Impedance: 4 ohms

Vehicle Application:

Harley-Davidson Road King (The TMS69BL14 kit requires the RFK-HDRKM5 on these models)

• CVO Road King (FLHRSE): 2014
• Electra Glide Highway King (FLHFB): 2023
• Road King (FLHR): 2015 - 2022
• Road King Special (FLHRXS): 2017 - 2024

Harley-Davidson Touring

• Electra Glide Revival (FLH): 2021 & 2023
• Road Glide (FLTRX): 2015 - 2023
• Road Glide ST (FLTRXST): 2022 - 2023
• Road Glide Special (FLTRXS): 2015 - 2023
• Road Glide Special 120th Anniversary (FLTRXSANV): 2023
• Street Glide (FLHX): 2014 - 2023
• Street Glide ST (FLHXST): 2022 - 2023
• Street Glide 115th Anniversary (FLHXANV): 2018
• Street Glide Special (FLHXS): 2014 - 2023
• Street Glide Special 115th Anniversary (FLHXSANV): 2018
• Street Glide Special 120th Anniversary (FLHXSANV): 2023

Harley-Davidson CVO (The HD14CVO-STG2 is better equipped for these models)

• CVO Ultra Limited (FLHTKSE): 2014 - 2021
• CVO Limited 115th Anniversary (FLHTKSEANV): 2018
• CVO Road Glide Ultra (FLTRUSE): 2015 - 2016

Harley-Davidson Ultra (The HD14U-STG2 is better equipped for these models)

• Road Glide Limited (FLTRK): 2020 - 2024
• Road Glide Ultra (FLTRU): 2016 - 2019
• Electra Glide Ultra Classic (FLHTCU): 2014 - 2019
• Electra Glide Ultra Classic Twin-Cooled (FLHTCU): 2014 - 2016
• Electra Glide Ultra Classic Low (FLHTCUL): 2015 - 2016
• Electra Glide Ultra Classic Low Twin-Cooled (FLHTCUL): 2015 - 2016
• Ultra Limited (FLHTK): 2014 - 2024
• Ultra Limited 115th Anniversary (FLHTKANV): 2018
• Ultra Limited 120th Anniversary (FLHTKANV): 2023
• Ultra Limited Low (FLHTKL): 2015 - 2019
• Ultra Limited Shrine Edition (FLHTK): 2017 - 2023

What's in the Box:

• (2) TMS69 Speakers
• (2) Speaker Grilles
• (2) 6"x9" Basket Protectors
• (2) Mounting Rings
• (2) Cutting Templates
• (1) Main Harness
• (2) Saddlebag Harnesses
• Plastic Wire Tie Wraps
• Plastic Cable Tie Mounts
• (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
• (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
