Descriptions

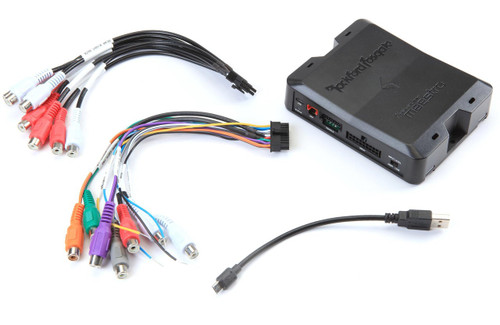

About: Rockford Fosgate DSR1 8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module

Universal DSP and amplifier replacement interface. Maestro DSR1 adds digital signal processing to most aftermarket amplifiers. Combines legendary Rockford Fosgate 3-SIXTY processor and Maestro AR to facilitate the replacement of many factory amplifiers. Requires vehicle-specific T-harness and aftermarket amplifier sold separately.

Specifications:

• Digital signal processor with factory digital amplifier replacement module
• Add an aftermarket amplifier without losing any factory controls or audio notifications
• Requires Apple iOS device with internet connection to download vehicle-specific firmware to the module
• Includes iDatalink Maestro AR Interface to retain factory premium audio features
• Works with an optional vehicle-specific T-harness (sold separately)
• HRN-AR-CH2: for select 2008-up Chrysler, Dodge, Jeep and Ram vehicles
• HRN-AR-CH3: for select 2012-up Chrysler, Dodge, Fiat and Jeep vehicles
• HRN-AR-CH4: for select 2016-up Chrysler, Dodge, Jeep and Ram vehicles
• HRN-AR-FO2: for select 2011-up Ford vehicles
• HRN-AR-FO3: for select 2015-up Ford vehicles
• HRN-AR-HD2: for select 2014-up Harley Davidson Motorcycles
• HRN-AR-HK1: for select 2011-up Kia and Hyundai vehicles
• HRN-AR-HK2: for select 2011-up Kia and Hyundai vehicles
• HRN-AR-HK3: for select 2016-up Kia and Hyundai vehicles
• HRN-AR-LI1: for select 2013-up Lincoln vehicles
• HRN-AR-MI1: for select 2013-up Mitsubishi vehicles
• HRN-AR-TO1: for select 2008-up Lexus and Toyota vehicles
• HRN-AR-TO2: for select 2013-up Lexus, Subaru and Toyota vehicles
• HRN-AR-TO3: for select 2013-up Lexus, Subaru and Toyota vehicles
• HRN-AR-VW1: for select 2010-up Volkswagen vehicles
• Supplies control data as well as audio
• Preamp and speaker-level inputs for use with a non-premium System and no vehicle-specific harness

Digital Processing:

• Digital processing technology from Rockford Fosgate's 3Sixty.3 processor
• Digital processing: 147 MIPS speed, 32-bit precision, 72-bit accumulators
• Analog to digital: 24-bit precision, 105 dB dynamic range, -98 dB THD+N

• Digital to analog: 24-bit precision, 108 dB dynamic range, -98 dB THD+N

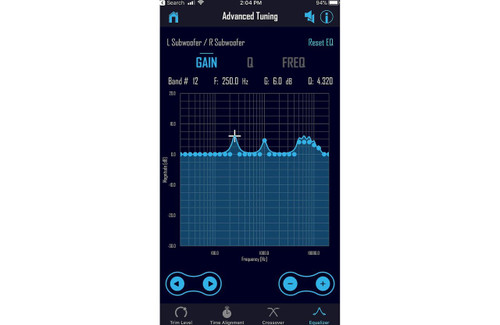

• Settings and adjustments made via Bluetooth connection to a iOS or Android device running PerfectTune app
• 8 assignable inputs
• 4 auxiliary RCA and 1 optical TOSLINK (S/PDIF) inputs
• 8 preamp outputs (up to 4 volts)
• 31-band parametric EQ on all channels
• Crossover filters can be set as all-pass, high-pass, low-pass, bandpass, high-shelf, or low-shelf filters
• Selectable slopes and filter characteristics
• Phase switch on every channel
• Dimensions: 4"W x 1.25"H x 5.06"D

What's in the Box:
