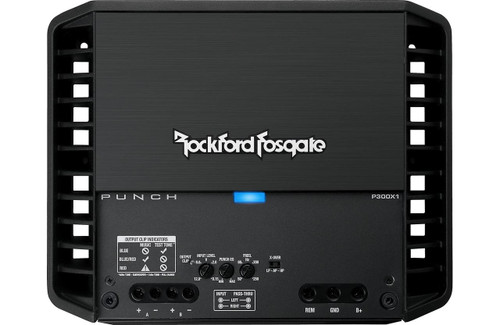

About: Rockford Fosgate P300X1 Punch 300 Watt Full-Range Mono Amplifier

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

Specifications:

• Full-range mono amplifier
• Frequency response: 20-20,000 Hz
• 200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
• CEA-2006 compliant

Features:

• Variable high- and low-pass filter filter (50-250 Hz, 12 dB/octave)
• Variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
• C.L.E.A.N. gain setup system includes test tone CD
• Test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
• Class-AB amplifier design
• Dynamic Thermal Management and MEHSA MOSFET cooling systems
• MOSFET power and output stages
• Preamp inputs and outputs
• Speaker-level inputs (speaker wire to RCA adapter required)
• Signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead

More Info:

• Optional PLC2 wired remote level control with clip light available
• 8-gauge power and ground leads and an 50-amp fuse recommended — wiring and hardware not included with amplifier
• no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D): 9-15/16" x 2-7/16" x 7-13/16"
• warranty: 1 year
