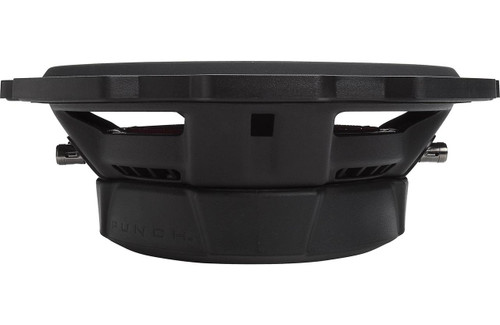

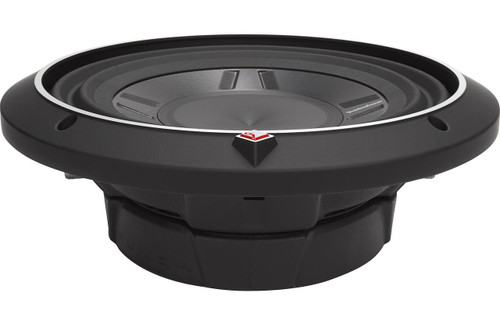

About: Rockford Fosgate P3SD2-10 Punch 10" 300W RMS P3S Shallow Subwoofer - Dual 2 Ohm

Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-10 features Dual 2-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling. The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

Features:

• Diamond cut cast aluminum trim ring with optional grille
• Dual linear spider with embedded 16 AWG tinsel leads
• StampCast basket with integrated spider venting
• Shallow Motor Assembly
• Optimized for both sealed and vented enclosures
• Anodized aluminum cone and dustcap
• M-Roll Santoprene™ surround

Specifications:

• 10" shallow-mount subwoofer with dual 2-ohm voice coils
• Anodized aluminum cone with M-Roll Santoprene™ surround
• Power range: 50-300 watts RMS (150 watts per voice coil)
• Peak power handling: 600 watts
• Frequency response: 40-250 Hz
• Sensitivity: 83 dB
• Top-mount depth: 3-9/16"
• Sealed box volume: 0.40-1.00 cubic feet
• Ported box volume: 1.00 cubic feet
• Grille not included

What's in the Box:

• One shallow-mount 10" Dual 2-ohm voice coil woofer
• 1 Aluminum trim ring
• Eight 1-1/8" Allen head self-tapping screws
• 4mm Allen head bit
• Installation and Operation manual (English/ French/ Spanish/ German)
