Descriptions

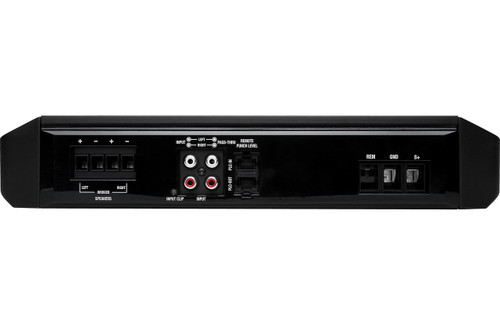

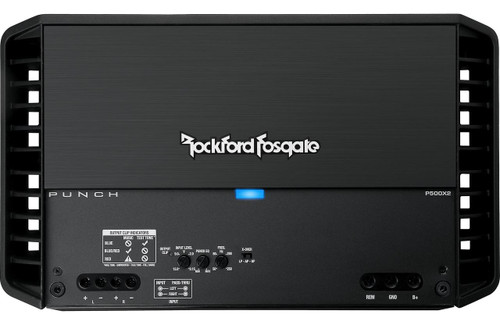

About: Rockford Fosgate P500X2 Punch 500 Watt 2-Channel Amplifier

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

The P500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

Specifications:

• 2-channel car amplifier
• 150 watts RMS x 2 at 4 ohms (250 watts RMS x 2 at 2 ohms)
• 500 watts RMS x 1 bridged at 4 ohms (4-ohm stable in bridged mode)
• CEA-2006 compliant

Features:

• Variable high- and low-pass filter filter (50-250 Hz, 12 dB/octave)
• Variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
• C.L.E.A.N. gain setup system includes test tone CD
• Test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
• Class-AB amplifier design
• Frequency response: 20-20,000 Hz
• Dynamic Thermal Management and MEHSA MOSFET cooling systems
• MOSFET power and output stages
• Preamp inputs and outputs
• Speaker-level inputs (speaker wire to RCA adapter required)
• Signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead

More Info:

• Optional PLC2 wired remote level control with clip light available
• 4-gauge power and ground leads and an 80-amp fuse recommended — wiring and hardware not included with amplifier
• No onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D):13-3/8" x 2-7/16" x 8-13/16"
