Descriptions

Product Highlights:

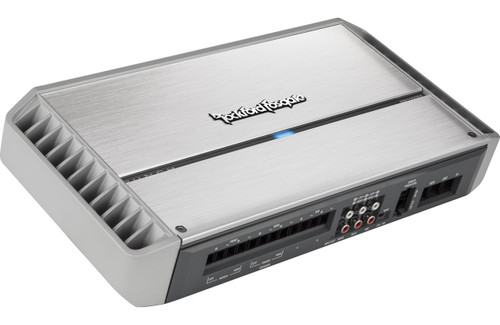

The PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.

The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on

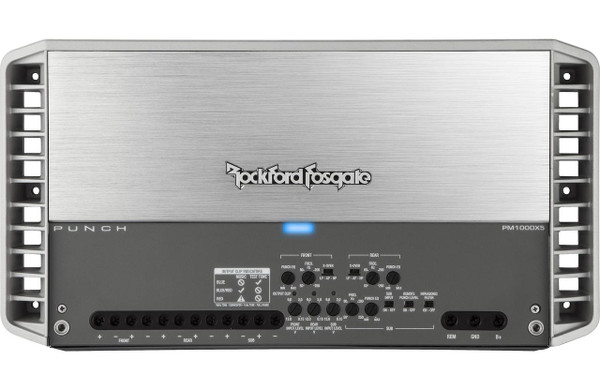

• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Infrasonic filter
• 2/4 channel input switch
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• 2 Year Warranty

Specifications:

• Input Sensitivity150 mV - 12 V
• Operating Voltage9 - 16 VDC
• Number of Channels5
• CEA-2006 CompliantCEA-2006 Guidelines CEA-2006 Power Rating
• 75Wx4 + 150Wx1 @ 4ä‹_
• ≤1.0% THD+N
• Tone ControlsSub:
• 0dB to +18dB @ 45Hz

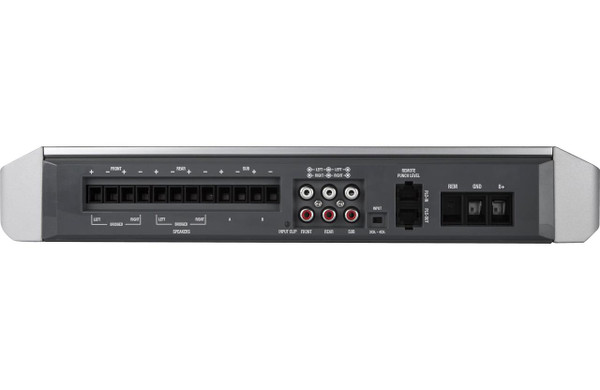

• Signal InputInput Switch: Hi/Low level input
• Input Switch: 2/4 channel input
• Hi/Low Level: 3 RCA Pair
• Sub: front/sub input switch
• Signal Output-
• Power Input ConnectorBlock
• Power Wire Gauge4 AWG
• Speaker Output ConnectorBlock
• Speaker Wire Gauge12 AWG
• Visual IndicatorsPower/Protect/Thermal LED
• Input Clip LED3
• Output Clip LED1,2,3
• LED Color Legend:
• 1BLUE: <0.5% THD
• 2VIOLET: 1% THD
• 3RED: 10%+ THD
• Dimensions (H x W x D)2.38 x 7.76 x 15.03 (in)
• 6.05 x 19.71 x 38.18 (cm)
• Total Harmonic Distortion (THD+Noise)<1.0%
• Average Current Draw (13.8V Music)75 A
• Max. Current Draw (13.8V Sinewave)150 A
• Recommended Fuse
• (not included)150 A
• Suggested Alternator100 A
• Rated Power
• (RMS Continuous Power)75 Watts x 4 +
• 150 Watts x 1 @ 4-Ohm
• 125 Watts x 4 +
• 300 Watts x 1 @ 2-Ohm
• N/A +
• 500 Watts @ 1-Ohm
• Total Power
• (Sum of Rated Power)1000 Watts
• BridgeableYes (front/rear channels)
• Crossover ControlsFront: 50Hz - 250Hz High-Pass @ 12dB/Octave
• Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
• Sub: 50Hz - 250Hz Low-Pass
• Sub: 28Hz infrasonic filter @ 12dB/Octave
• Heat Sink TypeCast
• CoolingConvection
• Remote ControlsOptional Punch Level Control (PLC2) Ready
• Circuit Topology ClassClass A/B + Class BD (Sub)
• Frequency ResponseFront/Rear: 20Hz - 20kHz +/-3dB
• Sub: 20Hz - 500Hz +/-3dB
• Shipping Weight15.3 Lbs. (6.93 Kg.)
• Dynamic Power
• (PVC/PowerCube®)115 Watts x 4 +
• 299 Watts x 1 @ 4-Ohms 0° Res
• 190 Watts x 4 +
• 540 Watts x 1 @ 2-Ohms 0° Res
• N/A +
• 863 Watts x 1 @ 1-Ohm 0° Res
• Efficiency (average)Front/Rear: 66% @ 4-Ohm
• Sub Channel: 80% @ 4-Ohm

What's in the Box:

• Owner's manual
• 5-Channel marine amplifier
• 2.5mm Allen wrench
• Four 1-1/2" Self-tapping screws
• Setup disc (CD)
• Setup guide
• Certificate of Performance Verification
