Descriptions

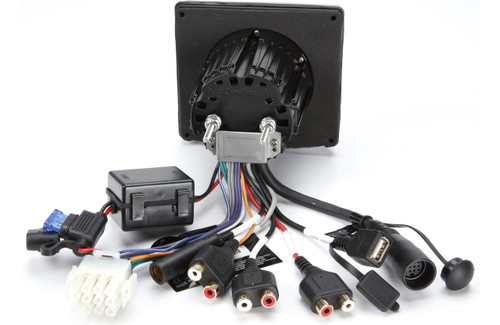

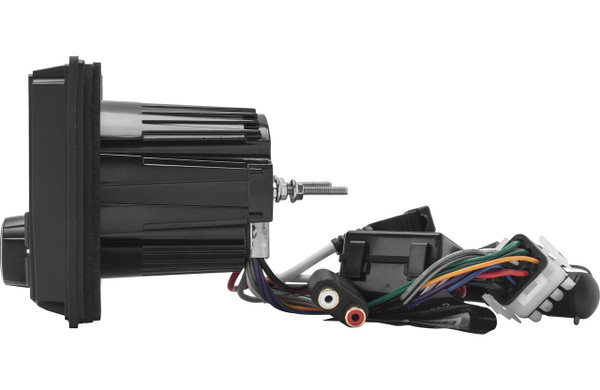

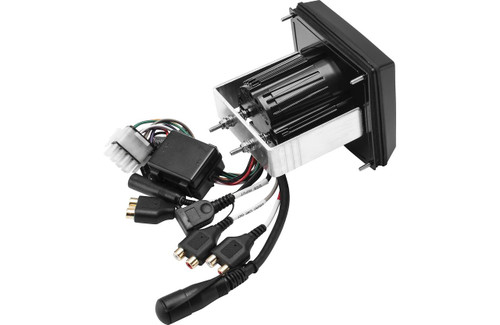

About: Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7" Display

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.   1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

General Features:

• Marine digital media receiver with camera input (does not play CDs)
• Built-in amplifier (25 watts RMS CEA2006/45 peak x 4 channels)
• Built-in Bluetooth for music streaming (will not make calls)
• Works with Apple and Android smartphones
• 2.7" color display

Audio Features:

• Global AM/FM/Weather tuner
• Plays MP3/WMA/WAV files
• Front panel subwoofer control
• Selectable high-pass and low-pass crossovers
• Adjustable input gain for each source
• Punch EQ: 7-band graphic equalizer

Expandability:

• Inputs: rear charging USB port, rear aux input
• Works with SiriusXM satellite radio tuner (sold separately)
• Outputs: 4-channel preamp outputs (2-volt front and selectable rear/sub)
• Other Features and Specs:
• External trigger input activates reverse camera mode
• Compatible with optional wired remotes (3 max)
• IPX-6 front panel for excellent water resistance
• Backlit LED buttons
• Compact chassis
• Two-piece mounting system to secure panel to mounting surface
• Integrated voltage gauge with low voltage alert
• EEPROM non-volatile memory
• Dimensions (W x D x H): 4-1/2" x 2-15/16" x 4-1/4"

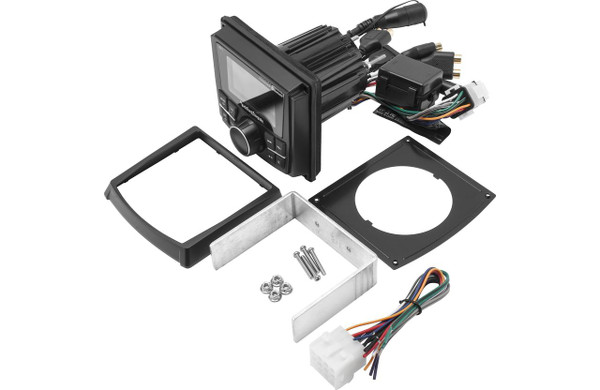

What's in the Box:

• Marine digital media receiver
• Trim-ring
• Mounting plate
• Mounting bracket
• Wiring harness
• Backstrap
• 4 Machine screws
• 4 Hex-nuts
• Installation/Operation booklet
