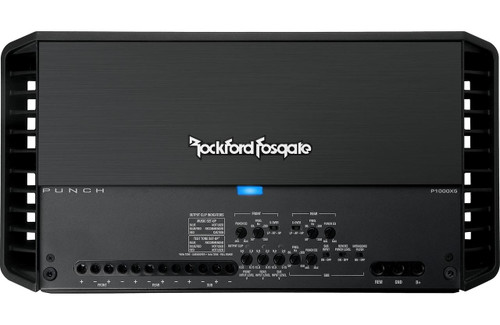

About: Rockford Fosgate Punch P1000X5 5-Channel Car Amplifier — 75W RMS x 4 + 150W RMS x 1

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.

The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

Features:

• Variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
• Variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
• Switchable subsonic filter (28 Hz, 12 dB/octave) on subwoofer channel
• C.L.E.A.N. gain setup system includes test tone CD
• Test tones also available as MP3 download from Amazon On Demand, Rhapsody, Google Play, and Spotify, labeled "3sixty.3 setup disc" (Punch amps and the 3sixty.3 use the same test tone tracks for setup)
• Class-BD amplifier design
• Frequency response: 20-20K Hz
• Dynamic Thermal Management and MEHSA MOSFET cooling systems
• MOSFET power and output stages
• Preamp and speaker-level inputs (speaker-level inputs require a speaker wire to RCA adapter)
• Signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead

Specifications:

• 5-channel car amplifier
• 75 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms
• 125 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
• 250 watts RMS x 2 bridged at 4 ohms + 500 watts RMS at 1 ohm
• CEA-2006 compliant
• Optional PLC2 wired remote level control with clip light available
• 4-gauge power and ground leads and an 150-amp fuse recommended — wiring and hardware not included with amplifier
• no onboard fuses — when installing multiple amps in a system, an additional 150-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D): 15-1/8" x 2-7/16" x 8-13/16"
