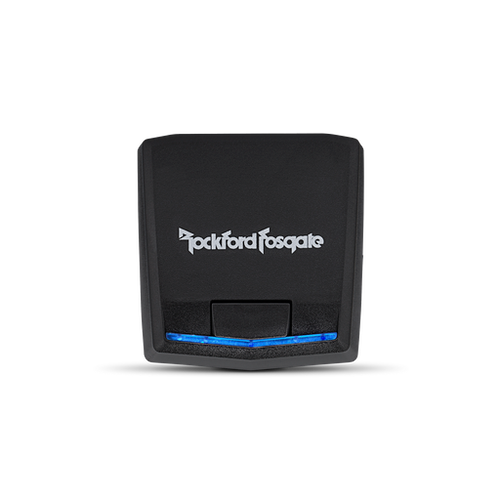

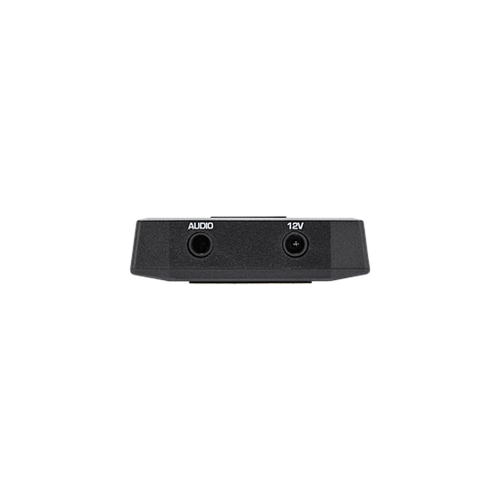

About: Rockford Fosgate RFBTRCA Universal Bluetooth to RCA Adaptor

The RFBTRCA is a universal Bluetooth receiver for wireless audio streaming and features RCA outputs for easy connection to an audio system. The RFBTRCA universal Bluetooth™ adapter allows to wirelessly stream media (music library, Pandora, Rhapsody, etc) from a Bluetooth™ enabled device through stereo RCA output jacks. Auxiliary input powered by the vehicle’s 12V accessory socket. Easy 1-button pairing function binds to Bluetooth™ enabled device and chimes on subsequent connections. Supplied 1/8” (3mm) cable sends audio through RCA outputs directly feeding audio system. Compatible with most Bluetooth™ devices, including smartphones, tablets, and laptops.

Features:

• Bluetooth™ streaming receiver
• 12VDC wired connection
• 1/8" (3.5mm) to stereo RCA audio output
• Simple one button pairing
• Auto connect after initial pairing
• Class 2 output power
• Bluetooth™ V3.0+EDR
• 33 foot range
• 3 ft. (1m) 1/8" (3.5mm) to male RCA audio cable included
• Compatible with Apple & Android Bluetooth™ devices

Specifications:

• Output Voltage: 800 mV
• Frequency Response: 20 Hz - 20 kHz
• Operating Voltage:
• 9-16 VDC
• 8" long coaxial power -to- bare wire +/-
• Connector Type C: 3.8 mm OD, 1.4 mm ID
• Mounting: Dash/Surface Mount
• Processor Type: Streaming Device
• Signal Processing: Bluetooth™ Profile: V3.0 + EDR
• THD+N: <1.0
• Signal-to-Noise:
• >90 dB (DAC)
• >80 dB (Max Output)
• Signal Output:
• 2-ch audio
• 3 ft. (1m) long output cable
• 1/8" (3.5mm) stereo -to- L/R male RCA
• Signal Input: Wireless Bluetooth
• LED Indicators:
• Power: Center Solid Blue
• Pairing: Left/Right Blinking Blue
• Connected: All Solid Blue
• Shipping Weight: 0.28 Lbs. (0.127 Kg.)
• Dimensions (H x W x D): 0.51" x 1.90" x 1.95" (13 mm x 48 mm x 49 mm)
