About: Rockford Fosgate RFK-HD9813M5 Amp Install Kit for Select 1998-2013 Harley-Davidsons (Gen-3)

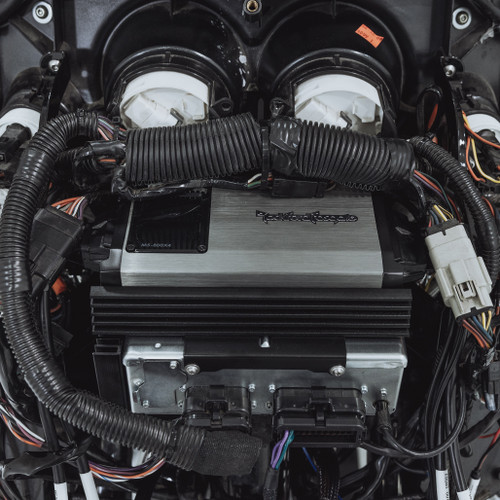

The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience. This complete kit includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier on select 1998-2013 Harley-Davidson® motorcycles. The cables have been upgraded to provide the necessary current and voltage requirements for the amplifier, and the heat-sink provides extended thermal time under demanding situations. Integrates into factory electrical system without modifications or cutting.

Plug-and-Play Design

Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.

Element Ready

Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.

Features:

FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
Plug and Play design for easy installation
100% Pure Crystal-Oxygen Free Copper (PC-OFC)
Designed for use with 1998-2013 Harley-Davidson® Motorcycles
Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak® speakers
Designed for use with M5-800X4 amplifier
Includes mounting brackets for Bat Wing and Shark Nose fairings
Includes rear speaker output harness for connection of rear speakers
Designed for use with TM400X4ad or M5-800X4 amplifier

Specifications:

Battery PWR/GND Gauge: 8 AWG
Fuse Size: 60 Amp
Fuse Type: MAXI
Amplifier PWR/GND Gauge: 8 AWG
Speaker Wire Gauge: 16 AWG
Dual Amp Installation Kit: No

Vehicle Applications:

Harley-Davidson

Street Glide Ultra (Bat Wing Fairing): 2006-2013
Street Glide (Bat Wing Fairing): 2006-2013
Electra Glide (Bat Wing Fairing): 1998-2013
Road Glide (Shark Nose Fairing): 1998-2013
Road Glide Ultra (Shark Nose Fairing): 1998-2013

What’s in the Box:

Amplifier mounting plate/heat sink
2 Road Glide brackets
1 Street Glide bracket
Power cable assembly with 5' 8-gauge power/ground wire (in-line fuse holder on power wire with 60A Maxi fuse inserted) and 15" remote wire
9.5' Rear speaker input/output harness
23" Front input cable
33" Front output cable
22" PMX-HD9813 Rear output adapter
Two 4" amp output Y-adapter harnesses
Eight 8" wire ties
Two 3/4" threaded posts
Eight 10mm counter-sunk screws
Four 8mm screws
Instruction manual
