Descriptions

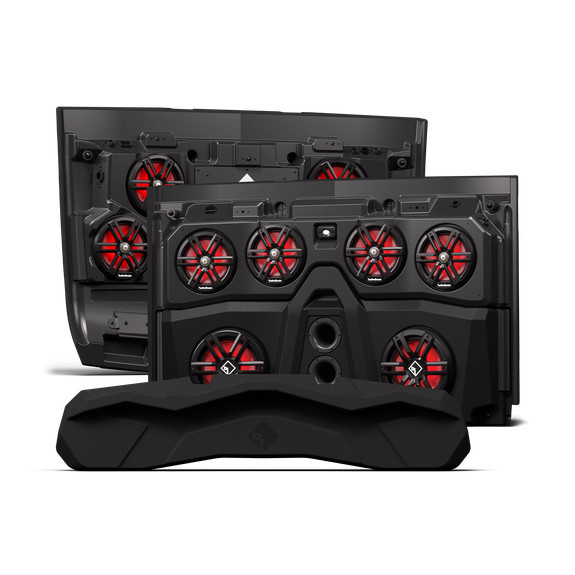

About: Rockford Fosgate RNGR18-ROOF4M2 Front & Rear Audio Roof for Select 2018+ Polaris Ranger Crew Models

The Ranger audio roof systems were developed to provide performance never heard before in a side by side. It’s our loudest all-in-one system, featuring simple plug and play installation and built to stand up to the elements. Refer to our compatibility chart to verify fitment before purchasing.

All-in-One Audio Performance

Equipped with eight 8-inch speakers, two 10-inch subwoofers, a 1500-watt amplifier and a 2.7-inch source unit all in a one-piece design; making the perfect blend of epic performance and simple installation.

Element Ready™

Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.

Adventure Tested

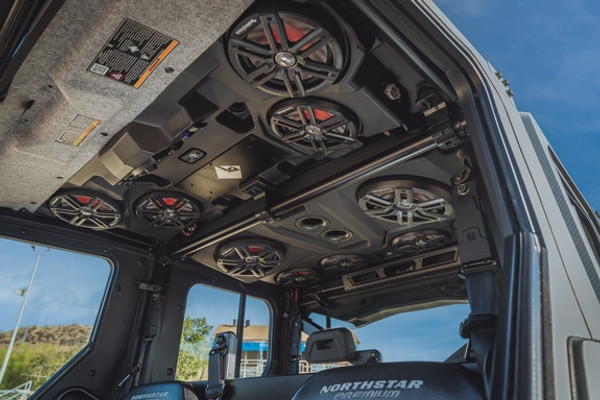

No matter where the adventure leads surround yourself with sound, all while the entire audio system is elevated out of the elements. With the system being overhead, all the audio stays above the water line, so fording water or deep mud won’t be a problem.

Color Optix™ Lighting

Adjust your own bright, wide, and limitless lighting experience with the built-in Rockford Fosgate Color Optix™ plug-and-play controller and App.

Features:

• Complete all-in-one roof audio solution
• Plug and Play design for easy installation
• Integrated rear passenger LED dome light
• Bluetooth™ connectivity with A2DP wireless audio streaming
• Direct bolt into vehicle using OEM mounting holes
• M2-8B: 8" Color Optix™ Marine Grade 2-Way Speakers
• M5-1500X5: 1500 Watt 5-Channel IPX6 Element Ready™ Amplifier
• Upgradeable with RNGR18-CAPM2 loaded rear cap for rear firing audio
• Upgradeable with RNGR18-FWE Color Optix 10" subwoofer/enclosure
• PMX-3: Compact AM/FM/WB Digital Media Receiver 2.7" LCD w/ Backup Cam & SiriusXM® Ready
• Compatible with Northstar power windows
• Prewired for LED light bar (30" min - 40" max)
• Integrated driver/passenger LED dome light
• Requires minimal disassembly and drilling for installation
• M2D2-10IB: 10" Color Optix™ subwoofers - Black
• Rocker switches: main power, backup camera, cargo lights, dome light, rear audio, light bar
• Dual high-output subwoofer ports, flared for low-noise output.
• Includes unloaded rear cap for structural support
• Sport grilles featured on all speakers
• Element Ready™ to withstand the harsh outdoor environment
• Durable HDPE (High Density Poly Ethylene) material

Specifications:

• 10-speaker roof-mounted audio system for select 2018-up Polaris Ranger Crew models
• System includes:
• Rockford Fosgate PMX-3 marine digital media receiver with Bluetooth® (does not play CDs)
• Eight 8" Rockford Fosgate M2-8HB Color Optix speakers
• Two Rockford Fosgate M2D2-10IB M2 Series 10" marine subwoofers
• Rockford Fosgate M5-1500X5 5-channel amplifier
• Speakers work with Color Optix controllers or the free RF Connect app
• Rugged roto-mold construction is made for life in the outdoors
• Plug and play installation
• Mounting hardware included
• Shipping Dimensions:
• Front Roof: 10.75" x 56.50" x 61.25" (27 x 144 x 156 cm)
• Rear Roof: 11.75" x 40.50" x 61.25" (30 x 103 x 156 cm)
• Overall: 22.5" x 56.50" x 61.25" (57 x 144 x 156 cm)
• Shipping Weight: 248 Lbs. (112.5 Kg.)

Vehicle Application:

Polaris

Ranger Crew (6-Seat):

• Ranger Crew 1000: 2020 - 2022 & 2024
• Ranger Crew 1000 EPS: 2020
• Ranger Crew 1000 Premium: 2020 - 2024
• Ranger Crew 1000 Premium + Winter Prep Package: 2022

XP 1000:

• Ranger Crew XP 1000 Big Game Edition: 2021 - 2022
• Ranger Crew XP 1000 Premium: 2020 - 2024
• Ranger Crew XP 1000 Texas Edition: 2020 - 2024
• Ranger Crew XP 1000 Trail Boss: 2021 - 2022
• Ranger Crew XP 1000 Waterfowl Edition: 2021 - 2022
• Ranger Crew XP 1000 NorthStar Big Game Edition: 2022
• Ranger Crew XP 1000 NorthStar [Edition] Premium: 2020 - 2024
• Ranger Crew XP 1000 NorthStar [Edition] Ultimate: 2020 - 2024
• Ranger Crew XP 1000 NorthStar Edition Trail Boss: 2021 - 2024
• Ranger Crew XP 1000 EPS: 2018 - 2019
• Ranger Crew XP 1000 [EPS] High Lifter Edition: 2018 - 2022
• Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition: 2018 - 2019
• Ranger Crew XP 1000 EPS Back Country Edition: 2019

What's in the Box:

• (1) Front roof assembly
• (1) Blank rear cap
• (1) 1130-77294-01 front AP pack
• (1) Rear roof assembly
• (1) Upper clamp base
• (1) Upper clamp base gasket
• (1) 1130-77211-01 rear AP pack (see below)
• (2) Gasket 35mm OD, 16.6mm ID
• (4) Torx Screw M8x1.25, 20mm
• (2) Hex nut nyloc M8x1.25
• (2) Spacer top hat 40.8mm
• (2) T40 Torx screw M8x1.25, 68mm
• (6) T25 Torx screw M6x1, 38mm
• (4) Flat washer 23mm OD, 8.60 ID
