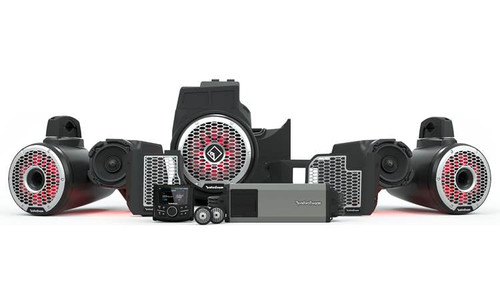

About: Rockford Fosgate RZR19PXP-STG6 2019+ Stage 6 Audio System for Select RZR Pro XP, Pro R, and Turbo R Models

The easiest SXS kits to install and set up, Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience. The Stage 6 is a 1,500 watt audio system that takes entertainment to a new level with higher performance, louder output, and greater clarity.  This complete waterproof solution provides the ability to take your UTV into any environment. The subwoofer enclosure – vented to provide maximum bass performance – offers the ability to seal the vent when submerging the vehicle.  The plug-and-play design requires minimal cutting or drilling by using OEM mounting points and features an easy to set-up “Rockford Fosgate” preset to optimize performance. The Color Optix™ control allows RGB color adjustment of speakers and rear moto-cans in addition to a Rockford Fosgate illuminated logo for a finishing touch to the passenger dash.

Element Ready™

Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.

Plug-and-Play Design

Minimal drilling or cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.

Color Optix

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.

Preset

Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.

RF3 (Rockford Factory Fit and Finish)

Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.

Features:

• Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
• Plug-n-Play wiring harnesses for select RZR models
• Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
• M2D4-10IB: M2 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
• RZR19PXP-DK: Dash Kit for PMX-1, PMX-2 or PMX-3 on select RZR® models
• M2-TS: M2 1" Element Ready™ marine grade tweeters
• PMX-3: Compact AM/FM/WB SiriusXM Ready™ Digital Media Receiver w/ 2.7" LCD, Bluetooth® and support for Pandora® and optional backup camera
• RZR19PXP-K4: 4 AWG amp installation kit for select RZR® models
• RZR19PXP-M2FWE: M2 10" Element Ready™ subwoofer enclosure for select RZR® models
• M2WL-8HB: M2 8” Color Optix™ 2-Way Horn Loaded Wake Tower Speakers - Black
• PMX-RGB: Color Optix™ speaker color controllable via RF Connect mobile app
• M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
• Enclosures for speakers/subwoofer integrate with no loss of passenger space
• RZR19PXP-FSE: 6.5" speaker in a front ported Color Optix™ enclosure for select RZR® models

Specifications:

• Element Ready UTV system includes digital media receiver, three sets of speakers, a 5-channel amp, and a 10" subwoofer
• Also includes front speaker enclosures, sub enclosure, a Color Optix controller, wiring, amp kit and mounting plate

Rockford Fosgate PMX-3 Marine Digital Media Receiver:

• USB port and aux input (does not play CDs)
• Includes camera input
• Built-in amplifier (25 watts RMS CEA-2006/50 peak x 4 channels)
• Built-in Bluetooth for music streaming (will not make calls)
• Rear-panel USB for music players and thumb drives
• SiriusXM-ready (tuner and subscription also required)

Rockford Fosgate TMS6SG 6-1/2" 2-Way Marine Speakers:

• Speakers preloaded into front enclosures
• Power handling up to 75 watts RMS (150 watts max)
• Carbon-fiber reinforced polypropylene cone
• 1" dome tweeter

Rockford Fosgate M2WL-8HB Roll Bar Speakers:

• 8" woofer; 1" bridge-mounted tweeter
• Power handling: 300 watts RMS (1200 watts peak power)
• 360° rotational mounting capability for unlimited flexibility
• High-density sealed polyethylene enclosures with stainless steel grilles

Rockford Fosgate M2-TS Tweeters:

• 1" high-efficiency tweeters (pair)
• Marine-grade rubber surround
• Fully-sealed external 18dB/Oct high-pass crossover
• Power handling: 200 watts RMS (800 watts peak)
• Marine-grade construction

Rockford Fosgate M2D4-10IB 10" Marine Subwoofer:

• Handles up to 400 watts RMS (1600 watts peak)
• Sensitivity: 90.3 dB
• Impedance: switchable 2 or 8 ohms
• Integrated Deutsch™/Amphenol™ connectors for easier wiring connections
• Injection-molded frame with UV inhibitors

Rockford Fosgate M5-1500X5 5-Channel Amp:

• 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
• 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
• conformal-coated circuit board — suitable for power sports and marine applications
• top-mounted control panel with waterproof smoked lens

Vehicle Application:

Polaris RZR Turbo R (2-Seat)

• RZR Turbo R Sport: 2022 - 2024
• RZR Turbo R Premium (RC*,RF2*): 2022 - 2024
• RZR Turbo R Ultimate (DY): 2022 - 2024

Polaris RZR Pro R (2-Seat)

• RZR Pro R Sport: 2022
• RZR Pro R Premium (RC,RF): 2022 - 2024
• RZR Pro R Ultimate (RC,DY): 2022 - 2024
• RZR Pro R Ultimate Launch Edition (DSC): 2022
• RZR Pro R Troy Lee Designs Edition (RC, DY, RF4): 2023

Polaris RZR Pro XP (2-Seat)

• RZR Pro XP: 2020
• RZR Pro XP Orange Madness LE (RC,RF2): 2020
• RZR Pro XP Sport: 2021 - 2024
• RZR Pro XP Sport Rockford Fosgate LE (RF1): 2021
• RZR Pro XP Premium (RC*,RF2*): 2020 - 2024
• RZR Pro XP Ultimate (RC,DY): 2020- 2024
• RZR Pro XP Ultimate Rockford Fosgate [LE] Limited Edition (RC,DY,RF4): 2021 - 2022

Polaris RZR Pro (4-Seat)

• RZR Pro R 4 Sport: 2022
• RZR Pro R 4 Premium (RC, RF): 2022 - 2024
• RZR Pro R 4 Ultimate (RC, DY): 2022 - 2024
• RZR Pro R 4 Ultimate Launch Edition (DSC): 2022
• RZR Pro R 4 Troy Lee Designs Edition (RC, DY, RF4): 2023

Polaris RZR Turbo (4-Seat)

• RZR Turbo R 4 Sport: 2022 - 2024
• RZR Turbo R 4 Premium (RC*, RF2*): 2022 - 2024
• RZR Turbo R 4 Ultimate (DY): 2022 - 2024

Polaris RZR Pro (4-Seat)

• RZR Pro XP 4: 2020
• RZR Pro XP 4 Orange Madness LE (RC,RF3): 2020
• RZR Pro XP 4 Sport: 2021 - 2024
• RZR Pro XP 4 Sport Rockford Fosgate® LE (RF1): 2021
• RZR Pro XP 4 Premium (RC,RF): 2020 - 2024
• RZR Pro XP 4 Ultimate (RC,DY): 2020 - 2024
• RZR Pro XP 4 Ultimate Rockford Fosgate [LE] Limited Edition (RC, DY, RF4): 2021 - 2022

Compatibility Notes:

• * Optional package available from factory
• (CV) Clutch Vent impedes installation of rear add-on subwoofer
• (DY) DYNAMIX suspension factory equipped
• (RB) Rear Brace impedes installation of rear add-on subwoofer
• (RC) Ride Command comes factory equipped
• (RF1) Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
• (RF2) Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
• (RF3) Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed.

What's in the Box:

PMX-3:

• Marine digital media receiver with attached 5" wiring harness

RZR19PXP-DK:

• Dash kit for PMX headunit

RZR19PXP-FSE:

• Two enclosures loaded with 6.5" 2-way Color Optix speakers (attached 5" input/tweeter output harnesses)
• Two 16" tweeter harnesses with inline crossovers
• 2 Rubber caps
• Dash trim piece
• Torx screwdriver

M2-TS:

• 2 Tweeters (with attached 12" speaker wire terminated with proprietary plugs)
• 2 Crossovers
• 2 Front flush mount trim rings
• Two M4x25mm Machine screws
• Eight 1-3/4" Stainless steel Allen head screws
• Eight 1" Stainless steel Allen head screws
• Six 3/8" Stainless steel Allen head screws
• 3mm Allen head bit
• Eight 7" Zip-ties
• Installation/Operation instructions (En/ Fr/ Sp/ Others)

M2WL-8HB:

• Two M2 8" waketower speakers w/stainless steel grilles
• 2 Upper mounting brackets
• 2 Lower mounting brackets
• Four 2.5" - 3.0" rubber shims w/mounting hardware (four 2-5/8" bolts / 4 flat washers / 4 lock washers)
• Four 1.5" - 2.5" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
• Two 12" 6-pin wire harnesses w/Deutsch connectors
• 2 Connection cover-plates
• 4 Plastic grommets
• 1/8" Hex bit
• T-45 Torx wrench
• Instruction manual
• Rockford Fosgate Contact information card

RZR19PXP-M2FWE:

• M2D4-10IB 10" DVC subwoofer with stainless-steel Color Optix grille
• Subwoofer enclosure with attached internal 16" speaker harness
• Add-on enclosure chamber
• 3 Mounting brackets
• Port plug

M5-1500X5:

• 5-Channel powersports amplifier attached to mounting bracket
• 11" Power/ground/turn-on & subwoofer output harness (installed)
• 11" Input harness (installed)
• Amplifier power certificate
• RZR19PXP-K4:
• Pre-configured 15' wiring harness with 4 AWG Power/ground wires and inline Maxi fuse holder
• Two 10" foam strips with 3M adhesive backing
• Thirty-two 14" Wire ties
• Twenty-five 8" wire ties
• Ten 6" wire ties with push-fasteners
• Twelve 7" wire ties with clips
• One rubber grommet
• 1.75" Hole saw with bit

PMX-RGB:

• Color Optix Light controller mounted to bracket (attached 1.5' power/ground/RGB harnesses w/inline 2A ATO fuse)

Hardware Pack:

• 2 Moto-can terminal covers
• Allen key
• 100A Maxi fuse
• 1 Tube of grease
• Amp mounting clamp with nut and washer
• Nine 7/8" screws
• Eight 3/4" screws
• Two 3/4" Torx screws
• 4 Speed-clips
• Four 1-1/2" Torx bolts
• Three 25mm Torx bolts
• Six 60mm screws
• Four 1/2" hex-socket screws
• 4 Flat-washers
• 2 Lock-washers
• Hex-head bit
