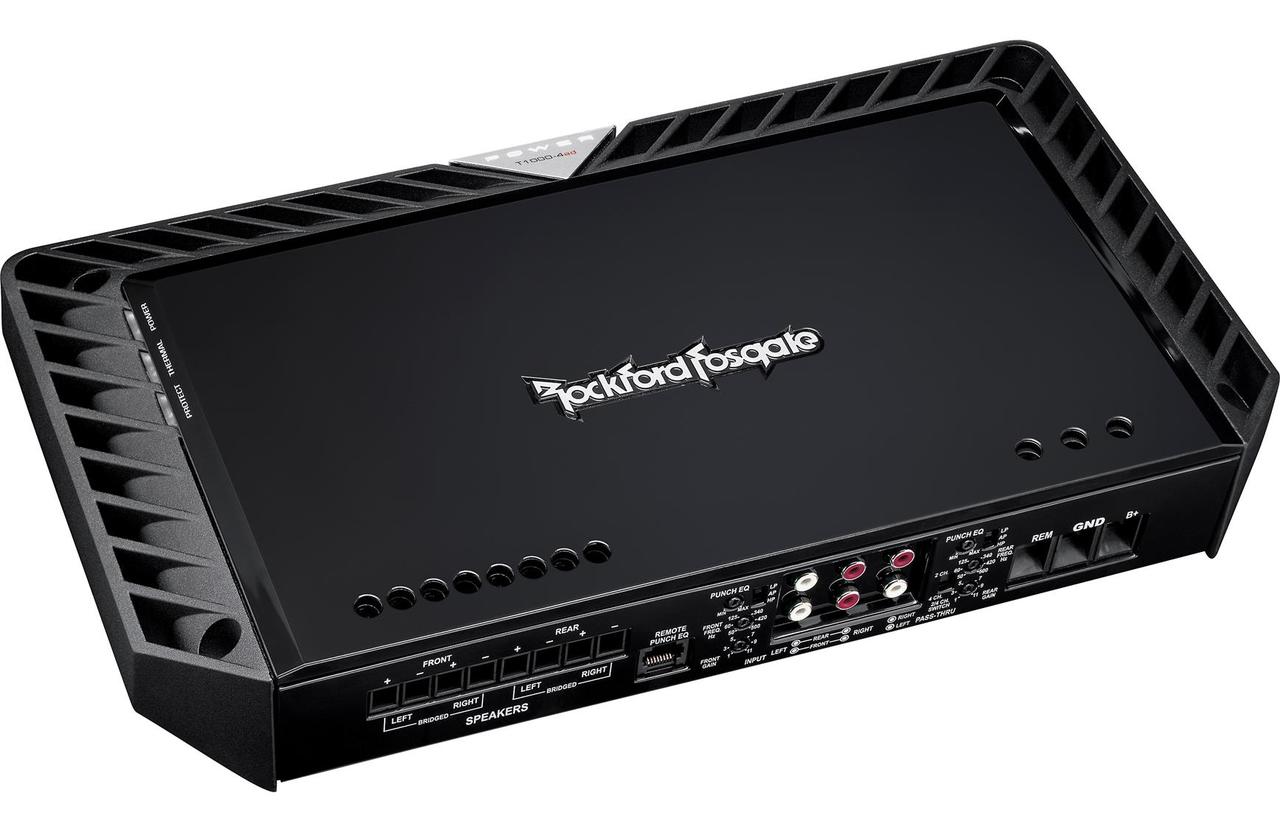

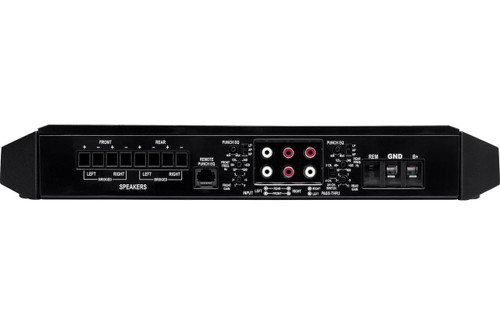

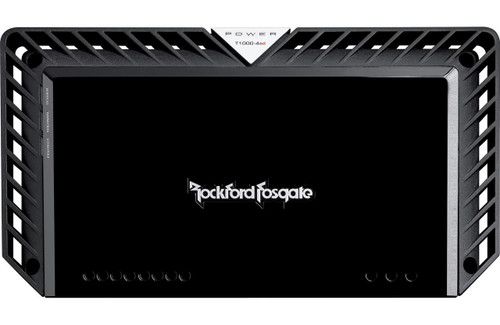

About: Rockford Fosgate T1000-4AD Power Series Full-Range 4-Channel Amplifier - 250W RMS x 4

The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration. The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.

Specifications:

• 4-channel car amplifier
• 250 watts RMS x 4 at 1 to 4 ohms
• 500 watts RMS x 2 bridged output at 2 ohms (2-ohm stable in bridged mode)
• CEA-2006 compliant
• Dynamic Thermal Management cooling system
• Differential Input circuitry eliminates hum
• Variable high- and low-pass filters (50-500 Hz, 24 dB/octave)
• Variable bass/treble boost (0-18 dB at 45 Hz, 0-12 dB at 12k Hz)
• Optional remote bass/treble boost
• Class-AD amplifier design with Constant Power
• Preamp inputs and outputs
• 4-gauge power and ground leads and a 150-amp fuse recommended — wiring and hardware not included with amplifier
• No onboard fuses — when installing multiple amps in a system, an additional 150-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D): 14-7/8" x 2-1/4" x 9-1/8"

What's in the Box:

• 4-channel amplifier
• Four 1-1/2" Self-tapping screws
• Installation & Operation manual (English/ French/ Spanish/ German/ Italian)
• Amplifier Performance Verification Certificate
