Descriptions

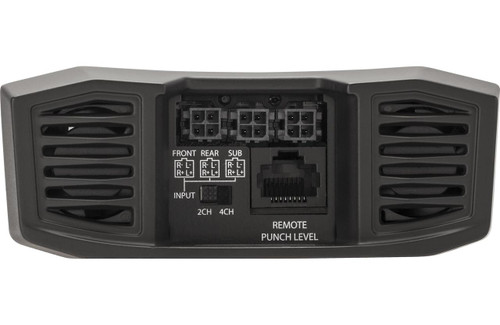

About: Rockford Fosgate T1000X5AD Power 1,000 Watt Class-ad 5-Channel Amplifier

The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecedented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

Specifications:

• 5-channel car amplifier
• 100 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
• 100 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
• 200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS at 1 ohm
• CEA-2006 compliant

Features:

• Class-AD amp technology on front and rear channels; Class BD on sub channel with Constant Power topology
• C.L.E.A.N. gain setup system includes test tone CD
• Differential input circuitry helps eliminate hum
• Dual-fan forced induction cooling
• Variable high- and low-pass filters (50-250 Hz, 12 dB/octave) on front and rear channels
• Variable low-pass filter (50-250 Hz, 12 dB/octave) on subwoofer channel
• Switchable subsonic filter (28 Hz, 12 dB/octave) on subwoofer channel
• Variable Punch EQ bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz) on all channels
• Optional PLC2 wired remote level control with clip light available

More Info:

• Preamp and speaker-level inputs
• Signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
• 4-gauge power and ground leads and a 125-amp fuse recommended — wiring and hardware not included with amplifier
• No onboard fuses — when installing multiple amps in a system, an additional 125-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D): 12-1/2" x 1-11/16" x 4-5/16"
