About: Rockford Fosgate T750X1BD Power 750W RMS Class-bd Monoblock Amplifier

The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology.

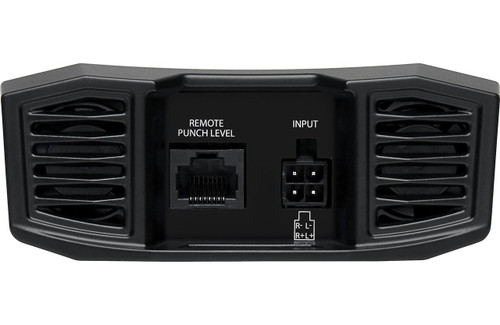

Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers.

This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.

Specifications:

• mono subwoofer amplifier
• 500 watts RMS x 1 at 4 ohms (750 watts RMS x 1 at 2 ohms)
• 750 watts RMS x 1 at 1 ohm
• CEA-2006 compliant

Features:

• Class BD amplifier technology with Constant Power topology
• C.L.E.A.N. gain setup system includes clip lights and test tone CD
• Differential input circuitry helps eliminate hum
• Dual-fan forced induction cooling
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Switchable subsonic filter (28 Hz, 12 dB/octave)
• Variable Punch EQ (0-18 dB at 45 Hz)
• Optional PLC2 Punch Level Control wired remote with clip light available
• Preamp and speaker-level inputs
• Signal-sensing turn-on with speaker-level input eliminates need for remote turn-on lead
• 8-gauge power and ground leads and a 100-amp fuse recommended — wiring and hardware not included with amplifier
• No onboard fuses — when installing multiple amps in a system, an additional 100-amp in-line fuse between the distribution block and the amplifier is recommended
• Dimensions (W x H x D): 8-1/2" x 1-11/16" x 4-5/16"
