Descriptions

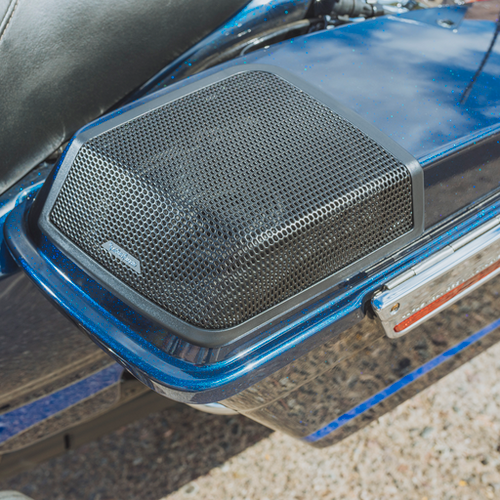

About: Rockford Fosgate TMS69BL9813 Saddlebag Audio Kit for 1998-2013 Harley-Davidson Models

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with existing OEM bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier.  Not designed for factory amplifiers.

Product Highlights:

• Compatible with 1998-2013 Harley-Davidson factory ABS bag lids (not compatible with fiberglass lids)
• Direct connect wiring harness
• Includes all installation hardware, grilles, and accessories

Features:

• Designed for use with existing 1998-2013 Rockford Fosgate Stage kits
• Designed for use with 1998-2013 Factory Harley-Davidson® Hardshell Bags
• Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
• Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
• Leave 2" minimum clearance under speaker magnet when packing bags
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Patent Pending
• TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
• Includes all Installation Hardware and Accessories
• Includes Custom Cut Out Guide
• Sandwich Clamping Gasket Design for Environmental Seal

Specifications:

• 6"x9"" full-range motorcycle speakers
• Designed for bag lid locations
• Element-Ready design is weather- and water-resistant
• Carbon-fiber reinforced polypropylene cone
• Glass-reinforced polymer frame
• 1" film dome tweeter with integrated phase plug and ASA grill
• Integrated 6 dB crossover with polyester capacitor
• Element-Ready design is weather and water resistant
• Santoprene VAST surround (creates more cone space for bigger sound)
• Handles up to 100 watts RMS (200 watts peak)
• Frequency response: 56-20,000 Hz
• Sensitivity: 89 dB
• Impedance: 4 ohms

What's in the Box:

• (2) TMS69 Speakers
• (2) Speaker Grilles
• (2) 6"x9" Basket Protectors

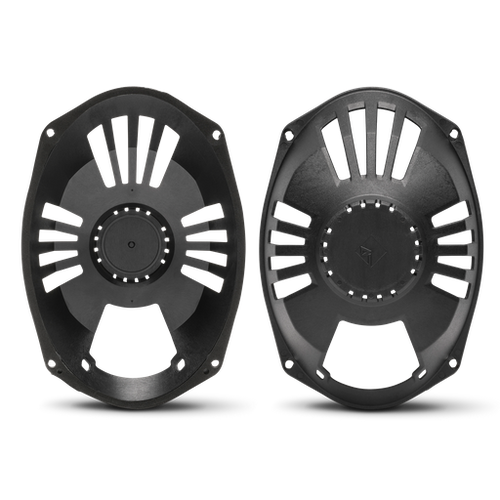

• (2) Mounting Rings
• (2) Cutting Templates
• (1) Main Harness
• (2) Saddlebag Harnesses
• Plastic Wire Tie Wraps
• Plastic Cable Tie Mounts
• (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
• (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
