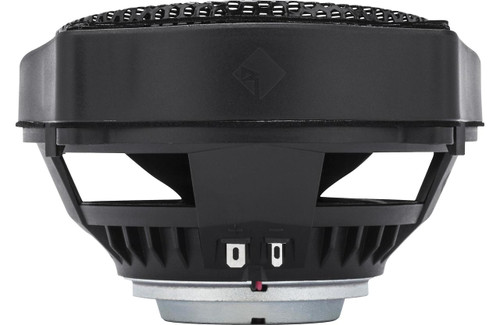

About: Rockford Fosgate TMS6SG 6.5" Full Range Fairing Speakers for Select 1998-2013 Harley-Davidson Motorcycles

The TMS6SG is a full range coaxial speaker designed to fit the fairing speaker locations of select model Harley-Davison® Electra Glide® and Street Glide® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.

he TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Features:

• Designed for 1998‐2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
• Element Ready design that is weather and water resistant
• Carbon Fiber Reinforced Polypropylene Cone
• Santoprene VAST Surround
• Co‐Molded Cone and Surround
• Poly‐Cotton Spider
• Santoprene Front Isolation Spider
• High Power 35mm Voice Coil
• Ultra‐Efficient Neodymium Ring Magnet Motor
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Integrated Spade Terminals
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Low Profile Coaxial Tweeter Design
• Discreet (Hidden) Tweeter Wire
• NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification

Specifications:

• 6-1/2" full-range motorcycle speakers
• Designed for the fairing speaker locations on 1998-2013 Harley-Davidson Street Glide models
• Element-Ready design is weather and water resistant
• 25 mm neodymium tweeter with integrated phase plug and ASA grill
• Carbon-fiber reinforced polypropylene cone
• Santoprene VAST surround
• Santoprene front isolation spider
• 35mm voice-coil
• Neodymium ring magnet motor
• Glass-reinforced polymer frame
• Integrated spade terminals
• Integrated 6 db crossover with polyester capacitor
• Power handling: 75 watts RMS (150 watts peak)
• Frequency response: 56-20,000 Hz
• Sensitivity: 91 dB
• Grilles and mounting hardware included

What's in the Box:

• Owner's manual
• Two 2-way speakers
• 2 Grilles
• Four 1-3/4" Mounting screws
• Two 1" Mounting screws
• Installation manual (English/ French/ Spanish/ German/ Italian)
