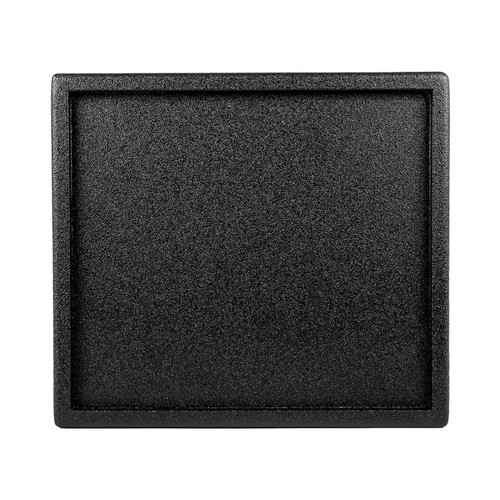

About: Skar Audio AR1X10V Single 10"  Armor Coated Ported Subwoofer Enclosure

Skar Audio introduces its armored series of high-performance ported subwoofer enclosures to offer a best-in-class product lineup, that combines advanced engineering with exceptional craftsmanship. The AR1X10V is a single 10-inch, ported, armor coated, universal fit subwoofer enclosure that will help to deliver the most powerful and dynamic low end listening experience possible when paired with your existing subwoofer.

The craftsmanship that goes into each of these enclosures is world class, just like the materials we use when constructing them. It starts with the high quality 3/4" Medium Density Fiberboard (MDF), which affords the box to be able to withstand even the strongest sound pressure levels. Furthermore, this enclosure features a 1-inch wide kerf style port (typically found only in custom, high-end, professional enclosures), allowing it to reproduce even more powerful and responsive bass. It is precisely tuned to 38 Hz, and internally we line several walls of the enclosure with poly-fill to enhance the overall versatility and depth of sound.

Finally, the enclosure is finished in a black, premium grade, armor coating - affording it even more strength and offering it a protective coating ensuring it will last for years to come. The premium push terminal wiring cup, that is built into the side of the enclosure, features 12-gauge speaker wire that is pre-soldered and connected to the terminals, making it easier than ever to wire up and install your subwoofer.

Product Highlights:

• Mounting Depth: 9.00"
• Cut-Out Diameter: 9.375"
• Tuning Frequency: 38 Hz
• Total Gross Air Space (Volume): 1.40 ft3

Specifications:

• Wood Type: MDF
• Fitment Type: Universal
• Enclosure Type: Ported
• Subwoofer Size: 10"
• Wood Thickness: 3/4"
• Enclosure Finish: Armor Coated
• Fits How Many Subs: 1
• Enclosure Finish Color: Black
• Subwoofer Compatibility Size: 10"
• Internal Speaker Wire Leads Pre-soldered: 12 AWG
• External Push Terminal Wire Gauge Opening: 8 AWG
• Port Width: 1.80"
• Number of Ports: 1
• Total Box Volume: 1.40 Cubic Ft
• Number of Subwoofer Chambers: 1
• Tuning Frequency of Enclosure: 38 Hz
• Number of Terminal Cup Connections: 1

Enclosure External Dimensions:

• Depth: 13.625"
• Height: 13.00"
• Length: 18.50"

Subwoofer Mounting Parameters:

• Subwoofer Hole Cut-out Diameter: 9.34"
• Subwoofer Maximum Mounting Depth: 8.95"

Subwoofers that will Fit:

• Skar Audio IX-10
• Skar Audio VD-10
• Skar Audio VS-10
• Skar Audio SDR-10
• Skar Audio SVR-10
• Skar Audio DDX-10
