About: Skar Audio BNDLE-EVL-2X12D4 Dual 12" 2500W RMS EVL Series Complete Subwoofer Package with Vented Enclosure and Amplifier

The most powerful bass package we offer, this behemoth dual 12" loaded enclosure bundle is for those audiophiles seeking the most extreme levels of bass output in their vehicles. Featuring a max power rating of 5,000 watts, the bass produced from the included EVL-2X12D4 loaded subwoofer enclosure will be thunderous in your vehicle, and is unlike anything else available in the market today.

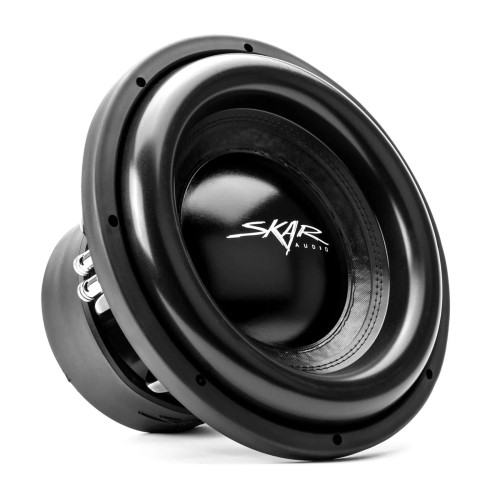

This package is equipped with two, 12-inch, dual 4-ohm, Skar Audio EVL series subwoofers, which are pre-loaded and wired up inside of a custom dual 12" ported enclosure to a 1-ohm final impedance load. From there, we pair it with a Skar Audio RP-2000.1D class D amplifier, which is the perfect match for providing optimal power output to drive the subwoofers. Finally, we include a 1/0 gauge amplifier wiring kit to wire up your new system.

The enclosure features our advanced port and split chamber woofer design, allowing for extreme levels of bass output, while reducing distortion. Due to the weight of the massive EVL motor, we built this enclosure with extensive internal bracing, ensuring structural integrity and reliability. Furthermore, this custom enclosure is covered in premium grade black carpeting, providing a sleek appearance that allows the enclosure to look as good as it sounds.

Specifications:

• Type: Dual 12" Ported 5‚000W Peak Power Complete Loaded Subwoofer Enclosure Bundle
• RMS Power: 2,500 Watts
• Peak Power: 5,000 Watts
• Subwoofer Size: 12"
• Amplifier Model: RP-2000.1D
• Loaded Enclosure Model: EVL-2X12D4
• Amplifier Wiring Kit Model: SKAR0ANL-CCA

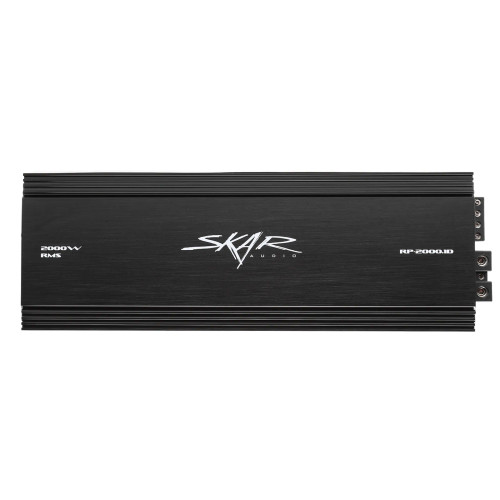

Amplifier Specifications (RP-2000.1D):

• Fuse Rating: 200 Amp
• Power Supply: High Speed MOSFET Power Supply
• Amplifier Type: Class D Monoblock
• Amplifier Model: RP-2000.1D
• Working Voltage: 8.5V - 14.4V
• Included Amplifier: RP-2000.1D
• RMS Power at 1 Ohm: 2000 Watts x 1 Channel (14.4v)
• Peak Power at 1 Ohm: 2800 Watts x 1 Channel (14.4v)
• Power & Ground Input Size: 1/0 Gauge
• Remote Bass Knob & Cable Included: Yes
• Dimensions (W x H x L): 6.20" x 2.25" x 18.75"

Amplifier Wiring Kit Specifications (SKAR0ANL-CCA):

• Wire Type: Copper-Clad Aluminum (CCA)
• ANL Fuse Size: 200 Amp (Fuse Holder Included)
• Included Wiring Kit: SKAR0ANL-CCA
• Included Accessories: Ring/Ground Terminals & Vinyle Cable Ties
• Power Wire Length & Type: 17 Ft - Matte Blue 1/0 AWG CCA Wire
• Ground Wire Length & Type: 3 Ft - Matte Brown 1/0 AWG CCA Wire
• Speaker Wire Length & Type: 20 Ft - Matte Blue 12 AWG CCA
• RCA Interconnects Length & Type: 17 Ft - 2-Channel
• Remote Turn-on Wire Length & Type: 17 Ft - Blue CCA Wire

Loaded Enclosure Specifications:

• Enclosure Type: Dual - 12" Vented Wedge Style Enclosure
• Height: 15.90"
• Port Width: 2.48"
• Enclosure Length: 35.50"
• Subwoofer Model Included: EVL-12 D4
• Included Loaded Enclosure: EVL-2X12D4
• Enclosure Depth 1 (Bottom): 19.59"
• Enclosure Depth 2 (Bottom): 15.78"
• Wood Thickeness & Material: 5/8" MDF
• Tuning Frequency of Enclosure: 32 Hz
• Final Impedance Load at Terminal Cup: 1 Ω
