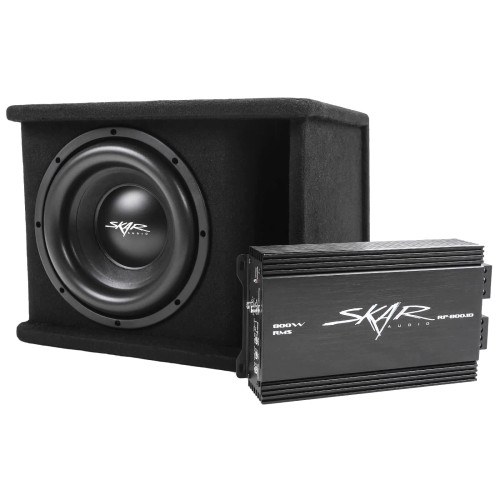

About: Skar Audio BNDLE-SDR-1X10D2 Single 10" 600W RMS SDR Series Complete Subwoofer Package with Vented Enclosure and Amplifier

Skar Audio designed the SDR-1X10D2 loaded subwoofer enclosure complete bass package to make installing after-market bass in your vehicle easier than ever before. This package offers a simplified option to add a competition-grade subwoofer system, without the guesswork involved in designing it from scratch. The custom loaded enclosure features one, SDR-10 D2 subwoofer, which is pre-loaded and wired up inside of the single 10"" vented enclosure. We also include the perfect amplifier in this package to power your new subwoofer with the Skar Audio RP-800.1D, which comes with a premium 4 gauge amplifier wiring kit to make installing the amplifier hassle free.

This custom enclosure used in this package was engineered by Skar Audio specifically for the subwoofer that is loaded in it, ensuring perfect sound and compatibility. The enclosure features a unique kerf port design, allowing for extreme levels of bass output. Furthermore, the enclosure is finished in premium grade black carpet for a sleek appearance and features the Skar Audio logo in white on the top surface of the box. The subwoofer comes pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 2-ohm subwoofer is wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals.

Product Highlights:

• Included Amplifier: Skar Audio RP-800.1D
• Included Amp Kit: 4 Gauge CCA Complete Kit
• Peak Power Handling: 1,200 Watts
• Final Impedance Load: 1 Ω
• Enclosure Configuration: Single 10"

Specifications:

• Type:

  Single 10" Ported 1‚200W Peak Power Complete Loaded Subwoofer Enclosure Bundle
• RMS Power: 600 Watts
• Peak Power: 1,200 Watts
• Subwoofer Size: 10"
• Amplifier Model: RP-800.1D
• Loaded Enclosure Model: SDR-1X10D2
• Amplifier Wiring Kit Model: SKAR4ANL-CCA

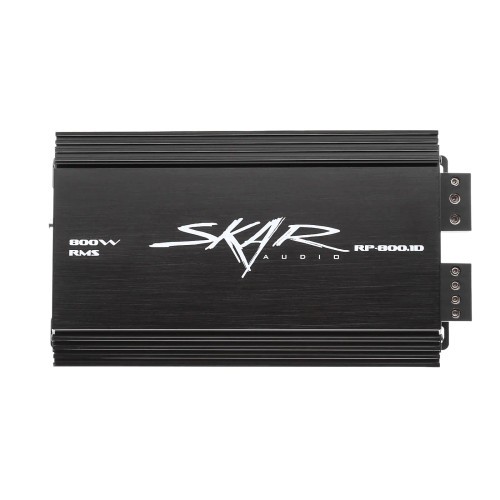

Amplifier Specifications (RP-800.1D):

• Amplifier Model: RP-800.1D
• Fuse Rating: 80 Amp
• Power Supply: High Speed MOSFET Power Supply
• Amplifier Type: Class D Monoblock
• Working Voltage: 8.5V - 14.4V
• RMS Power at 1 Ohm: 800 Watts x 1 Channel (14.4v)
• Peak Power at 1 Ohm: 1200 Watts x 1 Channel (14.4v)
• Power & Ground Input Size: 4 Gauge
• Remote Bass Knob & Cable Included: Yes
• Dimension (W x H x L): 6.20" x 2.25" x 11.25"

 Amplifier Wiring Kit Specifications (SKAR4ANL-CCA):

• Amplifier Wiring Kit Model: SKAR4ANL-CCA
• Wire Type: Copper-Clad Aluminum (CCA)
• ANL Fuse Size: 100 Amp - Fuse Holder Included
• Included Accessories: Ring/Ground Terminals & Vinyl Cable Ties
• Power Wire Length & Type: 17 Ft - Matte Blue 4 AWG CCA Wire
• Ground Wire Length & Type: 3 Ft - Matte Brown 4 AWG CCA Wire
• Speaker Wire Length & Type: 20 Ft - Matte Blue 16 AWG CCA
• RCA Interconnects Length & Type: 17 Ft - 2-Channel
• Remote Turn-on Wire Length & Type: 17 Ft - Blue CCA Wire

Loaded Enclosure Specifications (SDR-1X10D2):

• Height: 12.59"
• Port Width: 1.35"
• Enclosure Type: Single - 10" Vented Wedge Style Enclosure
• Enclosure Length: 16.64"
• Subwoofer Model Included: SDR-10 D2
• Included Loaded Enclosure: SDR-1X10D2
• Enclosure Depth 1 (Bottom): 15.20"
• Enclosure Depth 2 (Bottom): 13.38"
• Wood Thickness & Material: 5/8" MDF
• Tuning Frequency of Enclosure: 39 Hz
• Final Impedance Load at Terminal Cup: 1 Ω
