Descriptions

*OPEN BOX - FINAL SALE (B-Stock)*

- Previously used and drilled in. The subwoofer works well and comes with box.

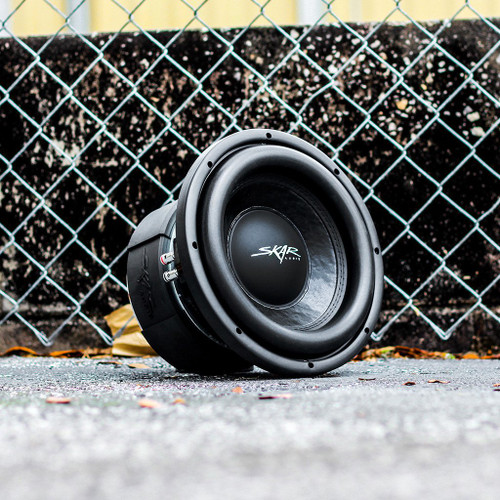

About: Skar Audio DDX-10 10" 1500W Max Power Car Subwoofer - Dual 4 Ohm - Open Box

The Skar Audio DDX-10 is a competition grade, 10-inch car subwoofer. The DDX lineup was engineered by Skar Audio to be an SPL grade woofer that could also be utilized in daily system applications, allowing non-competitors to use the same subwoofers as those competing in the lanes. Every component used in the design of these woofers is of the highest quality for reliability and increased performance. Featuring a massive double stack motor, 2.5 inch pure copper high temperature voice coil, and a competition grade pressed paper cone stitched to the high roll foam surround, the woofer comes equipped ready to handle serious amounts power. Max Power: 1500 Watts, RMS Power: 1000 Watts. Spl: 85.2 dB, Fs: 46 Hz, Bl: 24.8, Xmax: 15mm one-way. Qts: 0.45.

Specifications

• Skar Audio DDX-10 - 10" Component Car Subwoofer
• RMS Power : 1000 Watts
• Competition Grade Pressed Paper Cone
• Stitched High Roll Foam Surround
• Advanced Air Flow Cooling System
• 2.5" High Temperature Copper Voice Coil
• Frequency Response : 40 - 500 Hz
• Sensitivity : 85.2 dB
• Fs : 46.0 Hz
• Re : 3.9 Ohms
• Qms : 4.8
• Qes : 0.41
• Qts : 0.38
• Nref : .20 %
• Cms : 0.05 mm/N
• Bl : 24.8 n/a
• Vas : 8.7 L
• Mms : 220 gr
• Sd : 339.8 cm^2
• Xmax : 15 mm

Enclosure Specifications

• Sealed Volume : 1.15 ft^3
• Ported Volume : 1.65 ft^3
• Port Area : 22 sq.in.
• Port Length : 22"
• Tuning Frequency : 37 Hz
• Mounting Depth : 6.1"
• Cut-Out Diameter : 9.25"
• Magnet Diameter : 7.72"
• Subwoofer Displacement : 0.14 ft^3
• Enclosure specifications do not include subwoofer, bracing, and port displacement

*OPEN BOX - FINAL SALE (B-Stock)*

- Previously used and drilled in. The subwoofer works well and comes with box.
