Descriptions

About: Skar Audio EVL-1X10D2 Single 10" 1000W RMS EVL Series Loaded Vented Subwoofer Enclosure

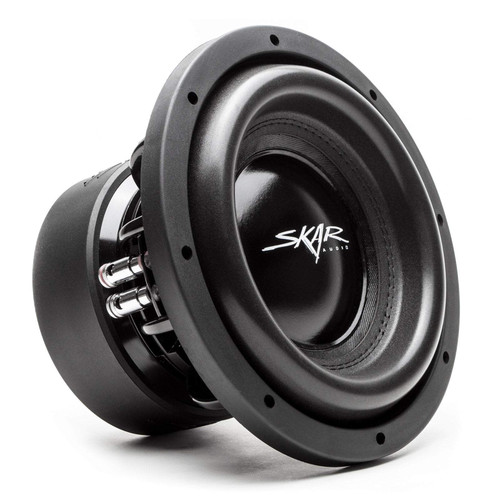

Skar Audio created this premium loaded enclosure package to make it easier than ever to add low-frequency, head-turning bass to your vehicle. This package is equipped with one, 10-inch, 2 ohm, Skar Audio EVL Series subwoofer, which is pre-loaded and wired up inside of a premium single 10-inch wedge-style ported enclosure. This enclosure is covered in industrial-grade black carpet and features the debut of our advanced port design, which promotes generous air movement, while reducing distortion.

The Skar Audio EVL series of subwoofers redefines the definition of low-end sound reproduction. The engineering behind developing a driver that is able to accurately handle the frequency range of these notes with authority is what makes this woofer so unique. From the bottom to the top, this loaded enclosure utilizes an array of design features and materials that distinctively put it in a class of its own. The subwoofer comes pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The 2-ohm subwoofer is wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals.

This enclosure was engineered by Skar Audio specifically for the subwoofer that is loaded in it, ensuring perfect sound and compatibility. Every subwoofer is different, and when buying a loaded enclosure it is so critical to ensure that the subwoofer and enclosure are an ideal match, or you will lose sound quality and output. With this loaded subwoofer enclosure model, all of those concerns are eliminated, making it easier than ever to add powerful aftermarket bass to your vehicle.

Product Highlights:

• Enclosure Configuration: Single 10"
• Power Handling:
• RMS Power: 1,000 Watts
• Peak Power: 2,000 Watts
• Final Impedance Load: 1 Ω

Specifications:

• Size: 10"
• Type: Single 10" Ported 2‚000W Peak Power Loaded Subwoofer Enclosure
• Port Type: High Performance Slot Port Design
• RMS Power: 1000 Watts
• Peak Power: 2000 Watts
• Wood Type: MDF
• Port Width: 2.47"
• Material Type: MDF
• Enclosure Type: Ported
• Subwoofer Size: 10"
• Wood Thickness: 5/8"
• Enclosure Style: Universal Fit Wedge Design
• Number of Ports: 1
• Enclosure Finish: Carpet
• Qty of Subwoofers: 1
• Material Thickness: 5/8"
• Final Impedance Load: 1 Ω
• Included Subwoofer(s): EVL-10 D2
• Enclosure Finish Color: Black
• Number of Subwoofer Chambers: 1
• Internal Air Space of Enclosure: 1.65 ft3
• Number of Terminal Cup Connections: 1
• Sensitivity: 82.1 dB
• Frequency Response: 28 - 300 Hz
• Tuning Frequency of Enclosure: 39 Hz

Enclosure External Dimensions:

• Height: 13.82"
• Length: 20.60"
• Depth 2 (Top): 15.10"
• Depth 1 (Bottom): 18.73"
