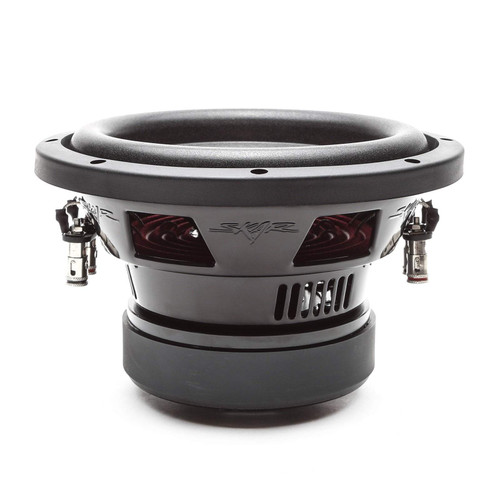

Skar Audio SDR-8 8" 350 Watts RMS Car Subwoofer

$109.99

$99.99

Description
Shipping & Returns

Description

About: Skar Audio SDR-8 8" 350 Watts RMS Car Subwoofer

The Skar Audio SDR-8 subwoofer was designed to redefine the term "daily" subwoofer, both in terms of power output and acoustic responsiveness across the entire low end frequency range. The engineering considerations that went into developing this 8-inch subwoofer are extensive, and contribute to why the SDR series has continued to be one of the most popular subwoofer lines we have ever released.

Featuring a 2.0" 4-layer high temperature copper voice coil, the SDR-8 can operate at peak performance for hours on end with the peace of mind knowing that it can handle the brutality. Combine that with the top-tier, high flux ferrite motor of this driver, and it is by no surprise that this subwoofer can reproduce low end bass frequencies with authority. Furthermore, we integrated a unique red nomex spider suspension system into the design that utilizes the perfect blend of stiffness and flexibility. The aforementioned components of the SDR-8 as well as its advanced air flow cooling design, are what ultimately allow for the incredible responsiveness & power handling of this subwoofer.

Product Highlights:

RMS Power Handling: 350 Watts
Peak Power Handling: 700 Watts
Voice Coil Size: 2.0"
Voice Coil Configuration: Dual 2 Ω (D2) or Dual 4 Ω (D4)

Specifications:

Size: 8"
Type: Car Subwoofer
Cone Type: Competition Grade Pressed Paper Cone
RMS Power: 350 Watts
Peak Power: 700 Watts
Surround Type: High Roll Foam Surround
Voice Coil Size: 2.00"
Magnet Slug Count: Single
Voice Coil Layers: 4
Voice Coil Material: Copper (Pure Copper)
Voice Coil Impedance: Dual 2 Ω (D2) or Dual 4 Ω (D4)

Subwoofer Measurements:

Total Height:
5.40"
Mounting Depth: 4.69"
Magnet Diameter: 5.26"
Cut-out Diameter: 7.22"
Outside Diameter: 8.41"

Recommended Enclosure Specifications:

Recommended Port Area: 10.5 in²
Recommended Ported Volume: 0.75 - 1.00 ft³
Recommended Sealed Volume: 0.55 - 0.75 ft³
Recommended Tuning Frequency: 39 Hz
Enclosure Disclaimer: Enclosure recommendations above do not include subwoofer, bracing, and port displacement

Thiele & Small Parameters	SDR-8 D2	SDR-8 D4
BL Factor (BL)	14.25 n/a	7.35 n/a
Free Air Resonance (Fs)	39 Hz	39 Hz
DC Resistance (Re)	Dual 2 Ω	Dual 4 Ω
Cone Area (Sd)	201 cm2	201 cm2
Mechanical Compliance (Cms)	0.122 mm/N	0.121 mm/N
Electrical Factor (Qes)	0.50	0.68
Mechanical Factor (Qms)	4.59	5.10
Total Factor (Qts)	0.45	0.61
Equivalent Volume (Vas)	7.0 L	6.98 L
Excursion (one way) (Xmax)	8.8 mm	8.8 mm
Sensitivity	83.8 dB	83.7 dB
