Descriptions

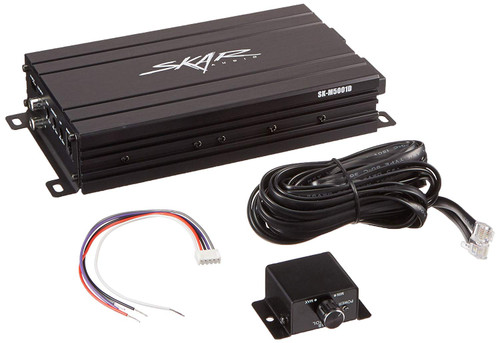

About: Skar Audio SK-M5001D 500W RMS Monoblock Car Amplifier

The Skar Audio SK-M5001D class D monoblock amplifier is part of the new mini amplifier series product lineup from Skar Audio. The SK-M5001D was engineered to be compact, but provide the power and reliability expected out of larger amplifiers. Featuring a high speed MOSFET power supply, and an efficient Class D design, this amplifier is powerful, reliable, and extremely versatile.

The SK-M5001D makes for a great amplifier in applications where space is limited but power cannot be sacrificed. In addition, this monoblock subwoofer amplifier features high level input connections for those installations that lack an RCA connection. Further adding to the versatility of this amplifier are it's subsonic and low-pass filters, allowing for ultimate user control.

Product Highlights:

• RMS Power @ 1 Ω: 500W x 1 Ch (14.4v)
• Peak Power @ 2 Ω: 380W x 1 Ch (14.4v)
• Power & Ground Input Size: 8 Gauge
• Remote Bass Knob and Cable Included: Yes

Specifications:

• Type: Monoblock Car Amplifier
• Class: D
• Power Handling:
• RMS Power at 1 Ohm: 500 Watts x 1 Channel (14.4v)
• RMS Power at 2 Ohms: 380 Watts x 1 Channel (14.4v)
• RMS Power at 4 Ohms: 238 Watts x 1 Channel (14.4v)
• Efficiency at 4 Ohms: 0.86
• Bridgeable: No
• Strappable: No
• Fuse Rating: 50 Amp
• MOSFET Type: High Speed MOSFET Power Supply
• Damping Factor: 100<
• Bass EQ (Boost): No
• Output Channels: 1
• RCA Line Output: No
• Turn-On Circuit: Soft Turn-on Circuit
• Working Voltage: 8.5V - 14.4V
• Subsonic Control: 10Hz - 50Hz
• Tri-Mode Capable: No
• Frequency Response: 15Hz - 270Hz
• Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)
• Power & Ground Inputs: 8 Gauge
• Signal-to-Noise Ratio: 85 dB
• Low Level Input (Gain): 8V - 0.2mV
• Low Pass Filter (Variable): 20Hz - 200Hz
• Power & Protection Indicators: Yes - LED Indicators
• Remote Bass Knob & Cable Included: Yes
• Dimensions (W x H x L): 4.65" x 1.70" x 9.25"
