Descriptions

About: Skar Audio SKV2-100.4AB 4-Channel Car Amplifier - 150W RMS x 4

The Skar Audio SKv2-100.4AB is a competition grade multi-channel class A/B speaker amplifier that was designed to deliver unequivocal performance and power output. As a part of the flagship SKv2 series of amplifiers from Skar Audio, this model utilizes only the highest quality internal components and features advanced engineering enhancements that allow it to outperform anything else on the market in its power class. The sound quality that this amplifier delivers due to its class A/B circuitry design is nothing short of audible excellence.

If you are looking for the absolute best amplifier to power your "daily driver" sound stage, look no further - this is the amplifier for you. Whether you are looking to power component speakers, pro audio speakers, or a mix of the both, this amplifier is more than capable of powering an entire vehicle's audio system. The SKv2-100.4AB is conservatively rated at 400 watts RMS power (100 watts x 4 channels), and at max power output can produce more than an astonishing 800 watts (200 watts x 4 channels). In addition to its extreme performance capabilities, this amplifier features an advanced heatsink design that allows for maximum cooling, as well as 4-way protection circuitry, enabling the amplifier to operate efficiently at peak output levels for hours on end.

Furthermore, you'll have full reign over your amplifier with the built-in user control panel, featuring variable adjustment tunings for gain level, subsonic filter, high-pass filter with x1-x10 switch, low-pass filter with x1-x10 switch, and crossover switch to select which filters you'd like to use (HPF, Full, LPF). Versatility is key, and so In addition to all the above features - the SKv2-100.4AB also has RCA outputs so that you can easily daisy chain multiple amplifiers together. This amplifier utilizes 4-gauge power and ground input terminals which allow for maximum current flow and therefore higher power output.

Specifications:

• Type: Multichannel Car Amplifier
• Class: A/B
• Power Handling:
• RMS Power at 2 Ohms: 150 Watts x 4 Channels (14.4v)
• RMS Power at 4 Ohms: 100 Watts x 4 Channels (14.4v)
• RMS Power at 4 Ohms (Bridged): 415 Watts x 2 Channels (14.4v)
• Efficiency at 4 Ohms: 0.61
• Bridgeable: Yes
• Strappable: No
• Fuse Rating: 90 Amp
• MOSFET Type: High Speed MOSFET Power Supply
• Damping Factor: 200<
• Bass EQ (Boost): No
• Output Channels: 4
• RCA Line Output: Yes
• Turn-On Circuit: Soft Turn-on Circuit
• Working Voltage: 8.5V - 16V
• Subsonic Control: 10Hz - 500Hz
• Tri-Mode Capable: Yes
• Frequency Response: 10Hz - 40kHz
• Built-in Crossovers: HPF / Full-Range / LPF
• Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)
• Power & Ground Inputs: 4 Gauge
• Signal-to-Noise Ratio: 105 dB
• Low Level Input (Gain): 6V - 0.2mV
• Low Pass Filter (Variable): 50Hz - 500Hz
• High Pass Filter (Variable): 500Hz - 5‚000Hz
• Power & Protection Indicators: Yes - LED Indicators

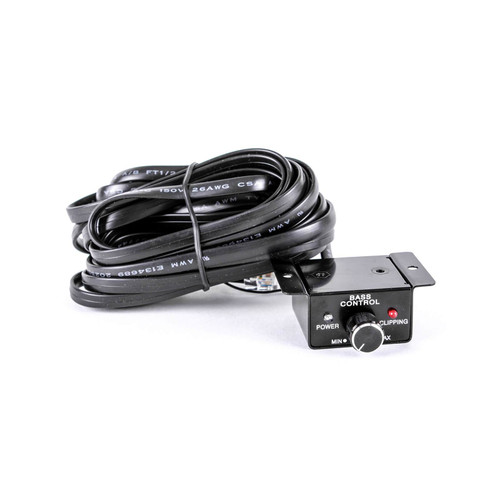

• Remote Bass Knob & Cable Included: Yes
• Dimensions (W x H x L): 9.15" x 2.45" x 17.08"

Channel 1/2 & 3/4 Crossovers:

• Low-Pass Filter: 50Hz - 500Hz
• High-Pass Filter: 50Hz - 500Hz
• Crossover Multiplier: x1 and x10 Multipliers
• Crossover Type (Switchable): High-Pass Filter / Full-Range / Low-Pass Filter

Channel 1/2 Crossovers:

• Low-Pass Filter: 50Hz - 500Hz
• High-Pass Filter: 50Hz - 500Hz
• Crossover Multiplier: x1 and x10 Multipliers
• Crossover Type (Switchable): High-Pass Filter / Full-Range / Low-Pass Filter

Real World Amplifier Dyno Test Results:

• Dynamic (Peak) Power at 2 Ohms: 208 Watts x 4 Channels (14.39v)
• Dynamic (Peak) Power at 4 Ohms: 137 Watts x 4 Channels (14.52v)
• Certified (RMS) Power at 2 Ohms: 154 Watts x 4 Channels (14.48v)
• Certified (RMS) Power at 4 Ohms: 103 Watts x 4 Channels (14.36v)
