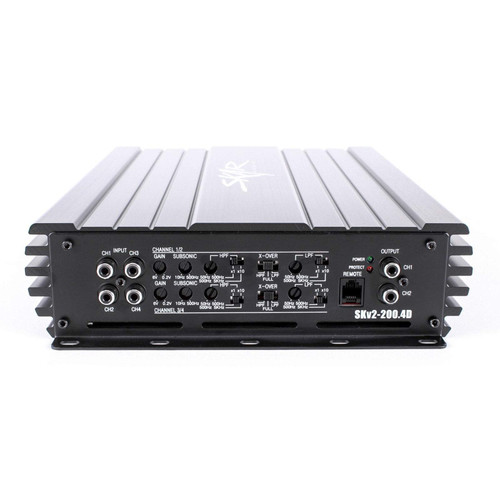

About: Skar Audio SKv2-200.4D 4-Channel Car Amplifier - 320W RMS x 4

The Skar Audio SKv2-200.4D is a competition grade multi-channel class D speaker amplifier that was designed to deliver unequivocal performance and power output. As a part of the flagship SKv2 series of amplifiers from Skar Audio, this model utilizes only the highest quality internal components and features advanced engineering enhancements that allow it to outperform anything else on the market in its power class. The size of this amplifier and the power and performance that it can deliver due to its class D circuitry design is absolutely mind blowing.

If you are looking for the absolute best amplifier to power your "daily driver" sound stage, look no further - this is the amplifier for you. Whether you are looking to power component speakers, pro audio speakers, or a mix of the both, this amplifier is more than capable of powering an entire vehicle's audio system. The SKv2-200.4D is conservatively rated at 800 watts RMS power (200 watts x 4 channels), and at max power output can produce more than an astonishing 1,600+ watts (400+ watts x 4 channels). In addition to its extreme performance capabilities, this amplifier features an advanced heatsink design that allows for maximum cooling, as well as 4-way protection circuitry, enabling the amplifier to operate efficiently at peak output levels for hours on end.

Furthermore, you'll have full reign over your amplifier with the built-in user control panel, featuring variable adjustment tunings for gain level, subsonic filter, high-pass filter with x1-x10 switch, low-pass filter with x1-x10 switch, and crossover switch to select which filters you'd like to use (HPF, Full, LPF). Versatility is key, and so in addition to all the above features - the SKv2-200.4D also has RCA outputs so that you can easily daisy chain multiple amplifiers together. This amplifier utilizes 4-gauge power and ground input terminals which allow for maximum current flow and therefore higher power output.

Specifications:

• Type: Multichannel Car Amplifier
• Class: D
• Power Handling:
• Bridgeable: Yes
• Strappable: No
• Fuse Rating: 80 Amp
• MOSFET Type: High Speed MOSFET Power Supply
• Damping Factor: 200<
• Bass EQ (Boost): No
• Output Channels: 4
• RCA Line Output: Yes
• Turn-On Circuit: Soft Turn-on Circuit
• Working Voltage: 8.5V - 16V
• Subsonic Control: 10Hz - 500Hz
• Tri-Mode Capable: Yes
• Frequency Response: 10Hz - 40kHz
• Built-in Crossovers: HPF / Full-Range / LPF
• RMS Power at 2 Ohms: 320 Watts x 4 Channels (14.4v)
• RMS Power at 4 Ohms: 200 Watts x 4 Channels (14.4v)
• Efficiency at 4 Ohms: 0.84
• Protection Built-in: Yes - 4-Way (Thermal‚Voltage‚Speaker‚DC)
• Power & Ground Inputs: 4 Gauge
• Signal-to-Noise Ratio: 85 dB
• Low Level Input (Gain): 6V - 0.2mV
• Low Pass Filter (Variable): 50Hz - 500Hz
• High Pass Filter (Variable): 500Hz - 5‚000Hz
• Power & Protection Indicators: Yes - LED Indicators
• RMS Power at 4 Ohms (Bridged): 640 Watts x 2 Channels (14.4V)
• Remote Bass Knob & Cable Included: Yes
• Dimensions (W x H x L): 9.15" x 2.45" x 13.18"

Channel 1/2 & 3/4 Crossovers:

• Low-Pass Filter: 500Hz - 5‚000Hz
• High-Pass Filter: 500Hz - 5‚000Hz
• Crossover Multiplier: x1 and x10 Multipliers
• Crossover Type (Switchable): High-Pass Filter / Full-Range / Low-Pass Filter

Channel 1/2 Crossovers:

• Low-Pass Filter: 500Hz - 5‚000Hz
• High-Pass Filter: 500Hz - 5‚000Hz
• Crossover Multiplier: x1 and x10 Multipliers
• Crossover Type (Switchable): High-Pass Filter / Full-Range / Low-Pass Filter
