Descriptions

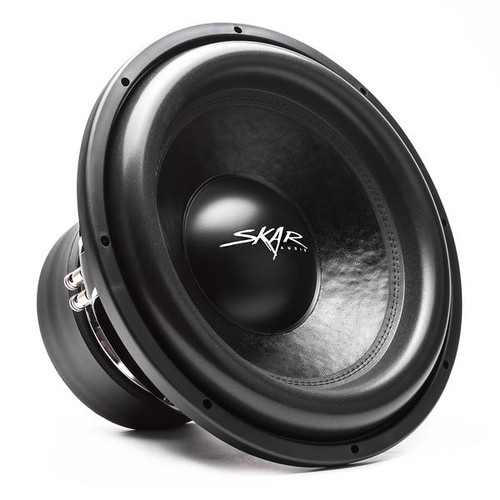

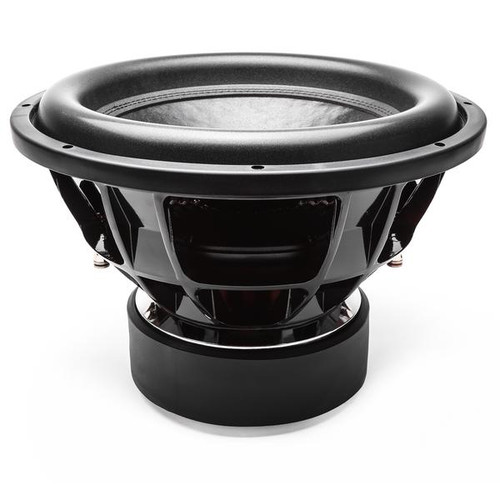

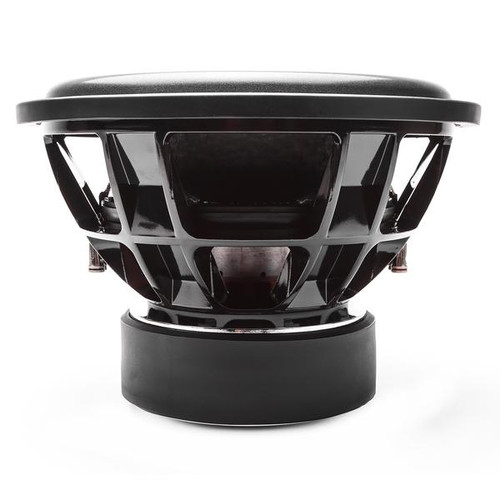

About: Skar Audio VXF-15 15" 1500 Watts RMS Car Subwoofer

The Skar Audio VXF series was engineered to deliver the perfect combination of SQ/SPL found in a competition grade car subwoofer of its power class. The VXF-15 D2/D4 is conservatively rated at 3,000 watts peak power, and 1,500 watts RMS, and is unrivalled when it comes to power handling and overall performance. Designed around achieving a super low "Fs" parameter, the VXF series delivers low end response with absolute authority, all while being versatile enough to sound great across a wide range of music.

The VXF-15 utilizes a high temperature 3-inch copper voice coil, which combined with its massive 300 oz ferrite motor, allows this subwoofer to deliver head turning bass at the highest SPL levels. Furthermore, we integrated a stitched, high roll foam surround, with a competition grade paper cone, ensuring that this subwoofer is setting a new precedent in terms of sound quality and strength. Whether you are looking to be the loudest vehicle at a car show, or just wanting to enjoy the bass in your daily driver at unprecedented sound levels, the VXF series is the perfect choice.

Product Highlights:

• RMS Power Handling: 1500 Watts
• Peak Power Handling: 3000 Watts
• Voice Coil Size: 3"
• Voice Coil Configuration: Dual 2 Ω (D2) or Dual 4 Ω (D4)

Specifications:

• Size: 15"
• Type: Car Subwoofer
• Cone Type: Competition Grade Pressed Paper Cone
• RMS Power: 1500 Watts
• Peak Power: 3000 Watts
• Surround Type: Stitched High Roll Foam Surround
• Voice Coil Size: 3.00"
• Magnet Slug Count: Triple
• Voice Coil Layers: 4
• Voice Coil Material: Copper (Pure Copper)
• Voice Coil Impedance: Dual 2 Ω (D2) or Dual 4 Ω (D4)

Subwoofer Measurements:

• Total Height: 11.15"
• Mounting Depth: 9.78"
• Magnet Diameter: 8.60"
• Cut-out Diameter: 13.86"

Recommended Enclosure Specifications:

• Recommended Sealed Volume: 2.75 ft³
• Recommended Ported Volume: 3.25 ft³
• Recommended Port Area: 47.25 in²
• Recommended Tuning Frequency: 32 Hz
• Enclosure recommendations above do not include subwoofer, bracing, and port displacement
