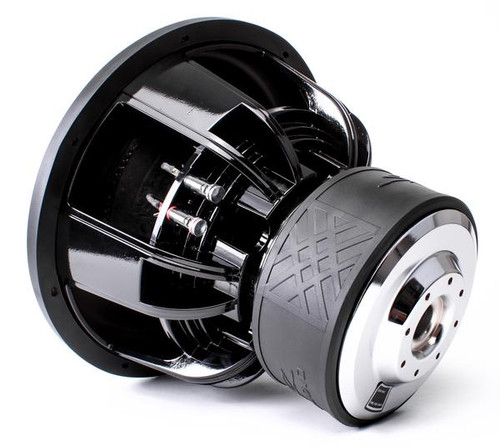

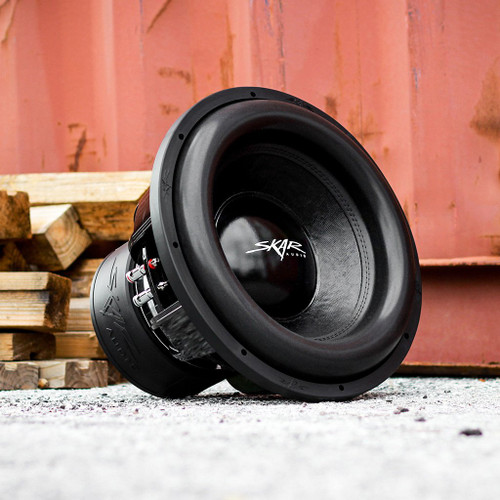

About: Skar Audio ZVX-15v2 15" 1500W RMS Car Subwoofer

The Skar Audio ZVX-15v2 D1 15-inch dual 1-ohm subwoofer is an ultimate powerhouse driver, unrivaled in performance and reliability. The ZVX-15v2 offers the perfect combination of size and power, conservatively boasting a 3,000 watt max power rating. This 15-inch SPL subwoofer was engineered to withstand brutal everyday use while performing efficiently at the highest levels of output power.

The ZVXv2 series utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which deliver the riveting lows this subwoofer can produce. Combine those features with its high roll foam surround and competition grade paper cone, and it becomes evident why the ZVX is a favorite among both everyday users and those using the ZVX in competition.

Product Highlights:

• Voice Coil Size: 3.0"
• RMS Power Handling: 1,500 Watts
• Peak Power Handling: 3,000 Watts
• Voice Coil Configuration: Dual 1 Ω (D1) or Dual 2 Ω (D2)

Specifications:

• Size: 15"
• Type: Car Subwoofer
• Cone Type: Competition Grade Pressed Paper Cone
• RMS Power: 1500 Watts
• Peak Power: 3000 Watts
• Surround Type: Stitched High Roll Foam Surround
• Voice Coil Size: 3.00"
• Magnet Slug Count: Triple
• Voice Coil Layers: 8
• Voice Coil Material: Black Coated Copper (CCAW)
• Voice Coil Impedance: Dual 1 Ω (D1) or Dual 2 Ω (D2)

Subwoofer Measurements:

• Total Height: 12.75"
• Mounting Depth: 11.15"
• Magnet Diameter: 7.85"
• Cut-out Diameter: 14.05"

Recommended Enclosure Specifications:

• Recommended Port Area: 55.0 in²
• Recommended Ported Volume: 4.00 ft³
• Recommended Sealed Volume: Not Recommended
• Recommended Tuning Frequency: 33 Hz
• Enclosure Disclaimer: Enclosure recommendations above do not include subwoofer, bracing, and port displacement
