Skar Audio

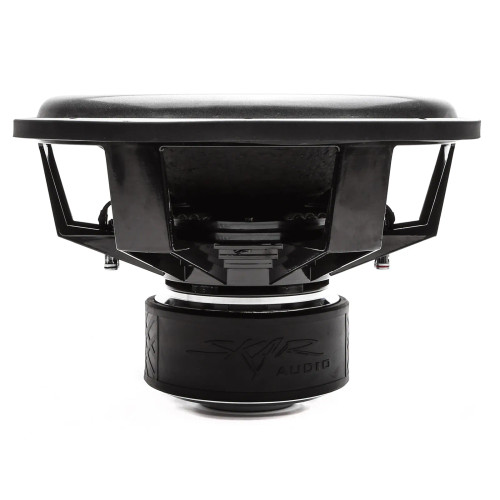

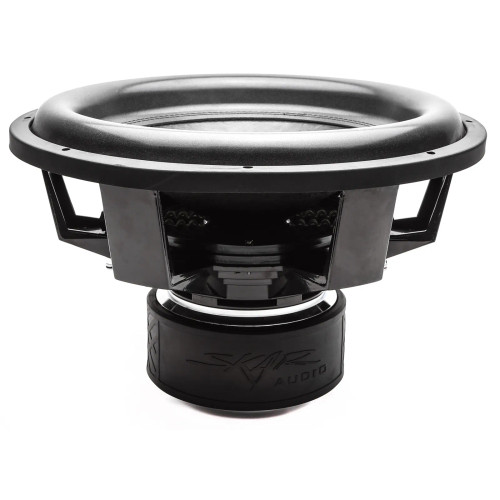

Skar Audio ZVX-18v2 18" 1600W RMS Car Subwoofer

$1,021.99
$1,263.29
19% Off
SKU: ZVX-18v2
UPC: 630125978429
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Skar Audio ZVX-18v2 18" 1600W RMS Car Subwoofer

The Skar Audio ZVX-18v2 18-inch dual 1-ohm or 2-ohm subwoofer is an ultimate powerhouse driver, unrivalled in performance and reliability. The ZVX-18v2 offers the perfect combination of size and power, conservatively boasting a 3,200 watt max power rating. This 18-inch SPL subwoofer was engineered to withstand brutal everyday use while performing efficiently at the highest levels of output power.

The ZVXv2 series utilizes a 3-inch high temperature voice coil and a massive triple slug magnet, which deliver the riveting lows this subwoofer can produce. Combine those features with its high roll foam surround and competition grade paper cone, and it becomes evident why the ZVX is a favorite among both everyday users and those using the ZVX in competition.

Product Highlights:

  • Voice Coil Size: 3.0"
  • RMS Power Handling: 1,600 Watts
  • Peak Power Handling: 3,200 Watts
  • Voice Coil Configuration: Dual 1 Ω or Dual 2 Ω

Specifications:

  • Size: 18"
  • Type: Car Subwoofer
  • Cone Type: CompetitionGrade Pressed Paper Cone
  • RMS Power: 1600 Watts
  • Peak Power: 3200 Watts
  • Surround Type: Stitched High Roll Foam Surround
  • Voice Coil Size: 3.00"
  • Magnet Slug Count: Triple
  • Voice Coil Layers: 8
  • Voice Coil Material: Black Coated Copper (CCAW)
  • Voice Coil Impedance: Dual 1 Ω (D1) or Dual 2 Ω (D2)

Subwoofer Measurements:

  • Total Height: 12.25"
  • Mounting Depth: 10.72"
  • Magnet Diameter: 7.85"
  • Cut-out Diameter: 16.85"
  • Outside Diameter: 18.50"

Recommended Enclosure Specifications:

  • Recommended Port Area: 78.0 in²
  • Recommended Ported Volume: 5.25 ft³
  • Recommended Sealed Volume: Not Recommended
  • Recommended Tuning Frequency: 32 Hz
  • Enclosure Disclaimer: Enclosure recommendations above do not include subwoofer, bracing, and port displacement

Thiele & Small Parameters

ZVX-18v2 D1

ZVX-18v2 D2

BL Factor (BL) 17.1 n/a 20.6 n/a
Free Air Resonance (Fs) 26.1 Hz 26.8 Hz
DC Resistance (Re) Dual 1 Ω Dual 2 Ω
Cone Area (Sd) 1164 cm2 1164 cm2
Mechanical Compliance (Cms) 0.08 mm/N 0.07 mm/N
Electrical Factor (Qes) 0.52 0.57
Mechanical Factor (Qms) 5.10 5.40
Total Factor (Qts) 0.49 0.53
Equivalent Volume (Vas) 151.6 L 136.2 L
Excursion (one way) (Xmax) 29 mm 29 mm
Sensitivity 87.4 dB 88.6 dB
