About: Sky High Car Audio SH-65C2E 6.5" 100W RMS 2-Way Component Set

The SH-65C2E 100 watt  RMS 6.5″ Component Speakers feature a high end design, engineering and manufacturing, utilizing the best quality components to insure the best possible performance. The unmatched clarity and output with bring a smile to the face of anyone who listens.

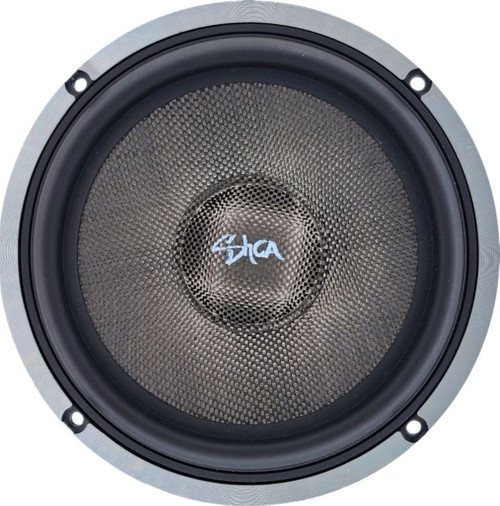

Woofer Specifications:

• Diameter: 6.5″
• Nominal Diameter: 4 Ohms
• Peak Power Handling: 400w
• Program Power Handling: 200w
• AES Power Handling: 100w
• Sensitivity (1w/1m): 89dB
• Frequency Response: 50hz – 12KHz
• Recommended Hi-Pass Crossover: 45Hz

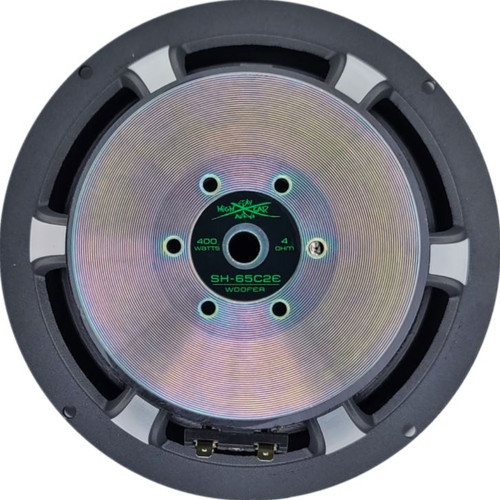

Woofer Motor:

• Voice Coil Diameter: 1.2" (30.5 mm)
• Voice Coil Former Material: Til
• Winding Material: SV
• Cone Material: Carbon Fiber
• Surround Material: Rubber Edge
• Basket Material: Aluminum
• Magnet Material: Ferrite
• Magnet WeightL 20.2 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 19.5L
• Excursion (Xmax): 5mm
•  Free Air Resonance (Fs): 50Hz
• Mechanical Factor (Qms): 7.3
• Electrical Factor (Qes): 0.4
• Total Factor (Qts): 0.38
• Moving Mass (Mms): 12.6g
• Compliance (Cms): 785 mm/N
• Force Factor (BL): 5.8N/A
• Voice Coil Inductance (Le): 60 mH
• Diaphragm Area (Sd): 13.27 cm2
• Dc Resistance (Re): 3.2 0hms
• Mechanical Mass without Air (Mmd): 11.7g

Woofer Measurements:

• Overall Diameter 6.49" (165 mm)
• Front Mount Baffle Cutout: 5.59" (142 mm)
• Mounting Depth: 2.85' (72.5 mm)
• Overall Depth: 3.05/ 77.5 mm)
• Motor Diameter: 3.93" (100 mm)

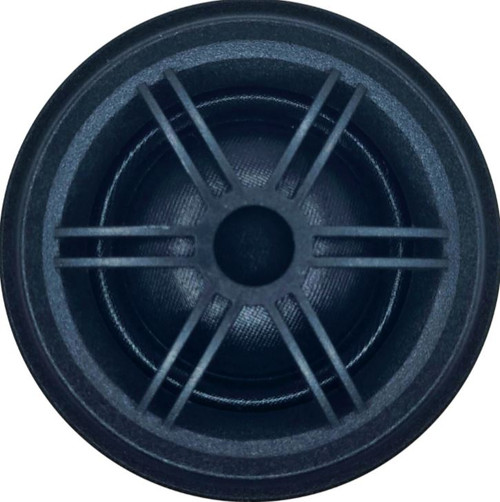

Tweeter Specifications:

• Nominal Diameter: 1.18"
• Nominal Impedance: 4 Ohms
• Peak Power Handling: 60 Watts
• Program Power Handling: 30 Watts
• AES Power Handling: 15 Watts
• Sensitivity (1W/1W): 90dB
• Frequency Response: 800Hz-20Khz
• Recommended Hi-Pass Crossover: 3.8 KHz

Tweeter Motor:

• Voice Coil Diameter: 0.98"
• Voice Coil Former Material: ASV
• Winding Material: CCAW
• Diaphragm Material: Silk
• Magnet Material: Neodymium
• Magnet Weight: 14 oz
• Body Weight: ABS

Tweeter Measurements:

• Overall Diameter: 2" (51 mm)
• Overall Depth: 1.1" (28.1 mm)
• Front Mount Baffle Cutout: 1.85 x 47 mm
• Mounting Depth: 0.7" (18 mm)

Crossover Specifications:

• Passive Crossover Ways: 2 Ways
• Frequency Crossover: 3.2 KHz
• Power Handling: 300 Watts
• Cut Off Slope: 12dV/Oct
• Tweeter Attenuation: 4dB

Crossover Features:

• Capacitor Type: Metac Film
• Coil Type: Inductor
• Terminals Type: Screw Terminal
• Housing Material: ABS
• Adjustments: Tw Att by Switch

Crossover Measurements:

• Overall Length: 4.8" (122 mm)
• Overall Depth: 3.03" (77 mm)
• Overall Height: 1.25" (32 mm)
