About: Sky High Car Audio SH-65C2P 100w RMS 6.5″ Neo Component Set

The SH-65C2P – 100w RMS 6.5″ Component Speakers feature a high end design, engineering and manufacturing, utilizing the best quality components to insure the best possible performance. The unmatched clarity and output with bring a smile to the face of anyone who listens.

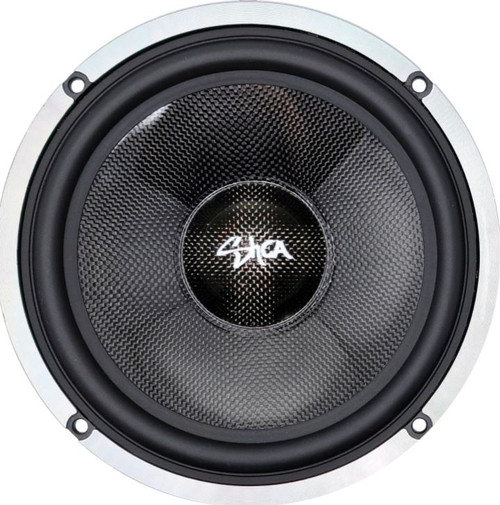

Woofer Specifications:

• Nominal Diameter: 6.5″
• Nominal Impedance: 4 Ohms
• Peak Power Handling: 400w
• Program Power Handling: 200w
• AES Power Handling: 100w
• Sensitivity: 91dB
• Frequency Response: 50Hz – 12KHz
• Recommended Hi-Pass Crossover: 45Hz

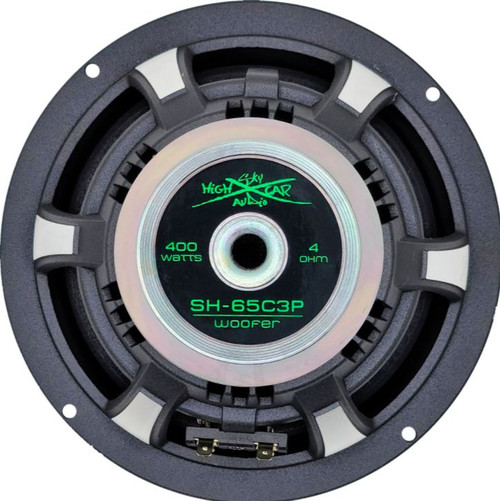

Woofer Motor:

• Voice Coil Diameter: 1.4" (35.5 mm)
• Voice Coil Former Material: Kapton
• Winding Material: SV
• Cone Material: Carbon Fiber + Resin
• Surround Material: Rubber Edge
• Basket Material: Aluminium
• Magnet Material: Neodymium
• Magnet Weight: 3.1 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 11.07L
• Excursion (Xmax): 5 mm
• Free Air Resonance (Fs): 56Hz
• Mechanical Factor (Qms): 10.36
• Electrical Factor (Qes): 0.453
• Total Factor (Qts): 0.434
• Moving Mass (Mms): 19.58g
• Compliance (Cms): 0.408mm/n
• Force Factor (BL): 6.836
• Voice Coil Inductance (Le): 0.1394 mH
• Diaphragm Area (Sd): 138.93 cm2
• Dc Resistance (Re): 3.059 ohms
• Mechanical Mass without Air (Mmd): 18.1g

Woofer Measurements:

• Overall Diameter: 6.49" (165 mm)
• Front Mount Baffle Cutout: 5.62" (143 mm)
• Mounting Depth: 2.81" (71.5 mm)
• Overall Depth: 3.2" (81.5 mm)
• Motor Diameter: 3.14" (80 mm)

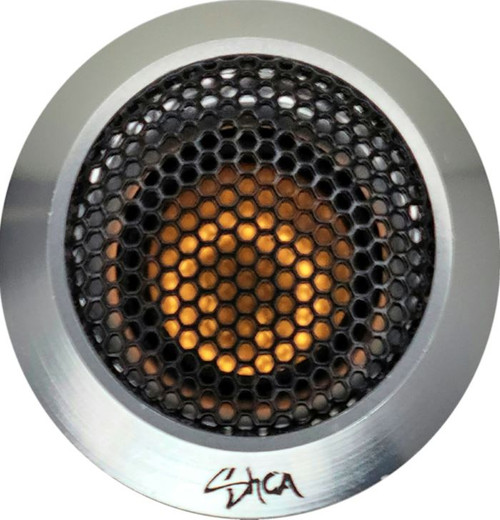

Tweeter Specifications:

• Nominal Diameter: 1.18"
• Nominal Impedance: 4 Ohms
• Peak Power Handling: 60 Watts
• Program Power Handling: 30 Watts
• AES Power Handling: 15 Watts
• Sensitivity (1W/1W): 95.2db
• Frequency Response: 920Hz-20KHz
• Recommended Hi-Pass Crossover: 3.8KHz

Tweeter Motor:

• Voice Coil Diameter: 0.98" (25 mm)
• Voice Coil Former Material: KVC
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material Neodymium
• Body Material: Aluminum

Tweeter Measurements:

• Overall Diameter: 2.28" (58 mm)
• Overall Depth: 1" (26 mm)
• Front Mount Baffle Cutout: 1.85 x 47 mm
• Mounting Depth: 0.65" (16.5 mm)

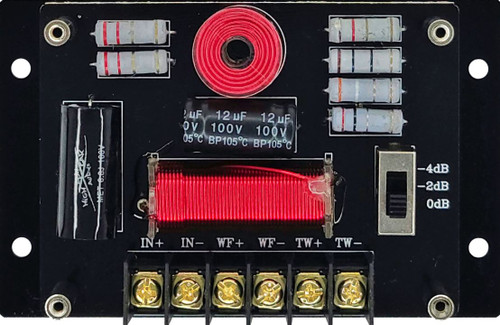

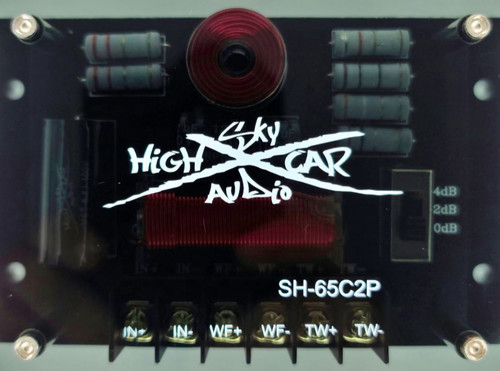

Crossover Specifications:

• Passive Crossover Ways: 2 Ways
• Frequency Crossover: 3.2 KHz
• Power Handling: 300 Watts
• Cut Off Slop: 12dB/Oct
• Tweeter Attenuation: 4 dB

Crossover Features:

• Capacitor Type: Metac Film
• Coil Type: Inductor
• Terminals Type: Screw Terminal
• Housing Material: ABS
• Adjustments: Tw Att by Switch

Crossover Measurements:

• Overall Length: 4.8" (122 mm)
• Overall Depth: 3.03" (77 mm)
• Overall Height: 1.25" (32 mm)
