Descriptions

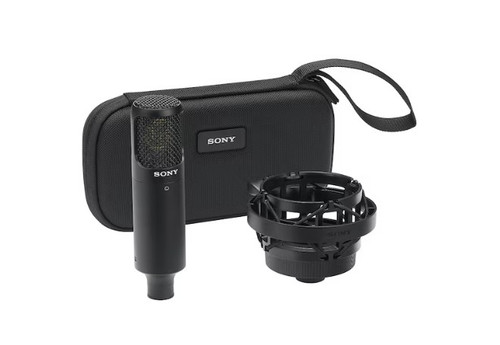

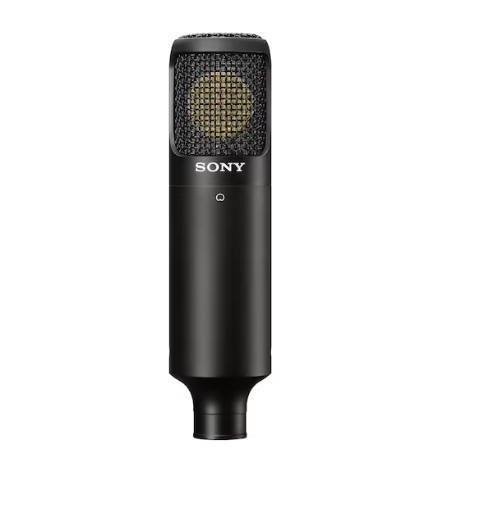

About: Sony C-80 Studio Condenser Microphone

Uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in the C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors. The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.

Excellent Sound Quality

Powerful and rich mid-low frequency range provides vocals and voice recordings with a core sound and presence.

Dual Diaphragm Configuration

Dual diaphragm configuration realizes stable recording/distribution by suppressing sound characteristics changes with distance (proximity effect).

Noise Elimination Construction

Two-part metallic body structure succeeded from C-800G/C-100 microphone prevents acoustic vibration resulting in low noise and clear sound.

Low-Cut Filter

Low-Cut filter switch helps eliminate low-frequency nose and proximity effect.

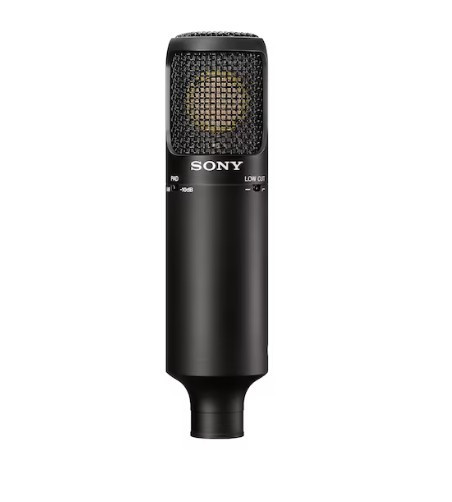

Pad Switch

An -10dB pad switch on the microphone provides added headroom and minimizes distortion caused by transient peaks.

Specifications:

• Capsule Type: Condenser Microphone
• Frequency Response: 20Hz～20kHz
• Directivity: Uni directional
• Sensitivity *[1]
• -30 dB
• (deviation ±3 dB)
• (0 dB=1 V/Pa, 1 kHz)
• Output Impedance *[2]: 90Ω±15%, Balanced
• Dynamic Range: More than 125.5 dB
• Signal-to-Noise Ratio *[3]: 81.5dB
• Inherent Noise *[4]
• Less than 12.5 dB SPL
• (0 dB=2 × 10-5 Pa)
• (IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa)
• Maximum Input Sound Pressure Level *[5]
• More than 138 dB SPL
• (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 × 10-5 Pa)
