Descriptions

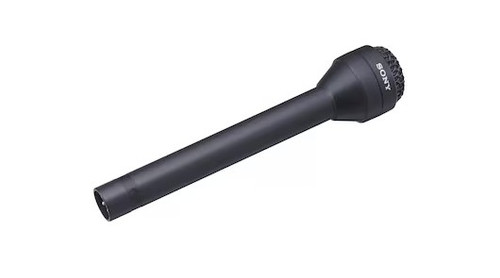

Above: Sony F-112 High Quality Dynamic Microphone

The Sony F-112 is a high-quality dynamic microphone, specifically designed for field production and newsgathering applications

Superior Sound Quality

Incorporating an omni-directional microphone capsule, the F-112 delivers a high sensitivity of -52 dB (0 dB=1 V/Pa.), allowing clear voice pick-up from any direction.

Flat-and-wide Frequency Response

The F-112 has a flat-and-wide frequency response (60 Hz to 18 kHz), which provides smooth and natural sound reproduction.

Robust and Sophisticated Design

The F-112 has been designed with special considerations for heavy-duty field use. The body is made of metal, offering a high level of durability to withstand severe conditions encountered in demanding sound pick-up scenarios. The connector side is made of robust brass for repeating cable connections. In addition, its well-balanced design allows comfortable handling when used with the plug-on transmitters.

Specifications:

• Capsule Type: Dynamic
• Frequency Response: 60 Hz to 18 kHz
• Directivity; Omni-Directional
• Sensitivity *[1]: -54 dB ±3 dB
• Output Impedance *[2]: 400Ω±20%, Balanced
• Induction Noise From External Magnetic Field *[3]: 5 dB SPL or less
• Wind Noise *[4]: Less than 50 dB SPL
• Connector: XLR-3-12C (male)
• Power Requirements: No power required
• Dimensions *[5]
• φ41.4 x 220 mm
• φ1 11/16 x 8 3/4 inches
• Mass
• Approx. 6 oz
• Approx. 215 g
• Supplied Accessories: Operating instructions (1)
• Notes:
• [1] 0 dB = 1 V/Pa, at 1 kHz
• [2] Output impedance at 1 kHz
• [3] dB SPL/1E-7 T, 0 dB SPL = 20 μPa
• [4] Wind noise at 2m/s (0 dB SPL = 20 μPa)
• [5] The values for dimensions are approximate.
