Descriptions

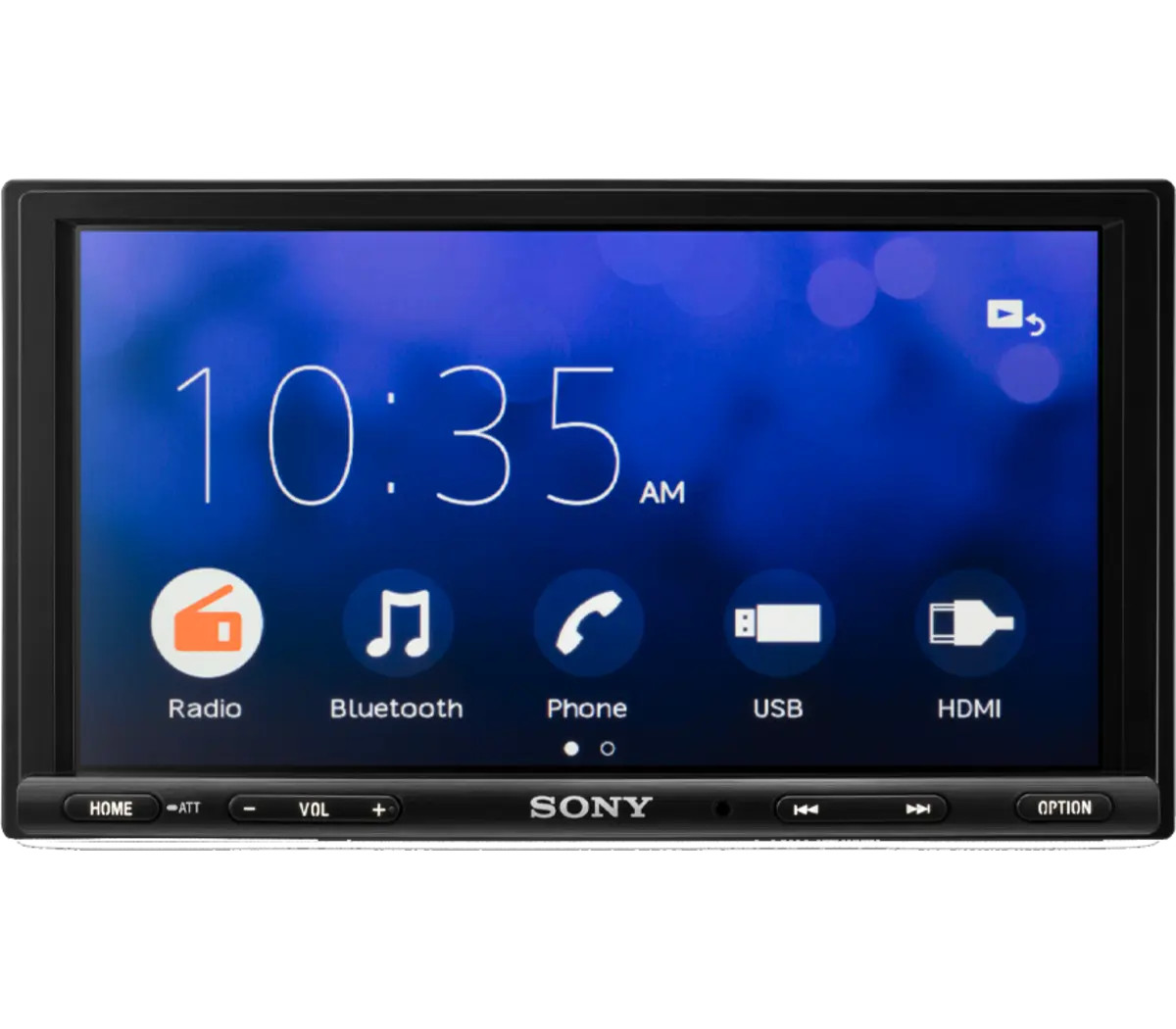

About: Sony XAV-3600 6.75" Anti-Glare Touchscreen Multimedia Receiver

Connectivity and extensibility with less glare

Enjoy mirrored smartphone contents with WebLink® for every journey.1 HDMI connectivity allows you to hook up an external audio and visual source device. An anti-glare 6.75 inch diagonal (17.1 cm) touchscreen wakes up right after turning on the ignition2, and gives you intuitive control over music, communications and more.

HDMI Connectivity

Newly added HDMI connectivity allows you to hook up an external audio and visual source device.

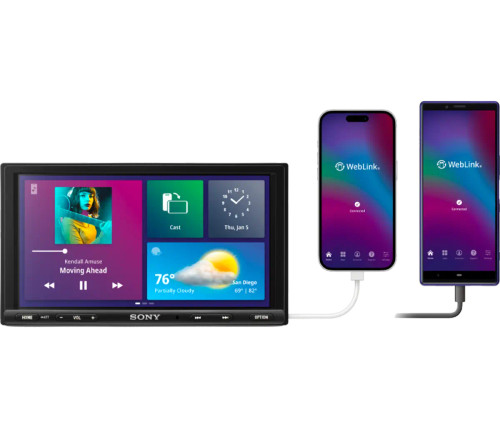

WebLink® with Updated Interface

WebLink® is a lightweight app delivery platform designed especially for in-vehicle use. Using Android™ or iOS device connection means reliable, responsive infotainment anytime on the road. Download the WebLink Host app for your smartphone and hook up with a USB cable.

YouTube™ playback on WebLink®

With WebLink®, you can watch your favorite YouTube videos right on the XAV-3600 screen. Open the YouTube app from its home screen to see what’s trending, or browse by category, or you can even search for specific contents. For safety reasons, YouTube is not available
while driving.

Quick Wake Up

With Quick Wake Up, you're ready to go right after turning on the ignition.

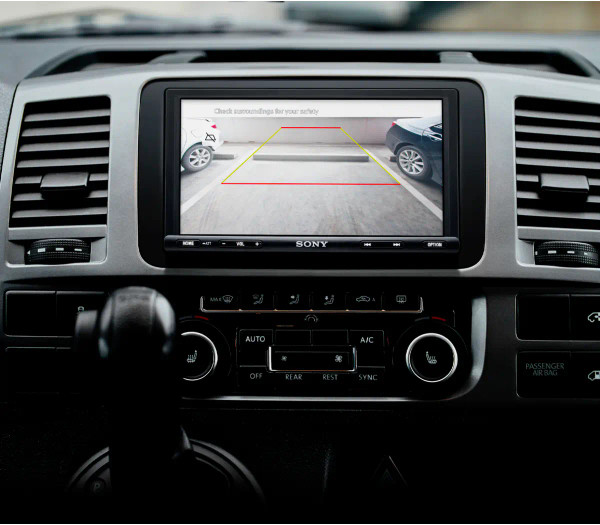

Rear-view camera ready with customizable guidelines

Got a rear camera installed? View its feed on the screen, along with customizable guidelines to help you reverse safely.

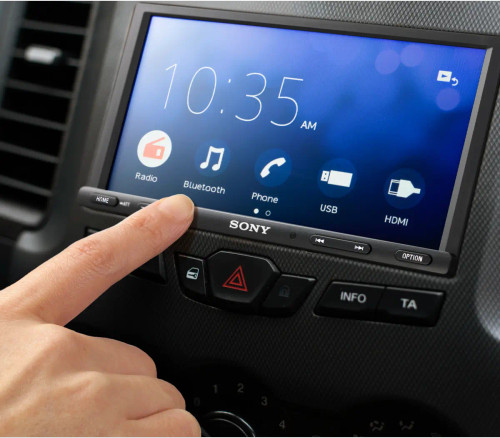

Simple button controls

Instantly access your most used features, such as volume, source, and sound settings, for safe and easy operation on the road.

10-band equalizer

Tailor the sound to your personal preference with the 10-band graphic equalizer.

Customizable Wallpaper

Easily change the wallpaper to the preset color choices or use a favorite JPEG image uploaded from a USB device.

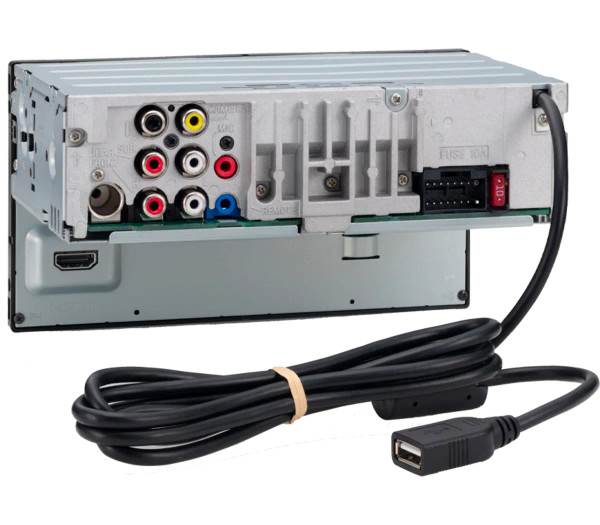

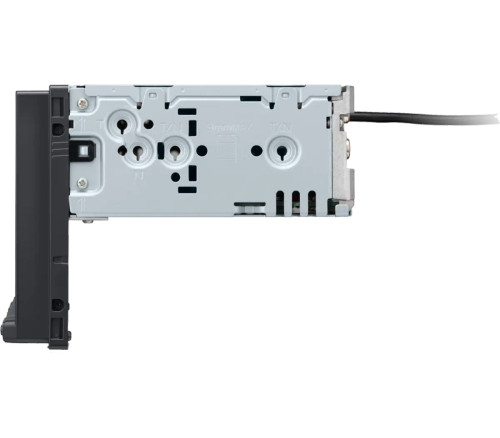

Easy installation, with a compact rear chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cables and other accessories in the space behind the display.

Environment in mind

Sony products are not only designed to be stylish but also with the environment in mind. For the XAV-3600 packaging, up to 90% of the cushions are made of paper, and compared to the prior model, we reduced printed information so we use around 80% less ink, reflecting Sony's commitment to reducing environmental impact.

HDMI Specifications:

• HDMI Version: 1.4
• HDCP Version: 1.4
• Video Input Signal: 480p, 576p, 720p
• AudioInput Signal: 32kHz, 44.1kHz, 48kHz
• CEC: No

USB Specifications:

• USB Version: USB2.0 (High speed)
• USB Charging Spec. (Max current/Voltage): Yes / 1.5A
• Mass Storage Class (MSC): Yes
• Media Transfer Protocol (MTP): No
• File System: exFAT, FAT12/16/32
• Max Layer/Folder/File number: 8/1000/20000
• Plug and Play: No
• List Function: Yes
• Pause: Yes
• CUE/REV: Yes (Video: lock search)
• Resume: Yes
• Repeat: TRACK/FOLDER/DRIVE
• Repeat Initial: All
• Shuffle: OFF/FOLDER/DEVICE
• Shuffle Initial: Off
• Audio Codec: PCM/MP3/WMA/AAC/FLAC
• Audio Playable File Extension: wav/.mp3/.wma/.m4a/.flac
• Video Codec: MPEG4-SP/AVC(H.264 Baseline)/WMV/MKV/XviD
• Video Playable File Extension: .mp4/.wmv/.mkv
• Album Artwork Indication: No
• Meta Data Indication: Yes (Except Flac and WAV)

Supplied Accessories:

• Warranty Card: Yes (NA for 1 year)
• Fitting Frame: No
• Trim Ring (Collar): No
• Power Connector (Normal): Yes
• Power Connector (ISO): No
• Maruti Connector Cable: No
• External Microphone: Yes (Wired)
• Steering Remote Control Cable: RC-SR1
• MRP Sticker for 'IN' version (India): No
• Maruti-CDO Stickers (MGA/Packing List/PartsNo.): No

Sound Adjustment:

• EQ Bands: 10Band Graphic Equalizer
• Extra Bass: Yes (Off/1/2)
• Dynamic Stage Organizer (DSO): Yes
• Time Alignment: No
• Balance initial: Center
• Fader initial: Center
• High Pass Filter initial: OFF
• Low Pass Filter initial: 100Hz
• Subwoofer Phase: Yes (Normal/Reverse)
• Subwoofer Phase initial: Normal
• Subwoofer Adjust: Yes
• Subwoofer Adjust initial: 0dB

Bluetooth Specifications:

• Bluetooth Version: Bluetooth Version 3.0
• HFP: Yes (1.6)
• HSP: No
• A2DP: Yes (1.3)
• OPP: No
• DUN: No
• SPP: No
• AVRCP: Yes (1.3)
• AVRCP (MTE): No
• PBAP: Yes (1.1)
• SAP: No
• VDP: No
• BIP: No
• RF ON/OFF: Yes
• RF ON/OFF initial: ON

BT Phone:

• Recent calls (No.of): Yes
• Phonebook code: UTF8
• Phonebook Access via PBAP: Yes
• Alphabetical Phonebook Sorting (Built-in): No
• Alphabetical Phonebook Sorting (PBAP): Yes
• Phone Data Password Lock: No
• Connection status (maximum No.): [1HFP/PBAP+1Audio]
• Display for Connecting List: No
• Any Key Answer: No
• Auto Answer: No
• DTMF: No
• Noise Canceller: Yes
• Echo canceller: Yes
• Ring alert (Internal/Cellular): No
• Ring Volume Level Control: Yes
• Call Volume Level Control: Yes
• Mic Gain Adjustment: Low/Mid/High
• Mic Gain Adjustment Initial: Mid
• Tel Out Channel: Front / Rear / All
• Voice Dial Activation: No
• Battery Remainder Indication: Yes
• Signal Strength Indication: Yes
• Speed Dial: Yes (6 memories)
• Last Dialed Call: Yes (select from the dialed call history)
• Phonebook (Built in): No
• Internal Ringtone: 1 (2016 Sony Mobile Ringtone)

BT Audio:

• Audio Codec: SBC / AAC
• Pause: Yes
•  CUE/REV: Yes
• Track +/-: Yes
• Folder +/-: Yes
• Audio Level Adjustment: Yes (-6dB to +6dB)
• Audio Level Adjustment Initial: 0dB
• Repeat Control: Yes
• Shuffle Control: Yes
• Meta Data Indication: Yes

General:

• Maximum output power (4ohms_1kHz_16V) (W): 55W
• Speaker impedance (ohms): 4-8Ω
• CTA2006 output power (W): 20W
• CTA2006 S/N (dBA): 80dBA
• Source Sound Memory (SSM): Yes
• Clock: 12H
• Beep initial: On
• Steering Wheel Remote Initial: Preset
• Demo Mode: Yes
• Display Off Mode: Yes
• Dimmer: Yes
• Dimmer Area: Display Monitor and Key
• Dimmer Method: Auto/Manual select
• Dimmer Adjust: Yes
• Dimmer Adjust Initial: 0
• Color System: NTSC/PAL
• Color System Auto Switch: Yes
• Aspect: Yes
• Picture EQ: Yes
• Wallpaper Initial: Blue
• Wallpaper Customization: Yes
• Parking Control: Yes
• Rear View Camera-In Marker Setting: Yes
• Firmware Upgradability: Yes
• Accessibility: Closed Caption / TTS: No support
• Power Connector Type: 16P
• ANT Connector Type: JASO
• Dimensions (W x H x D): 178 x 100 x 139
• Mounting Dimensions (W x H x D): 182 x 111 x 120 mm
• Weight: 1 kg
• POP: No
• Aspect Initial: Full
• Picture EQ Initial: Dynamic

Smartphone Linkage:

• Weblink: Yes (WebLink® CAST)
• Voice Command (Smartphone Function) Activate: No

Expandability:

• Rear View Camera Input: Yes
• Video out: No
• USB: Yes (Rear x1)
• Bluetooth: Yes
• Pre-out: 3 Pre (Front / Rear / Sub x 1)
• Pre-out output level (V): 2Vrms
• AUX IN: No
• A/V IN: No
• SiriusXM Ready: No
• HDMI In: Yes
• Built-in Microphone: No
• External Microphone: Supplied

Display:

• Touch Screen: Resistive + AG
• LCD Type: TFT Active Matrix
• Screen Aspect Ratio: 16:9
• Screen Size Diagonal: 6.75" (171 mm)
• Screen Size (W x H): 151.8 x 79.68 mm
• Resolution (DOT): 800 × 480
• Brightness: 400 cd/m2
• Viewing Angle (Contrast Ratio 10-1): 75/75/60/70 (L/R/U/D)

Multi-Language:

• Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• Menu/Caution Initial: English
• Meta Data Indication: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian

Tuner:

• FM Tuning range (MHz): 87.5-107.9
• Selectable FM Step Frequency: No
• FM (Tuning range/step/de-emphasis) : 65-74MHz/30kHz/50us (OIRT): No
• FM (Tuning range/step/de-emphasis) : 87.5-108MHz/50kHz/50us: No
• FM (Tuning range/step/de-emphasis) : 87.5-107.9MHz/200kHz/75us: Yes
• FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/75us: No
• MW Tuning range (kHz): 530-1710
• Selectable AM Step Frequency: No
• MW (Tuning range/step) : 531-1602kHz/9kHz: No
• MW (Tuning range/step) : 530-1710kHz/10kHz: Yes
• LW Tuning range (kHz): No
• LW (Tuning range/step) : 153-279kHz/Seek 9kHz, Manual 1kHz: No
• SW (Tuning range/step) : 5950-6205kHz/5kHz: No
• RDS/EON: Yes (RBDS)
• Preset: FM18/AM12
• Auto Memory: BTM
• AF: No
• FM S/N ratio (mono) (dB): 70
• FM Channel separation (dB): 45
• FM Frequency response (Hz): 20 - 15,000
• MW/LW/SW Sensitivity (75 Ω) MW/LW/SW (μV): 32
• DAB: No
• HD Radio embedded: No
• TA: No
• FM Usable sensitivity (75 Ω)(dBf): 7
• FM Selectivity (400 kHz) (dB): 75

Panel Design:

• Key Illumination: Yes (White)
• Panel Detachability: No
• Panel Surface Finish Color: Black
