SounDigital

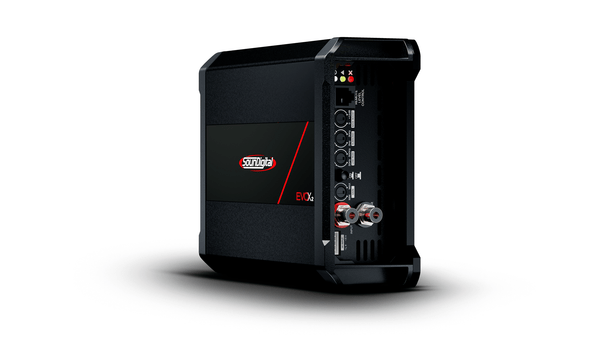

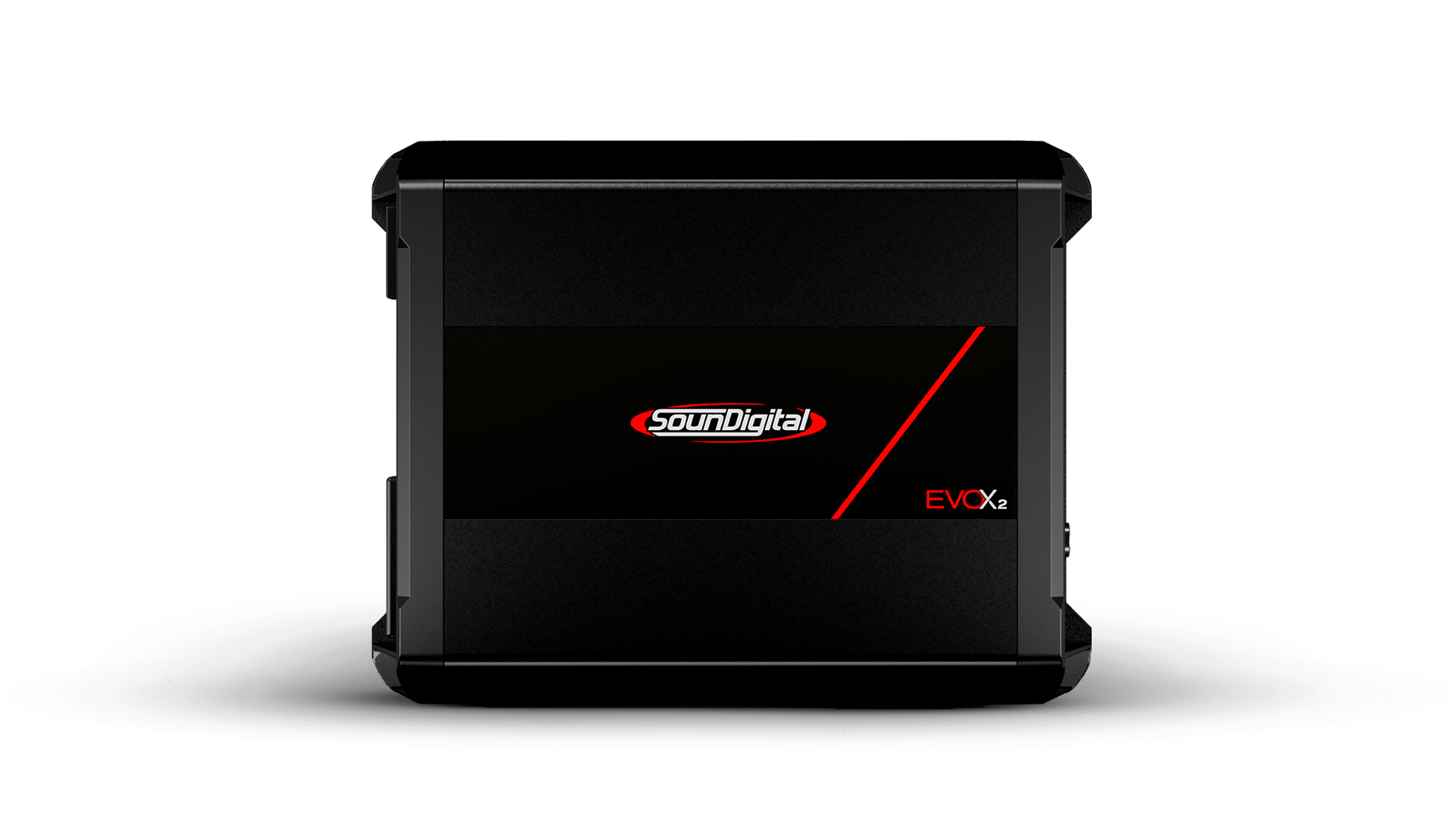

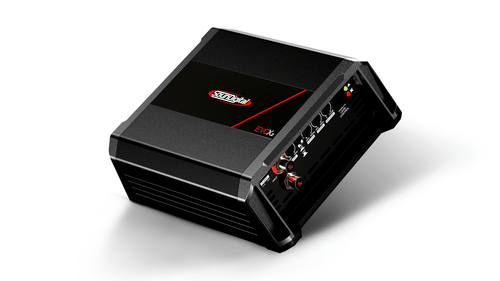

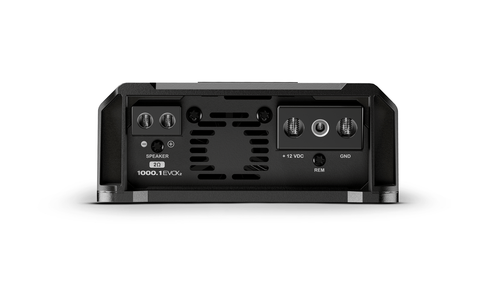

SounDigital 1000.1 EVOX2 1000W RMS Class D Monoblock Amplifier

$799.99
$699.99
SKU:
1000.1EVOX2
Condition:
New
Availability:
Special Order - Usually Ships in 4-8 Days
Shipping:
Calculated at Checkout

SounDigital 1000.1 EVOX2 1000W RMS Class D Monoblock Amplifier

$799.99
$699.99

SounDigital 1000.1 EVOX2 1000W RMS Class D Monoblock Amplifier

$799.99
$699.99

About: SounDigital 1000.1 EVOX2 1000W RMS Class D Monoblock Amplifier

The 1000.1 EVOX2 is a compact, modern amplifier that delivers 1000W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications:

  • 1000.1 EVOX2 – 1 OHM:
    • Power @ 1Ω: 1 X 1000 WRMS
    • Power @ 2Ω: 1 X 721 WRMS
    • Power @ 4Ω: 1 X 476 WRMS
  • 1000.1 EVOX2 – 2 OHMS:
    • Power @ 1Ω: N/A
    • Power @ 2Ω: 1 X 1000 WRMS
    • Power @ 4Ω: 1 X 739 WRMS
  • Frequency Response (-3dB): 5Hz ~ 25kHz
  • Subsonic Filter (12dB/oct.): 5Hz ~ 40Hz
  • Low Pass Filter (12dB/oct.): 50Hz ~ 500Hz
  • Bass Boost: 0dB ~ 12dB @ 50Hz
  • Operating Voltage: 8V ~ 16V
  • SNR: 94dB
  • Input Sensitivity (RCA): 0.2V ~ 2V
  • Input Sensitivity (High Level input): 1.5V ~ 15V
  • Current Draw (music):
    • 1Ω: 44A
    • 2Ω: 45A
  • Current Draw (max.):
    • 1Ω: 88A
    • 2Ω: 90A
  • Total Efficiency:
    • 1Ω: 89%
    • 2Ω: 86%
  • Damping Factor (@100Hz nominal impedance): >3000
  • Power Cable: 16mm² / 5 AWG
  • Speaker Cable: 2 x 4.0mm² / 11 AW
  • Recommended Fuse* (music): 50A
  • Recommended Battery (minimum): 50Ah
  • Dimensions (W x L x H): 5.4" x 7.1" x 2.2" (13.6 x 18.1 x 5.4 cm)
  • Weight: 2.46 lb (1.12 kg)
