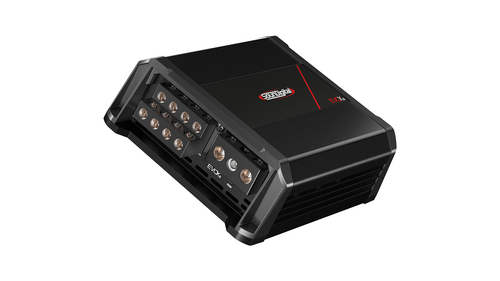

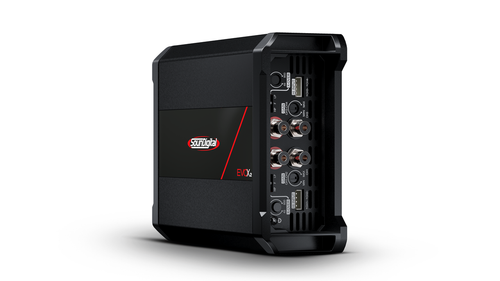

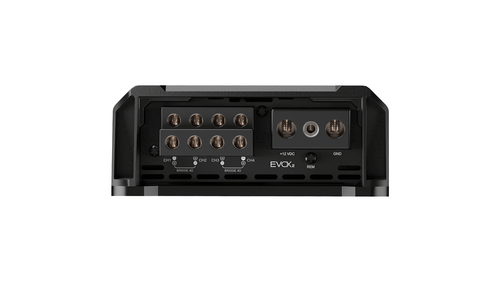

SounDigital 1200.4EVOX2 4-Channel Amplifier - 300W RMS x 4

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,069.99

SKU:: 1200.4EVOX2
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

SounDigital 1200.4EVOX2 4-Channel Amplifier - 300W RMS x 4

$1,069.99

Description
Shipping & Returns

Description

About: SounDigital 1200.4EVOX2 4-Channel Amplifier - 300W RMS x 4

The 1200.4 EVOX2 is a compact, modern amplifier that delivers 1200W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications:

1200.4 EVOX2 – 2 OHMS:

Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 131 WRMS
Bridge Power @ 2Ω: 2 X 600WRMS
Bridge Power @ 4Ω: 2 X 396WRMS

1200.4 EVOX2 – 4 OHMS:

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 300 WRMS
Power @ 4Ω: 1 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600 WRMS

Frequency Response (-3dB): 5Hz ~ 22kHz
Low Pass filter (12dB/octave): 45Hz ~ 850Hz
High Pass filter (12dB/octave): 45Hz ~ 850Hz
Operating Voltage: 8V – 16V
SNR: 91dB
Input Sensitivity (RCA): 0.16 ~ 2V
Input Sensitivity (High Level input): 1.32V ~ 14.3V
Current Draw (music):

1Ω: 55A
2Ω: 52A

Current Draw (max.):

1Ω: 110A
2Ω: 105A

Total Efficiency: 85%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 16mm²(5 AWG)
Speaker Cable 2 x 2.5mm² (13 AWG)
Recommended Fuse (Music): 60A
Recommended Battery (Music): 60Ah
Dimensions (W x L x H): 5.4" x 7.1" x 2.2" (13.6 x 18.2 x 5.5 cm)
