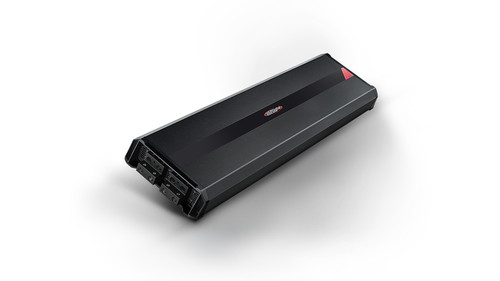

SounDigital 20000.1EVOX-1 20,000 Watts RMS Class D Monoblock Amplifier - 1 Ohm

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

SounDigital

SounDigital 20000.1EVOX-1 20,000 Watts RMS Class D Monoblock Amplifier - 1 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$5,499.99

$4,999.99

SKU:: 20000.1EVOX-1
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

SounDigital 20000.1EVOX-1 20,000 Watts RMS Class D Monoblock Amplifier - 1 Ohm

$5,499.99

$4,999.99

Description
Shipping & Returns

Description

About: SounDigital 20000.1EVOX-1 20,000 Watts RMS Class D Monoblock Amplifier - 1 Ohm

The 20000.1 EVOX is a compact, modern amplifier that delivers 20000W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications:

20000.1 EVOX – 1 OHM:

Power @ 1Ω: 1 X 20000W RMS
Power @ 2Ω: 1 X 13200W RMS
Power @ 4Ω: 1 X 8712W RMS

Frequency Response (-3dB): 5Hz ~ 500kHz
High Pass Filter (12dB/octave): 3Hz ~ 30Hz
Low Pass Filter (12dB/oct.): 50Hz ~ 500Hz
Bass Boost: 0dB ~ +12dB
Bass Boost Frequency: 35Hz ~ 55Hz
Operating Voltage:9V ~ 16V
SNR: 76dB
Input Sensitivity (RCA): 0.8V ~ 4V
Current Draw (music): 980A
Current Draw (max): 1960A
Total Efficiency: 71%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 90mm² (000 AWG)
Speaker Cable: 2 x 21mm² (4 AWG)
Remote Cable: 1.5mm² (15 AWG)
Recommended Fuse (music): 1000A
Recommended Battery (minimum): 1000Ah
Dimensions (W x L x H): 8.9" x 34" x 2.8" (20.4 x 86.3 x 7.1 cm)
Weight: 14.64 kg / 32.27 lb
