SounDigital

SounDigital 800.4EVOX2-4 4-Channel Amplifier - 200W RMS x 4

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$929.99

$849.99

SKU:: 800.4EVOX2-4
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

SounDigital 800.4EVOX2-4 4-Channel Amplifier - 200W RMS x 4

$929.99

$849.99

Description
Shipping & Returns

Description

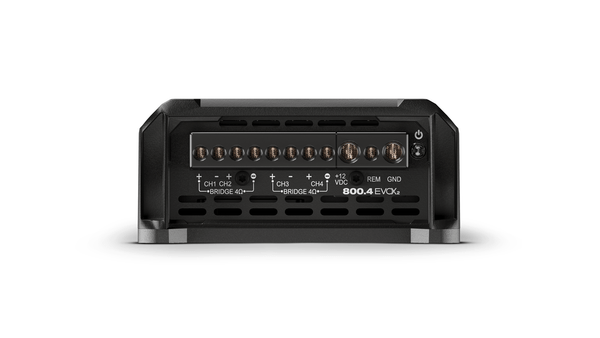

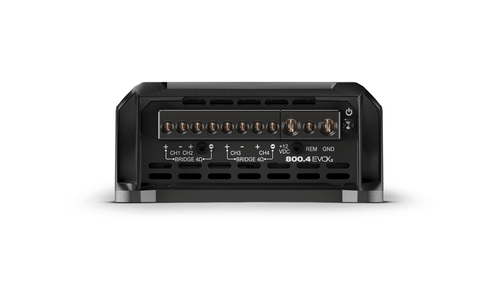

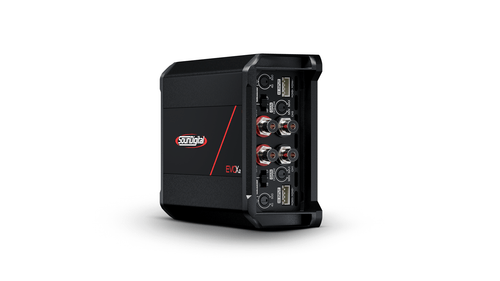

About: SounDigital 800.4EVOX2-4 4-Channel Amplifier - 200W RMS x 4

The 800.4 EVOX2 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications:

800.4 EVOX2 – 4 OHMS:

Power @ 2Ω: 4 X 200W
Power @ 4Ω: 4 X 132W
Bridge Power @ 4Ω: 2 X 400W
Bridge Power @ 8Ω: 2 X 264W

Frequency Response (-3dB): 5Hz ~ 22kHz
Low Pass Filter (12dB/octave): 45Hz ~ 850Hz
High Pass Filter (12dB/octave): 45Hz ~ 850Hz
Operating Voltage: 8V ~ 16V
SNR: 91dB
Input Sensitivity (RCA): 0.2V ~ 2V
Input Sensitivity (High Level input): 1.5 ~ 15V
Current Draw (Music): 35A
Current Draw With Resistive Load: 88A
Total Efficiency: 80%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 10mm² (7 AWG)
Audio Output Cable: 2 x 1.5mm (15AWG)
Recommended Fuse (Music): 40A
Recommended Battery (Minimum): 60Ah
Dimensions (W x L x H): 4.4" x 5.8" x 2.0"
