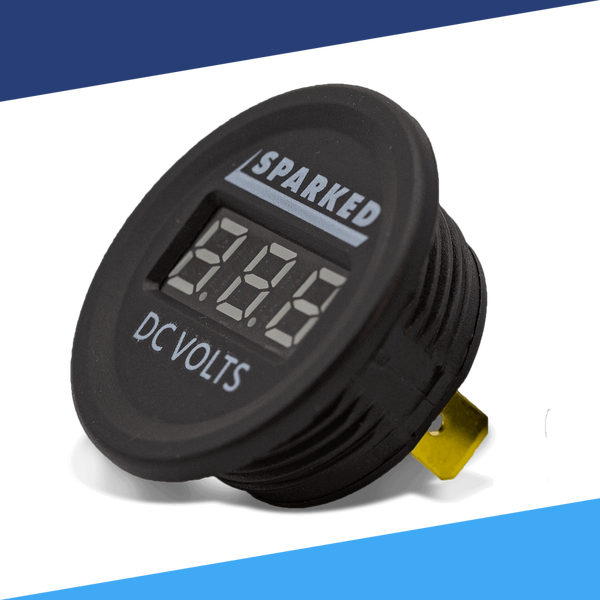

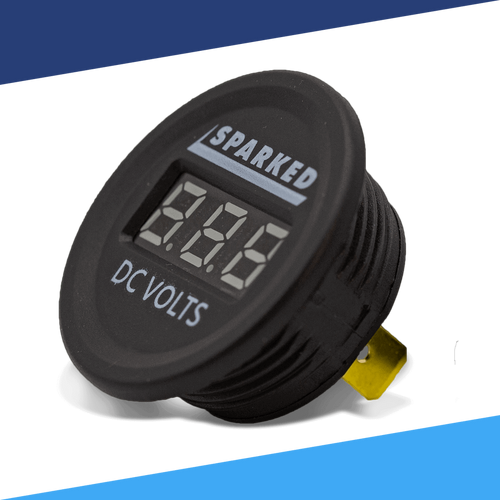

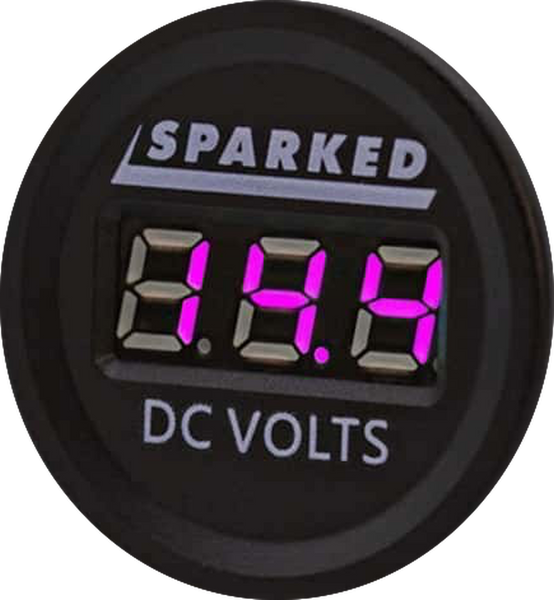

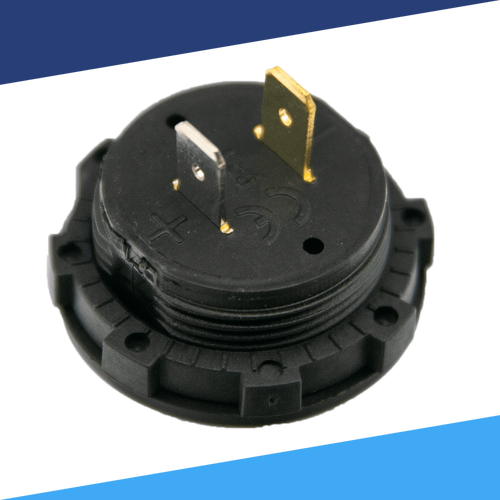

About: Sparked Innovations Single 12VDC Voltmeter Battery Voltage Monitor

Universal for any 12-volt project. Easily fits in automotive or marine dash panels. Similar in size to an automotive cigarette lighter mounting hole. IP67 waterproof rating allows it to be used on motorcycles or boats to monitor battery voltage. Circular housing makes it easy to mount.

Specifications:

5-30v DC operation range
3 digit digital display
Anti-reverse, anti-short circuit protection
ABS and nylon housing. Impact resistant and IP67 rated for water submersion up to 1 meter
Operating temp -25~80C
Accuracy class 0.1
Mounting hole diameter – 29.2mm
Overall diameter – 36.5mm
Mounting depth – 31.5mm including terminals
Digit height – 8mm

Features:

Color: Blue, Green, Purple, Red, White
12VDC voltage range: 5~30VDC
Digit height: 8mm
Mounting depth: 31.5mm (including terminals)
Mounting hole diameter: 29.2mm
Operating temperature: -11.2°F to 176°F, -25°C to 80°C
Overall diameter: 36.5mm
Waterproof rating: IP67
Available in Blue, Green, Purple, Red or White
