About: Stetsom EQX764 7 Band Graphic Equalizer

Features:

• 7 Band Graphic Equalizer
• Dedicated Output for Subwoofer
• RCA Line-Drive Outputs to 10V RMS
• Controls on the Front Panel

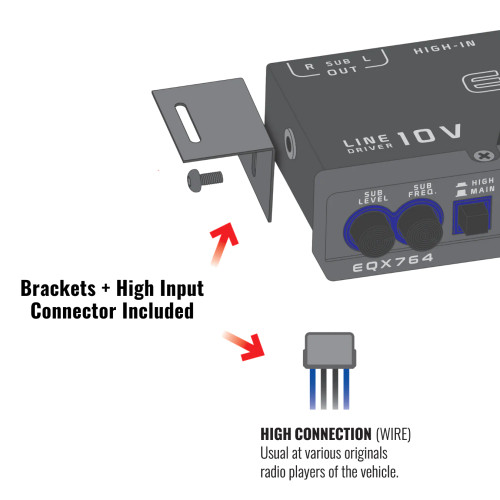

• Input Connections: RCA & High Input (Wire)
• Selection Switch: Input RCA & High Input

More Quality

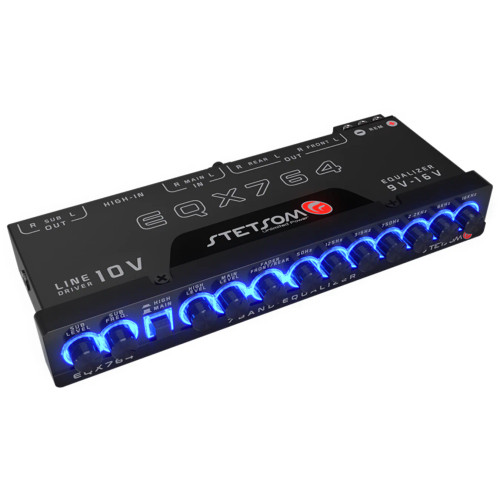

The EQX764 is a graphic equalizer equipped with 7 equalization bands, 4 input channels and 6 output channels. It has been developed to offer maximum performance and quality, with outputs that can reach up to 10 VRMS, working like line driver, supplying more voltage to your amplifiers. Its modern, robust design makes installing and adjusting the equalizer easy.

Graphic Equalizer

The EQX764 has dedicated outputs for subwoofer, in addition to the front and rear outputs, with various controls for adjusting and equalizing the audio including:

• Dedicated Level and Frequency Controls for the Sub Output
• An Input Channel Selection Switch (Main or High)
• Front/Rear Fader Control for Adjusting the Balance between the Front and Rear Outputs
• Blue LEDs Illuminate the Controls for East Adjustments, even in the Dark
• 7-Band Equalization Controls: 50Hz, 125Hz, 315Hz, 750Hz, 2.2Hz, 6KHz and 16 KHz

Specifications:

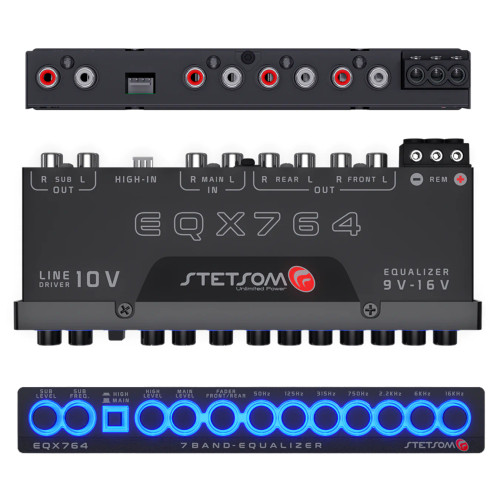

• Inputs: Main in (RCA) and High in (Wire)
• Outputs: Sub Out, Front and Rear
• Audio Controls:
• Sub Level and Frequency
• Input Selector (Main and High)
• Level (Main and High)
• Fader (Front and Rear)
• Equalizer (-12db ~ +12dB)
• Sub Frequency Control: 60Hz ~ 90Hz
• V Out @ 14:4V:
• Sub Out: 10V RMS
• Front & Rear: 8.5V RMS (Line Driver)
• Input Sensitivity:
• Main (RCA): 3.3V RMS
• Output Impedance: 47 Ohms
• Frequency Response: 5Hz - 140KHz
• THD: <0.1%
• SNR: >100 dB
• Crosstalk: >85dB
• Supply Voltage: 9V - 16V DC
• Max Consumption: 290mA @ 12.6V
• Dimensions (L x W x H): 7.25" x 3.24" x 1"
• Weight: 0.68lb/ 310g
