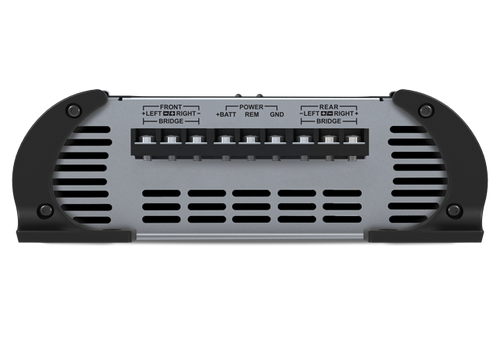

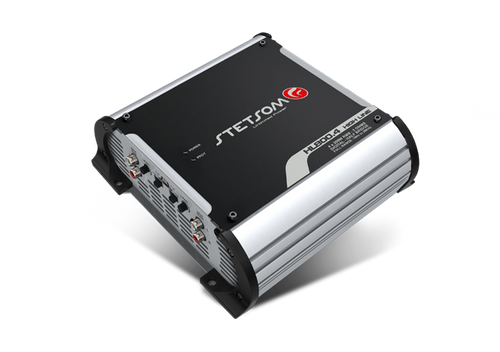

About: Stetsom HL800.4 High Line 4-Channel Amplifier 4 x 225 Watts RMS
The HL800.4, is a 900W RMS product with 4 CHANNELS OF 225W RMS and great installation versatility. It features independent front and rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation.
Specifications:
HL800.4 - 1 Ohm | HL800.4 - 2 Ohms | |
Number of Channels | 4 | 4 |
RMS Power at 1 Ohm 12.6V | 4 x 226W RMS (Stereo) | |
RMS Power at 2 Ohm 12.6V | 2 x 144W RMS (Stereo) | 4 x 225W RMS (Stereo) |
RMS Power at 4 Ohm 12.6V | 4 x 140W RMS (Stereo) | |
RMS Power at 1 Ohm 13.8V | 4 x 260W RMS (Stereo) | |
RMS Power at 2 Ohm 13.8V | 4 x 204W RMS (Stereo) | 4 x 260W RMS (Stereo) |
RMS Power at 4 Ohm 13.8V | 4 x 165W RMS (Stereo) | |
Power @ 12.6V Bridge 2 Ohms | 2 x 430W RMS | |
Power @ 13.8V Bridge 2 Ohms | 2 x 520W RMS | |
Power @ 12.6V Bridge 4 Ohms | 2 x 450W RMS | |
Power @ 13.8V Bridge 4 Ohms | 2 x 520W RMS | |
Supply Voltage | 9V ~ 15V DC | 9 ~ 15V |
Frequency Response | 20Hz ~ 22KHz | 10Hz ~26KHz |
Crossover Low Pass | 90Hz | 90 Hz |
Crossover High Pass | 90Hz | 90 Hz |
Signal to Noise | >90dB | > 90 dB |
Harmonic Distortion | >0,3 % THD | > 0,4 % THD |
Input Sensitivity | 200mV | 200mV |
Input Impedance | 15K OHMS | 14K OHMS |
Impedance Output | Stereo: 1 OHM / Bridge: 2 Ohms | Stereo 2 OHMS / Stereo 4 Ohms |
Consumption with Signal Musical | 52,5A | 44A |
Consumption with Signal Bass | 105A | 88A |
Dimensions (H x W x D) | 66 x 206 x 206 mm | 66 x 206 x 206 mm |
Weight | 1.70 Kg | 1.70 Kg |
