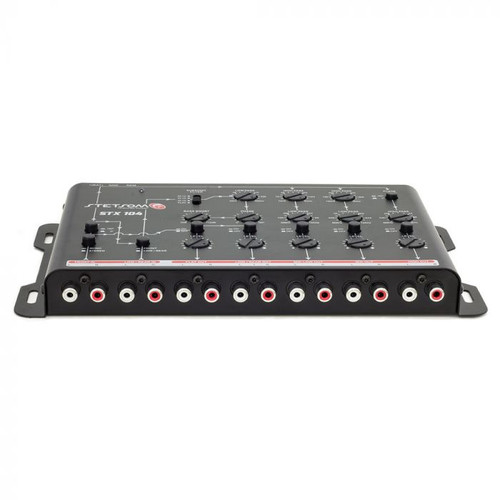

About: Stetsom STX104 5-Way Crossover
Designed to deliver high performance combined with sound fidelity, the Crossover Stetsom STX104 - 5 Way has high reliability with very low levels of noise and harmonic distortion, ideal for professional sound reinforcement. This electronic crossover has two input channels and five FLAT paths (stereo or mono) LOW / REAR (mono) MID LOW (stereo or mono) MID HIG (stereo or mono) and HIG (stereo or monaural), which provides a flat frequency response throughout its operating range. Output Low Pass has a filter (Subsonic) of 24dB / 8 specially designed to reject low frequencies not reproduced by woofers, thus increasing their efficiency and durability. As can be seen, the Crossover Stetsom STX104 - 5 Way is a high-performance equipment, widely used in professional sound reinforcement and sound championships.
Specifications:
| Via High | 400Hz - 10KHz (12 dB/8ª) |
| Via Mid | 150Hz - 12,5KHz (12 dB/8ª) |
| Via Low | 70Hz - 10KHz (12 dB/8ª) |
| Maximum Output Voltage | 9V RMS |
| Maximum Input Voltage | 4V RMS |
| Signal to Noise | >90dB |
| Input Impedance | 10K OHMS |
| Harmonic Distortion | < 0,02% THD |
| Channel Separation | > 80dB |
| Frequency Response | 20Hz - 200Khz |
| Supply Voltage | 10V - 16V DC |
| Current Consumption | 0,25A MAX |
| Impedance Output | 50 OHMS |
| Dimensions (H x W x D) mm | 33 x 264 x 160 mm |
| Weight Kg | 780g |
