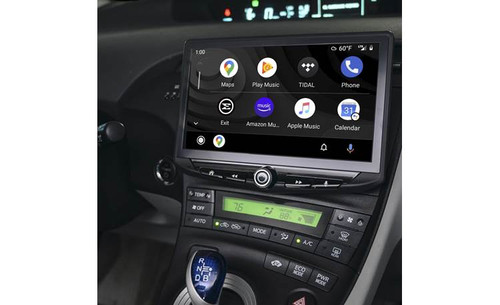

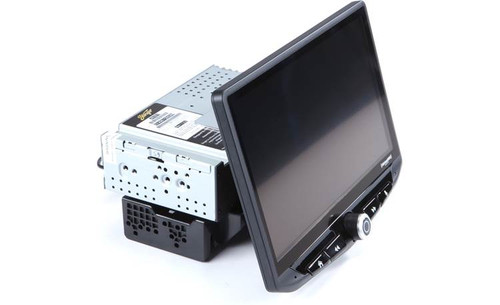

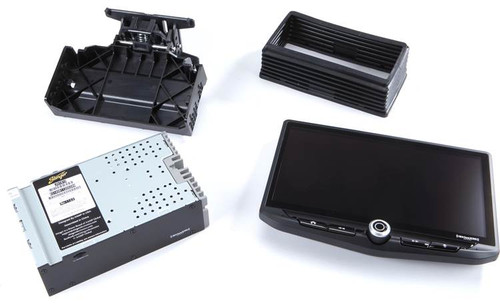

Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience, HEIGH10^® is designed to enhance screen size and infotainment features for drivers of any vehicle. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications––and in some cases, even where no installation dash kit is available. HEIGH10 features Anti-Glare and Anti-Reflection technology for best outdoor visibility. Personalize your display with customizable RGB illumination to match factory illumination, or create your own.

A Safer Ride

In a world where road accidents are commonplace, HEIGH10 can help reduce risk, increase safety, and protect your precious cargo. 4 camera inputs, selectable via camera mode display, turn signal for blind spot viewing, Front camera viewing, Rear camera viewing, or simply by adding a rocker switch for trailer or tow viewing. Rear camera audio input enables the driver to hear sound from an optional RV camera microphone. * Cameras are optional accessories and are not included with HEIGH10

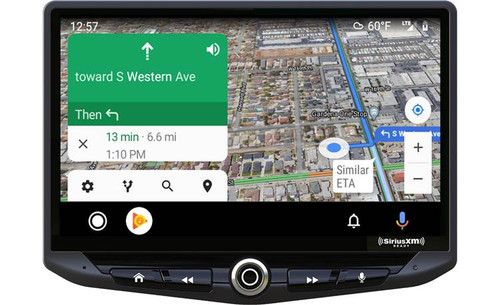

Optional Integrated Navigation

Optional on-board iGo navigation enhances your HEIGH10’s driving experience by placing 1000’s of built-in waypoints as well as landscape data at your fingertips. Detailed landmarks, lane guidance & complex road junctions are made easy to navigate from the intuitive easy to use touch panel control. No phone reception required! With iGo onboard navigation, you don’t have to rely on your phone for navigation. Out of cell range? No phone data? No problem, the on-board map database doesn’t require a data connection, so whether you are high in the mountains or out in the open desert you can be confident your route guidance is safe and accurate.

General Features:

• digital multimedia player with AM/FM tuner (does not play CDs or DVDs)
• 10.1" floating capacitive touchscreen display
• chassis fits double-DIN openings
• built-in Bluetooth for hands-free calling and music streaming

Smartphone Features:

• Android Auto and Apple CarPlay compatible
• built-in Android and iPhone control (see Details for info on compatibility with specific smartphones and apps)
• wireless streaming audio with aptX for better sound quality

Audio/Video Features:

• FLAC, WAV, MP3, WMA, AAC music playback via USB
• 15-band graphic EQ

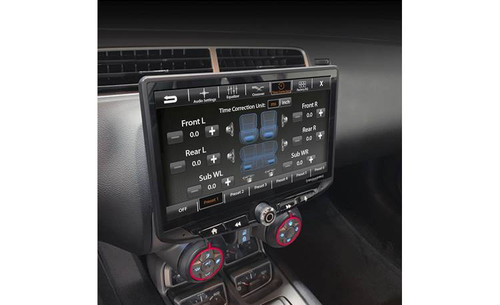

• time correction
• high- and low-pass crossovers

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• ready for iGO navigation system:
  • maps of the United States, Canada, Puerto Rico, and Virgin Islands
  • separate mapping microSD card purchase required

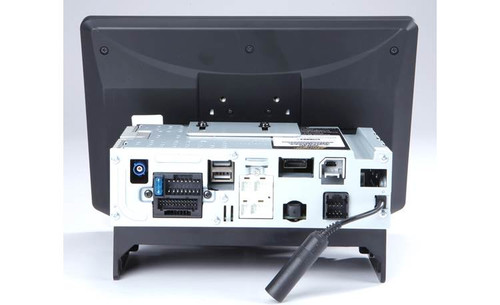

• inputs: HDMI input, two rear USB inputs, rear A/V input (RCA), backup camera input, and adapters for up to three more cameras
• outputs: two video outs (RCA) with shared audio output; optical digital output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information:

• Important Note — Monitor dimensions are 9.735" x 7.115". Before ordering, check for possible interference with your dash
• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (25 watts RMS/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
